Sunroof Module Assembly: Installation

  1. Raise sunroof module assembly and guide it carefully into position.

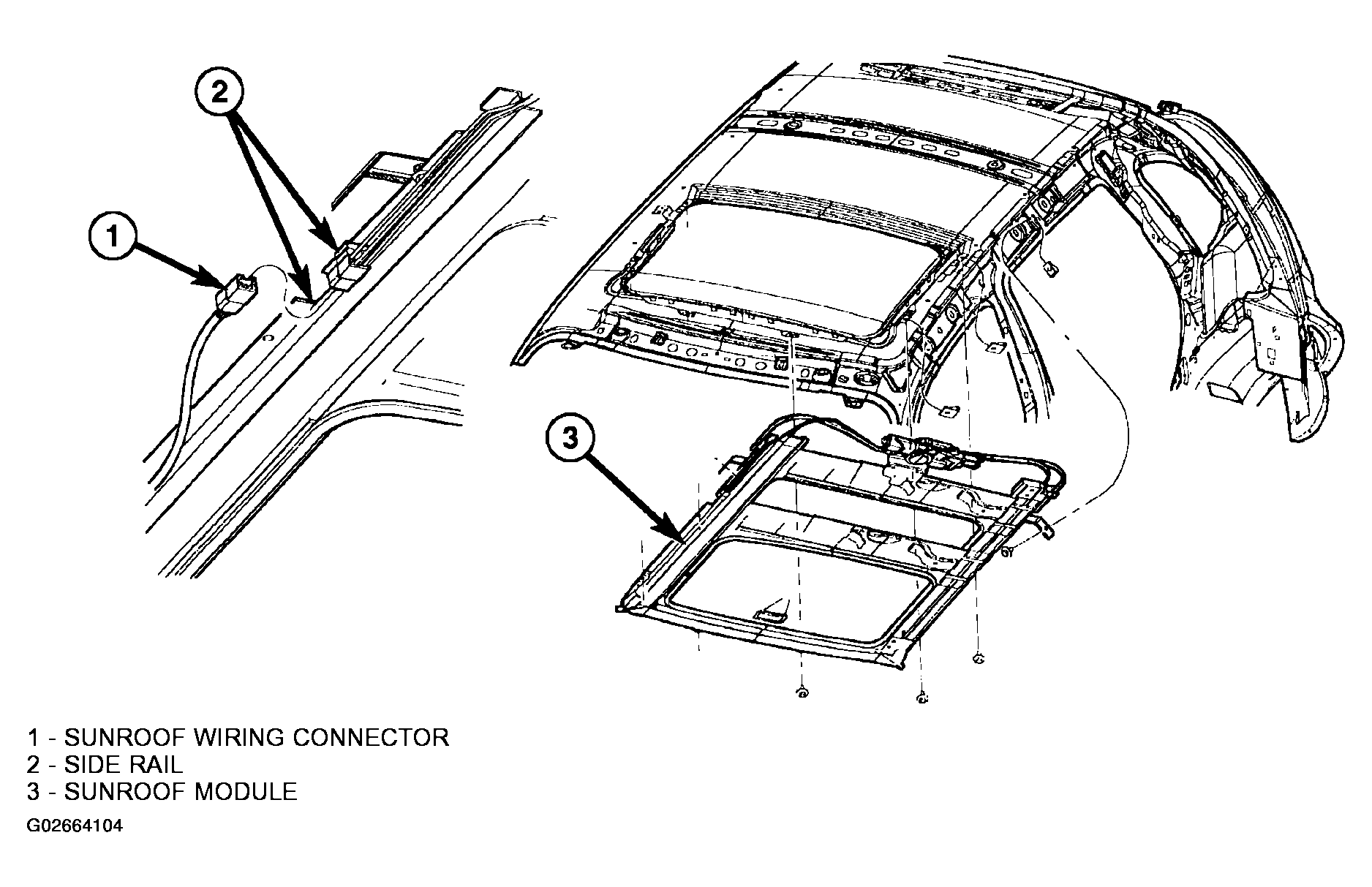

  2. While supporting the sunroof module tighten the six module attaching screws (Figure ). Tighten to 9.5 N.m (84 in. lbs.) torque.
  3. Install the two bracket screws at the rear of the module. Tighten to 9.5 N.m (84 in. lbs.) torque.
  4. Connect the drain tubes to the sunroof.
  5. Connect wire harness.
  6. Install headliner (Refer to BODY/INTERIOR/HEADLINER - INSTALLATION ).
  7. Install sunroof control switch (Refer to SUNROOF CONTROL SWITCH  ).
  8. Connect battery negative cable.
  9. Test sunroof operation, adjust as necessary (Refer to SUNROOF GLASS PANEL ADJUSTMENT  ).
  10. Install sunroof opening trim lace position (Refer to OPENING TRIM LACE  ).
