Transponder Key: Description

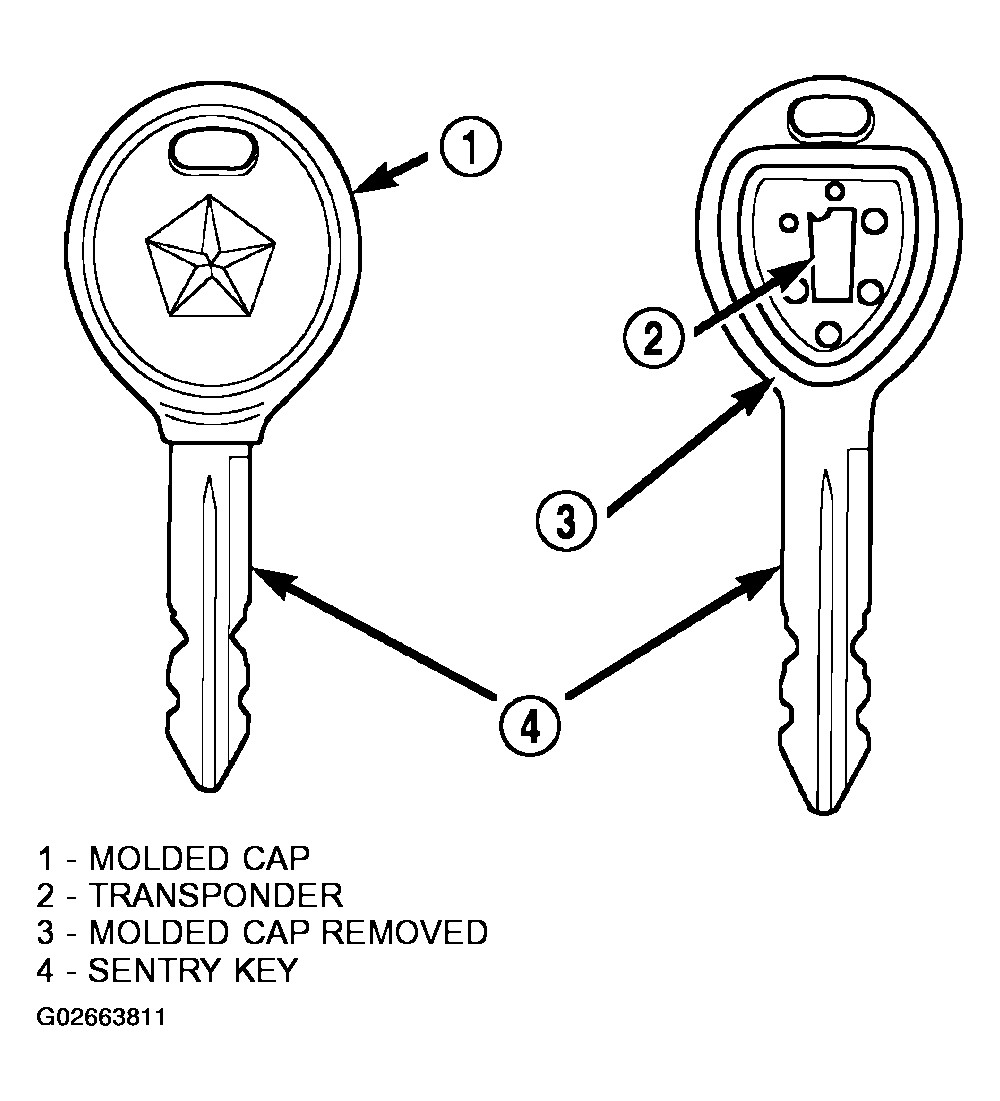

The Sentry Key Immobilizer System (SKIS) uses a transponder chip that is integral to each ignition key (Figure ) to communicate with the Sentry Key Immobilizer Module (SKIM). Ignition keys are supplied with the vehicle when it is shipped from the factory. The transponder chip is undermolded within the head of the key. This undermold is hidden beneath an overmolded rubber cap.
