Power Distribution: Relay: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove cover from Power Distribution Center (PDC).
  3. Using special tool C-4817, grip the relay by the sides and pull upward with an even effort (Fig 1 ).

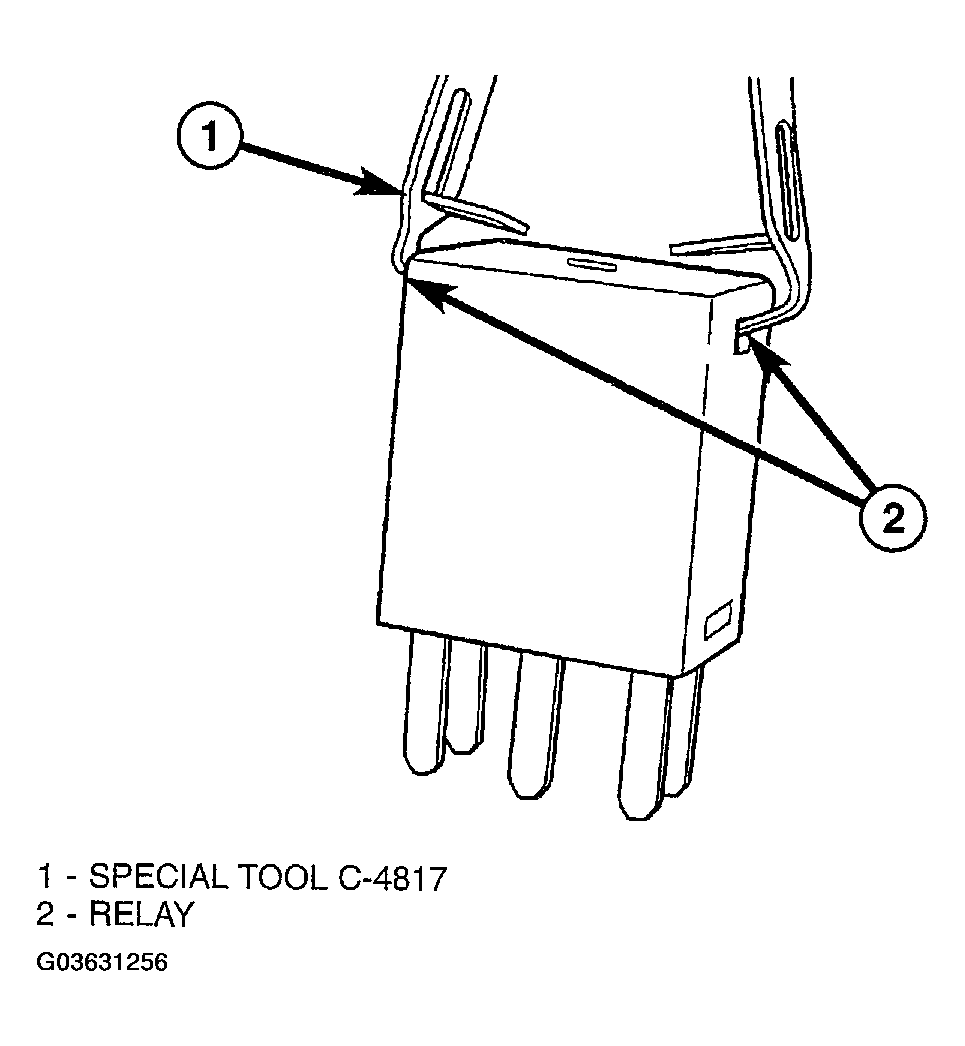

    Fig 1: Removing Relay
    G03631256Courtesy of DAIMLERCHRYSLER CORP.
