Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

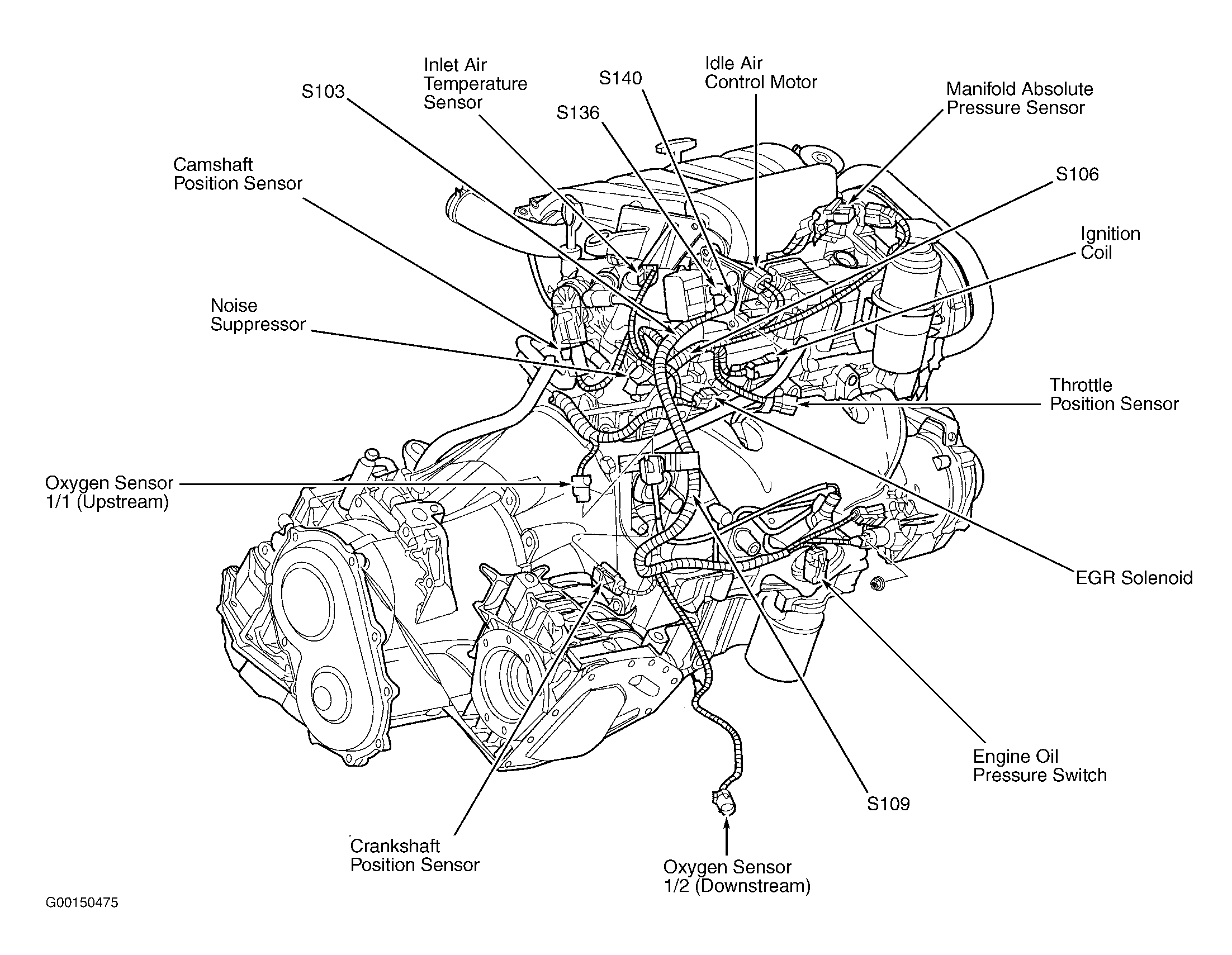

Fig 1: Right Side Of Engine/Transaxle (2.4L Non-Turbo)

Courtesy of DAIMLERCHRYSLER CORP.

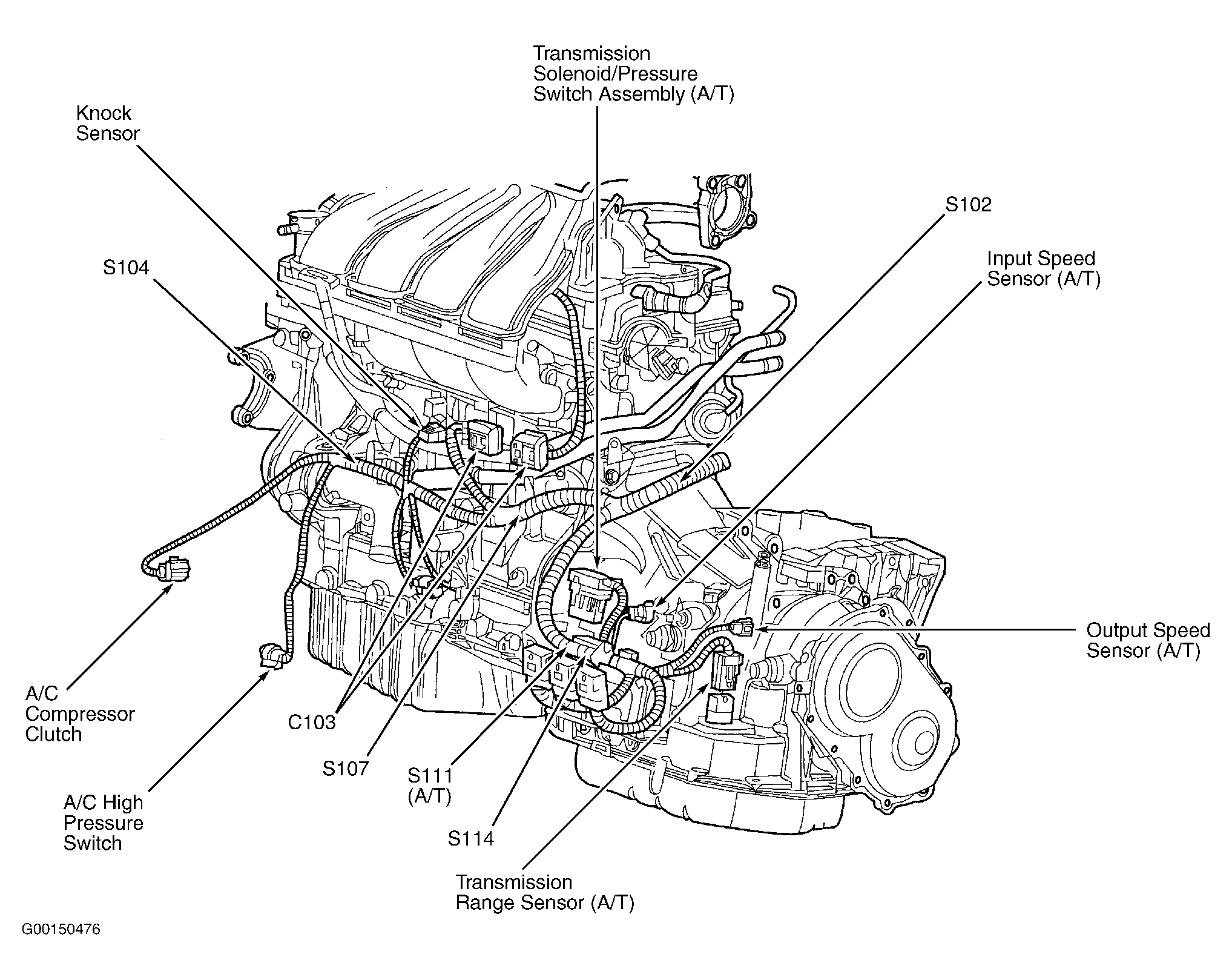

Fig 2: Left Side Of Engine/Transaxle (2.4L Non-Turbo)

Courtesy of DAIMLERCHRYSLER CORP.

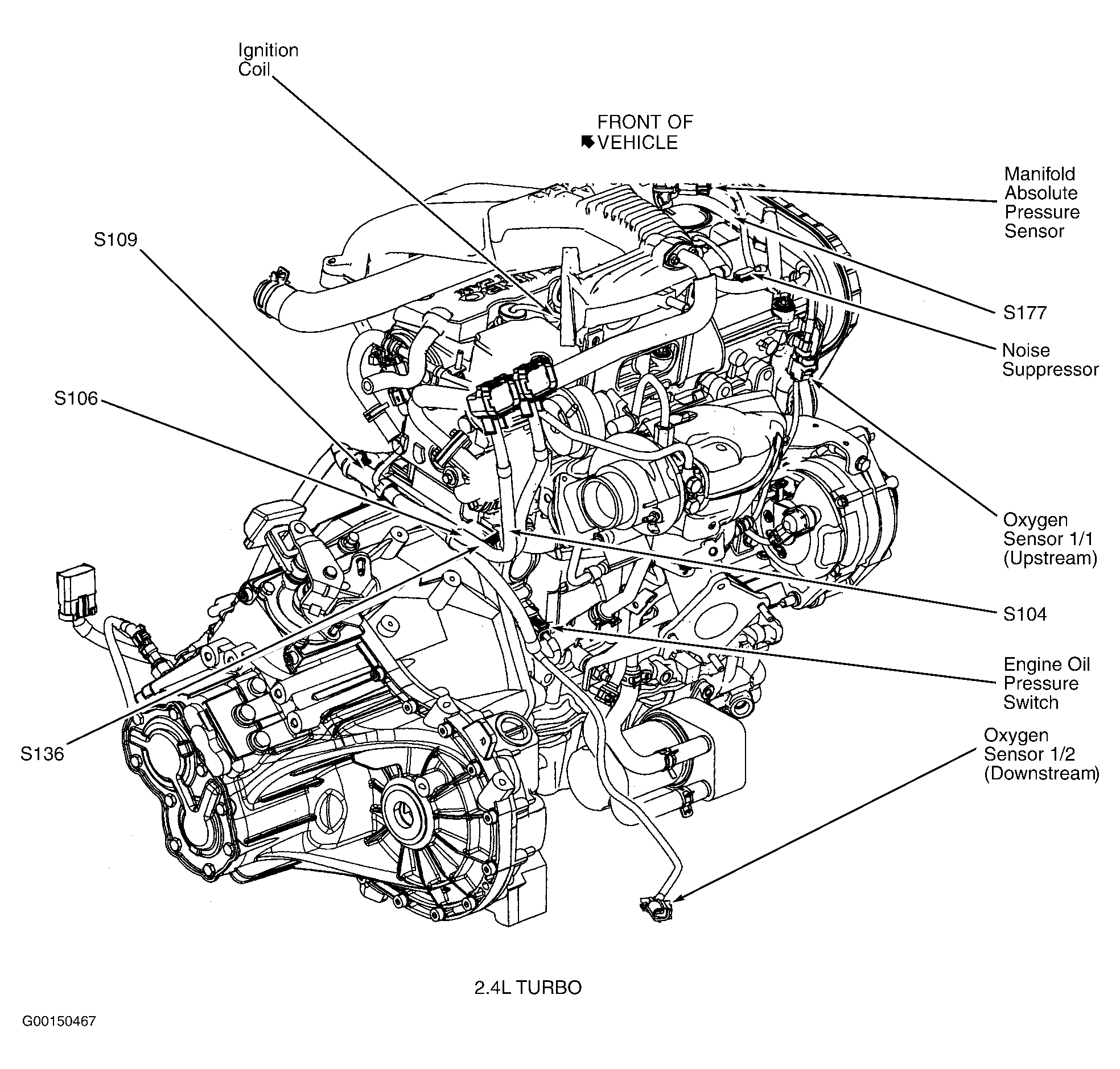

Fig 3: Right Side Of Engine/Transaxle (2.4L Turbo)

Courtesy of DAIMLERCHRYSLER CORP.

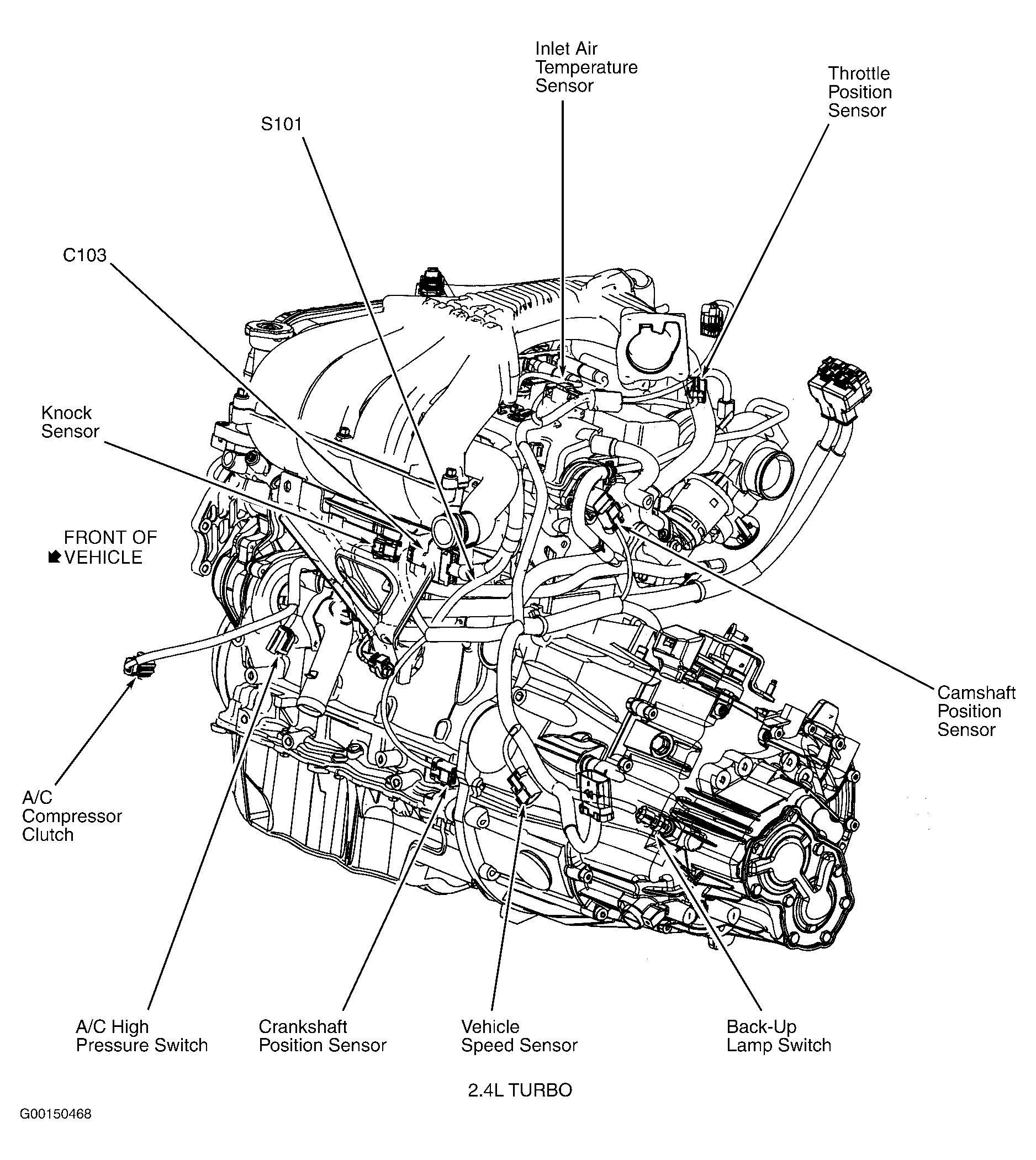

Fig 4: Left Side Of Engine/Transaxle (2.4L Turbo)

Courtesy of DAIMLERCHRYSLER CORP.

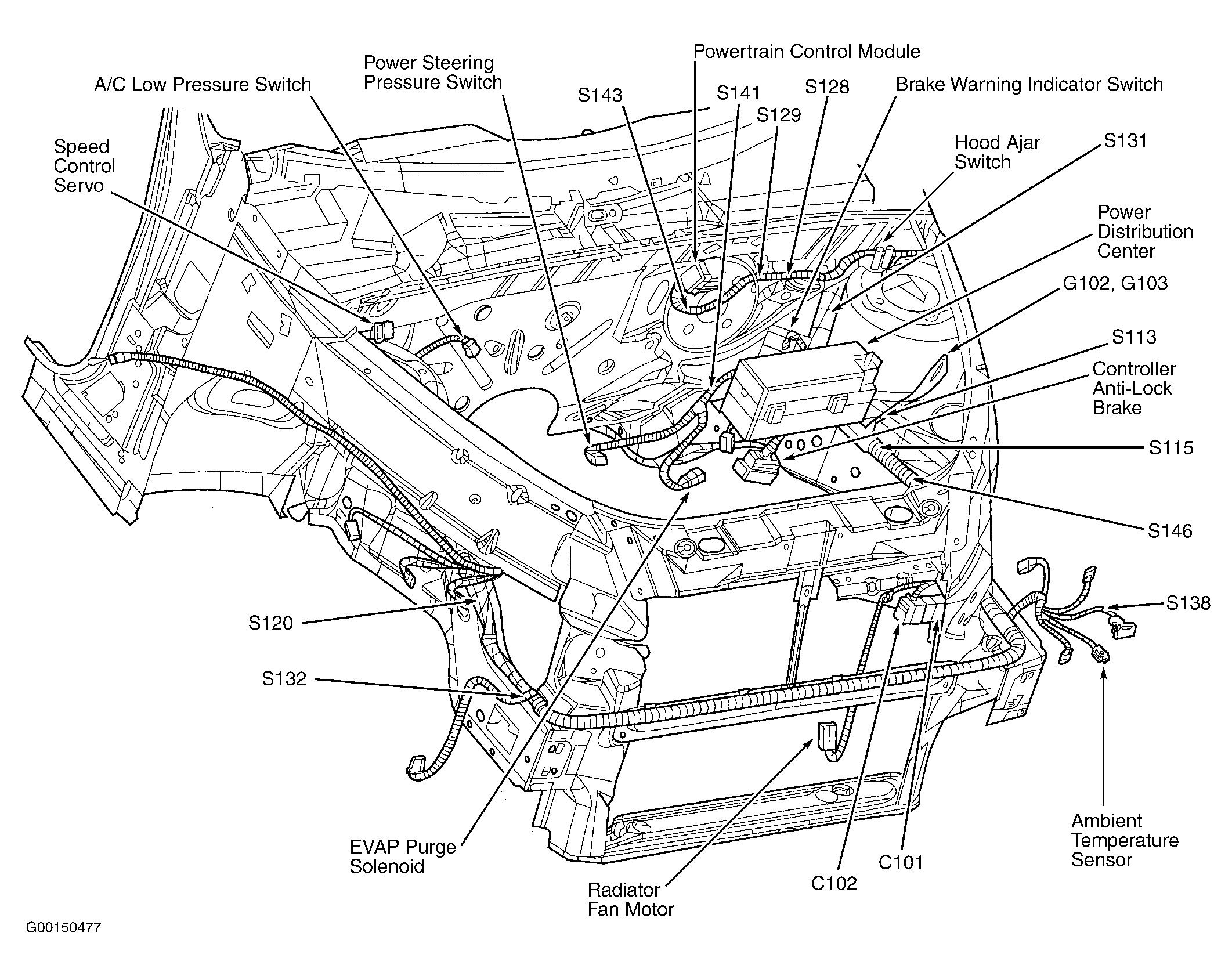

Fig 5: Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

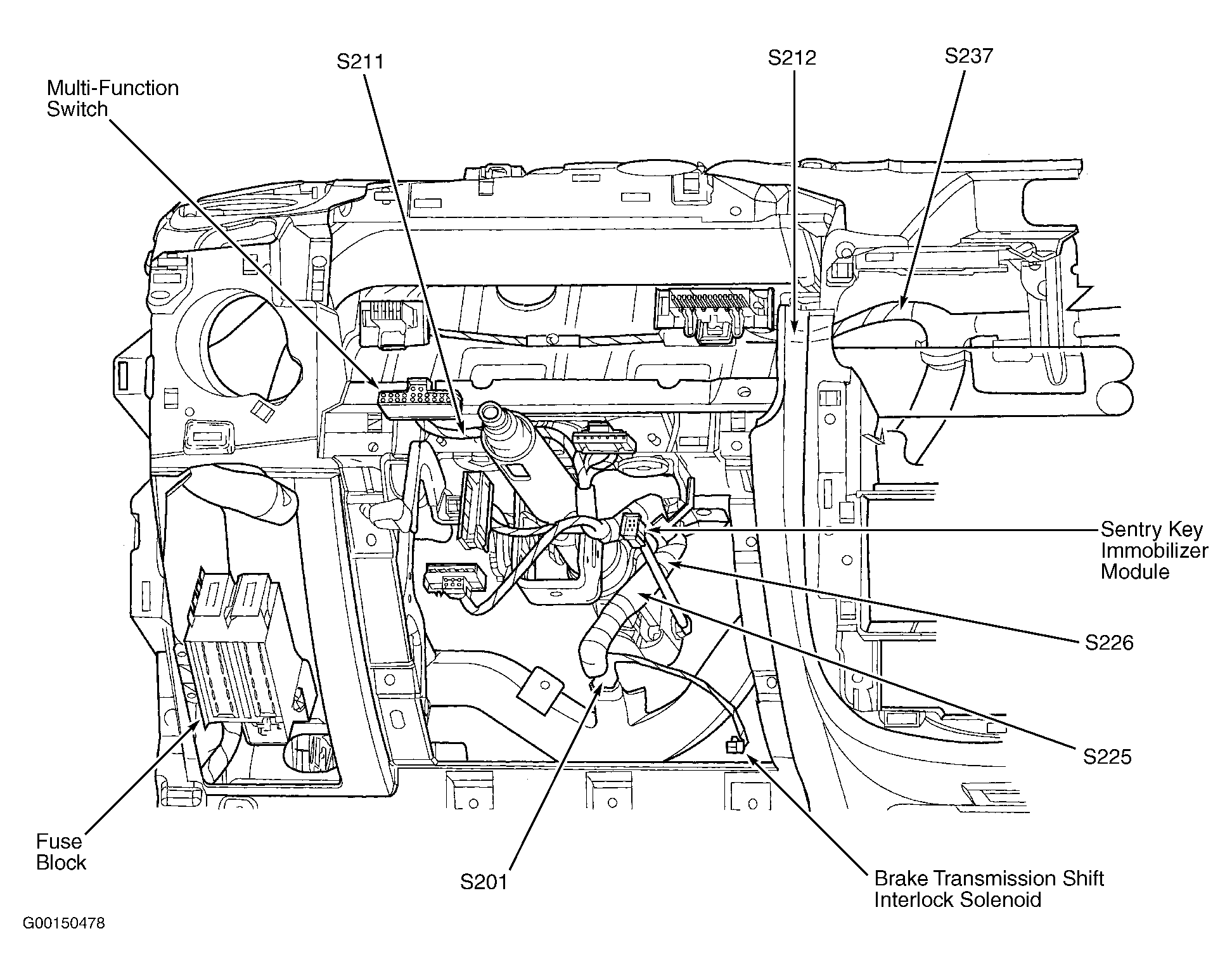

Fig 6: Left Side Of Dash

Courtesy of DAIMLERCHRYSLER CORP.

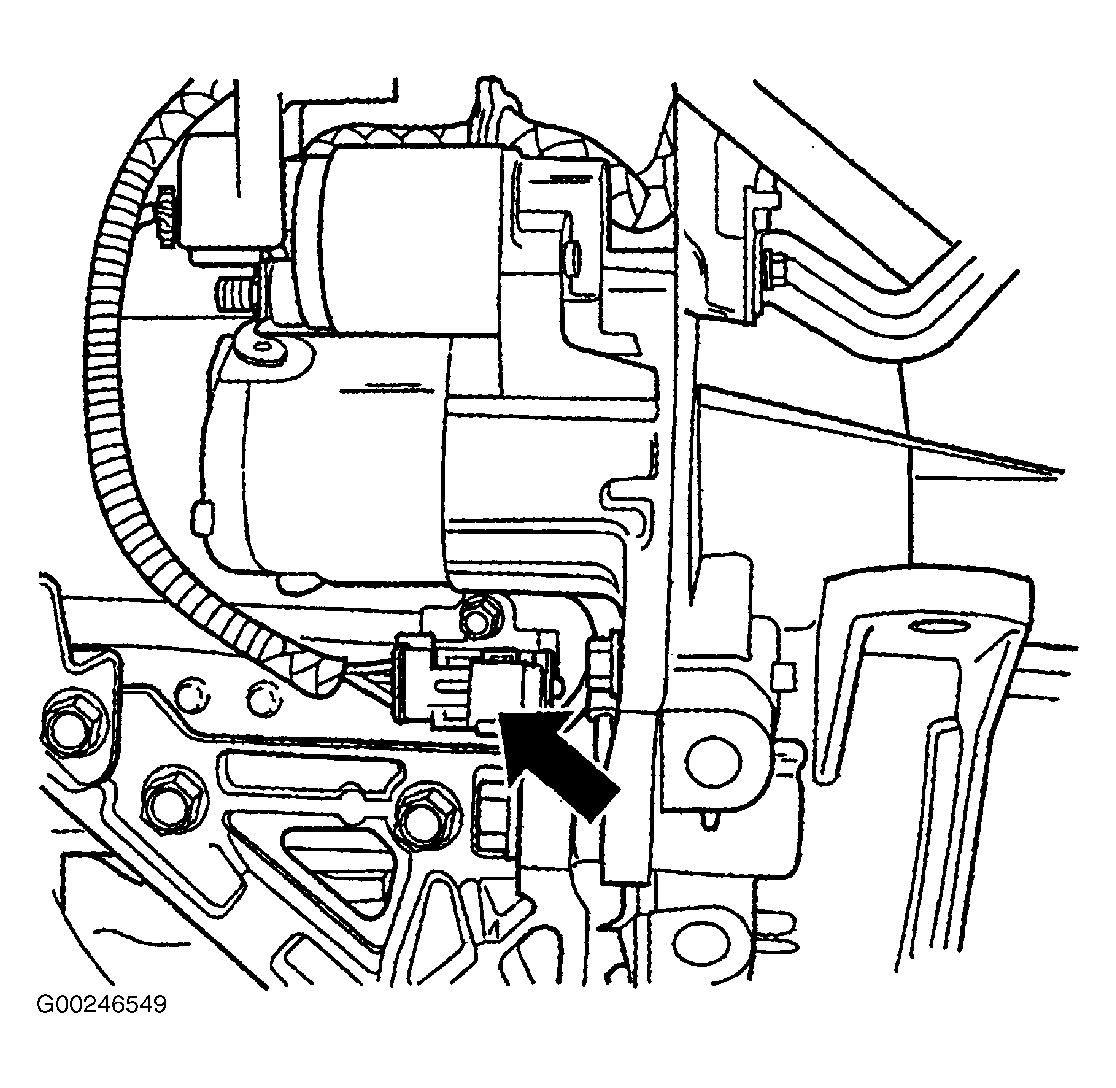

Fig 7: Locating Crankshaft Position Sensor (2.4L Non-Turbo)

Courtesy of CHRYSLER GROUP, LLC

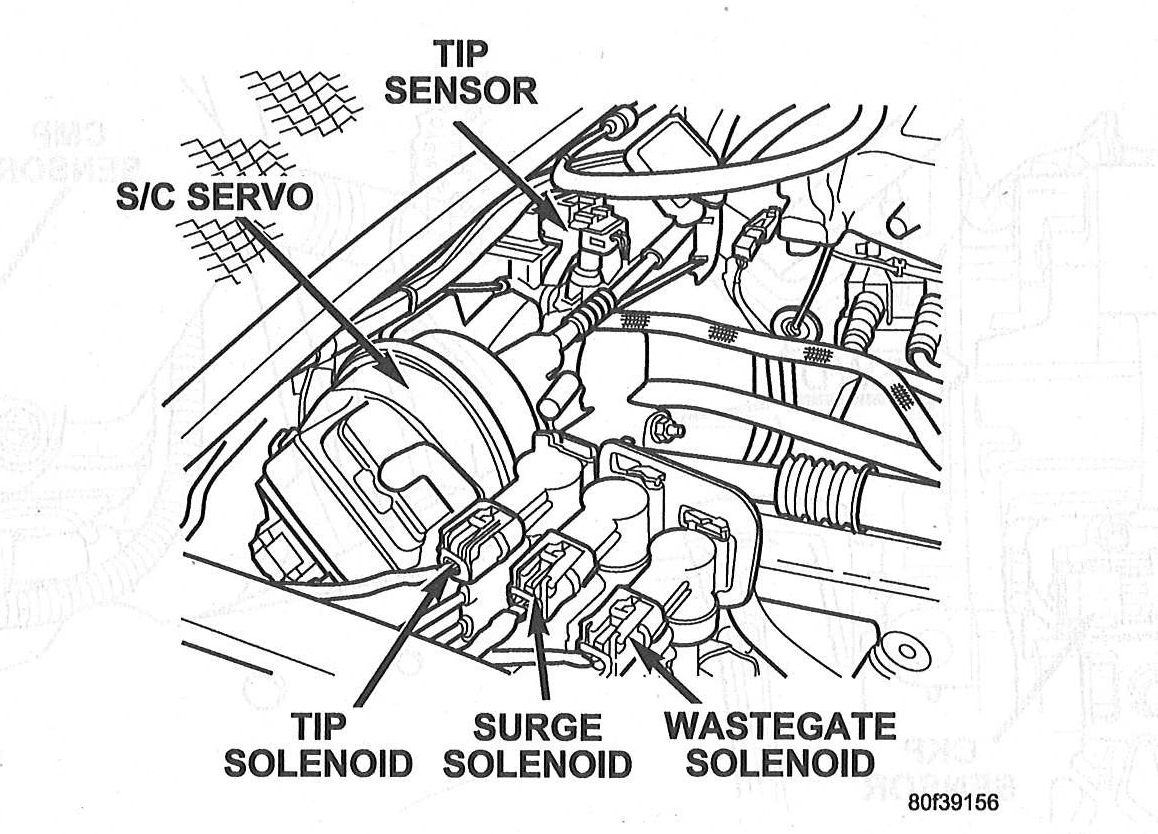

Fig 8: Locating TIP Sensor, TIP Solenoid, Surge Solenoid & Wastegate Solenoid (2.4L Turbo)

Courtesy of CHRYSLER GROUP, LLC

Fig 9: Fuse Block

Courtesy of DAIMLERCHRYSLER CORP.

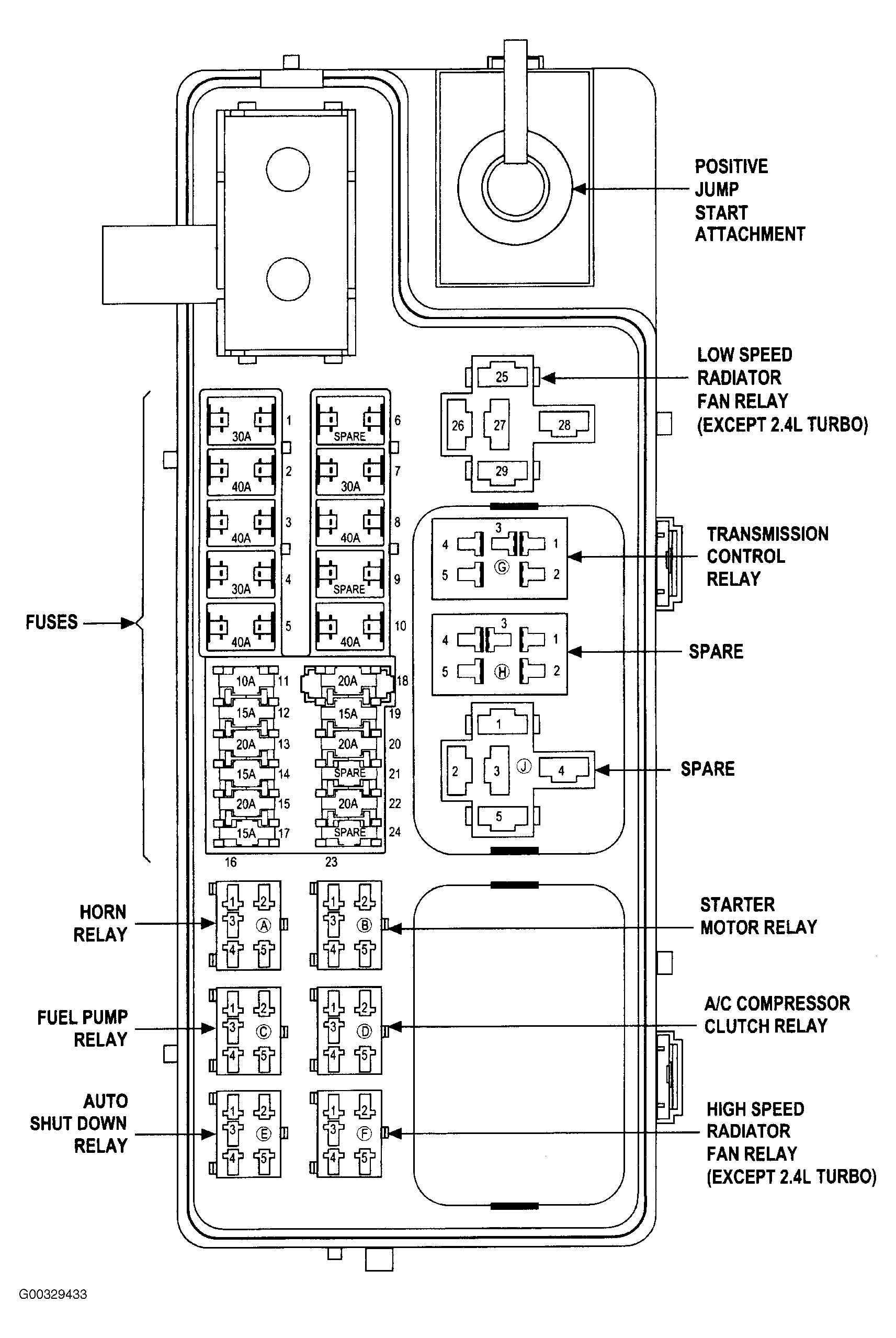

Fig 10: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
