Cluster Bezel: Installation

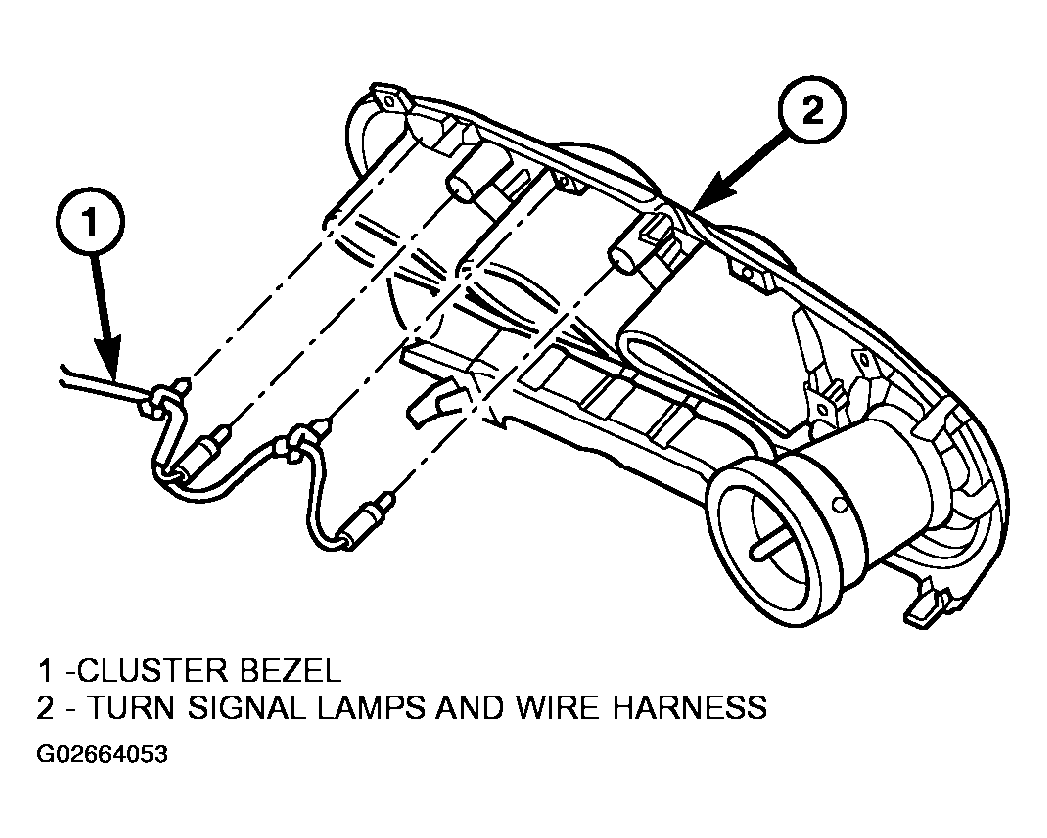

  1. Insert turn signal lamps into the instrument cluster bezel (Figure ).
  2. Position instrument cluster bezel in position making sure all fasteners are lined up with their respective slots.

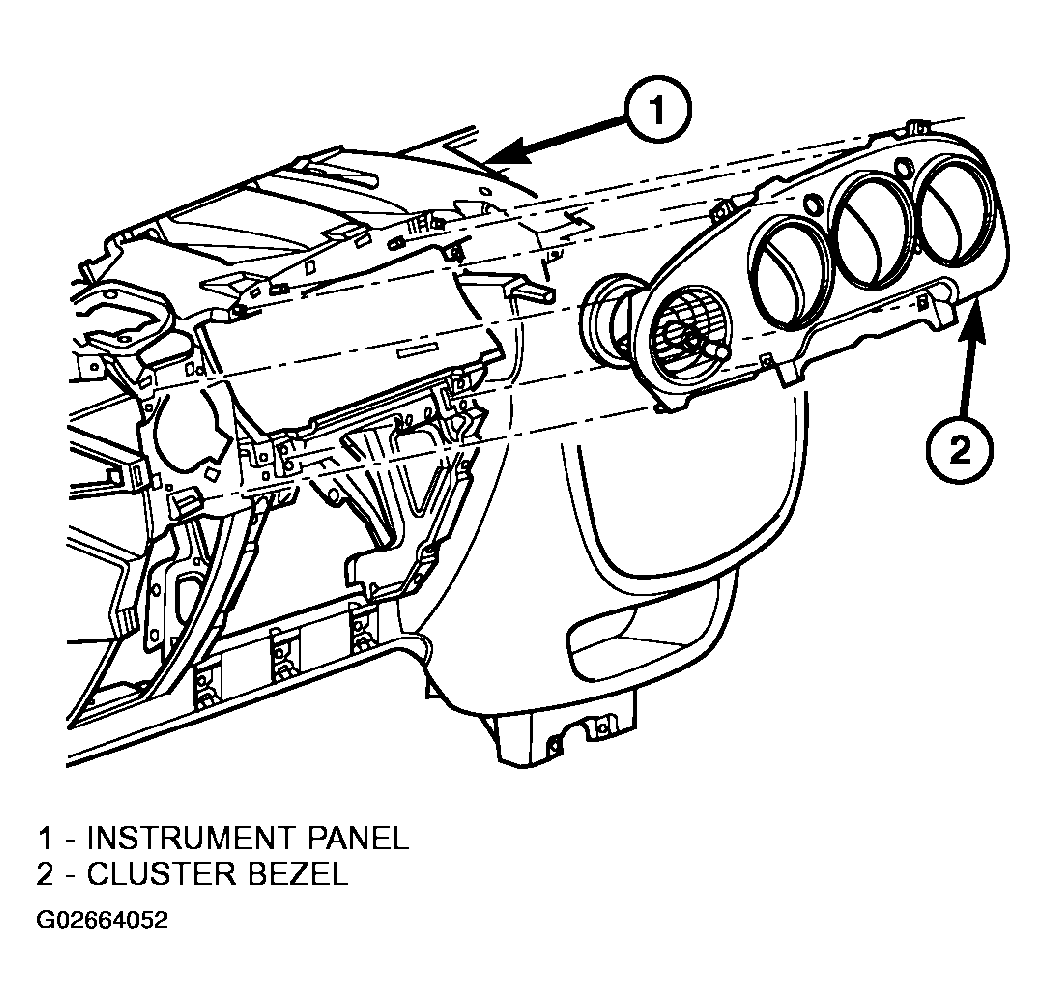

  3. Gently, but forcefully, snap the instrument cluster bezel into place (Figure ).
  4. Install the left instrument panel end cap. (Refer to INSTRUMENT PANEL END CAP  ).
  5. Install the steering column cover. (Refer to STEERING COLUMN OPENING COVER  ).
  6. Install the instrument panel top cover. (Refer to INSTRUMENT PANEL TOP COVER  ).
  7. Connect the battery negative cable (Figure ).
  8. Close the hood.
  9. Verify vehicle and system operation.
