Connector End Views
›
Identifying Overhead Console Module - Black 12 Way Connector End View
Identifying Overhead Console Module - Black 12 Way Connector End View

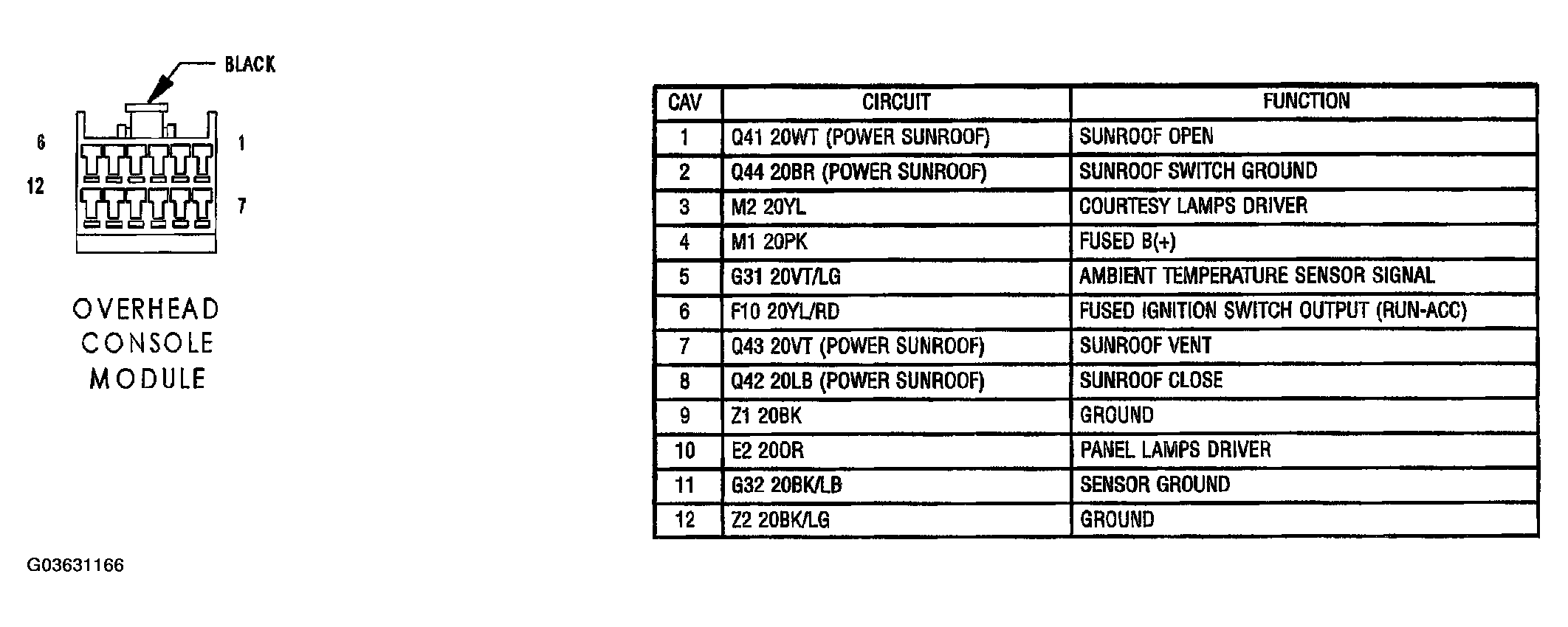

Fig 1: Identifying Overhead Console Module - Black 12 Way Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
