CMP Sensor Locations (Non-Turbo)

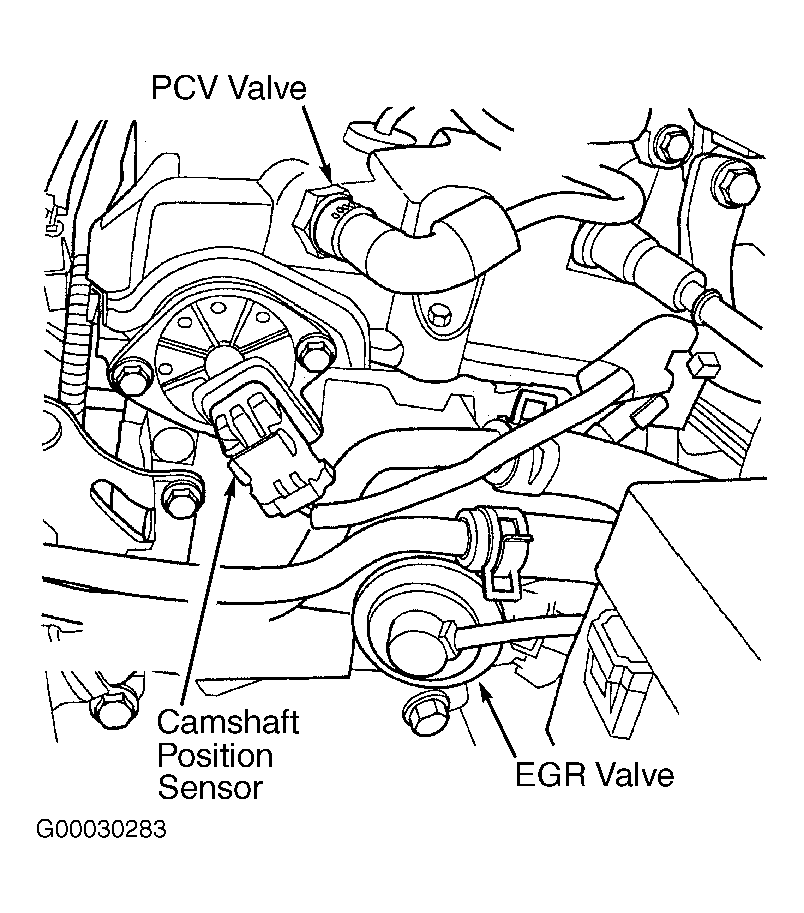

Fig 1: Locating CMP Sensor (Non-Turbo)
G00030283Courtesy of DAIMLERCHRYSLER CORPORATION
