Oxygen Sensors Locations

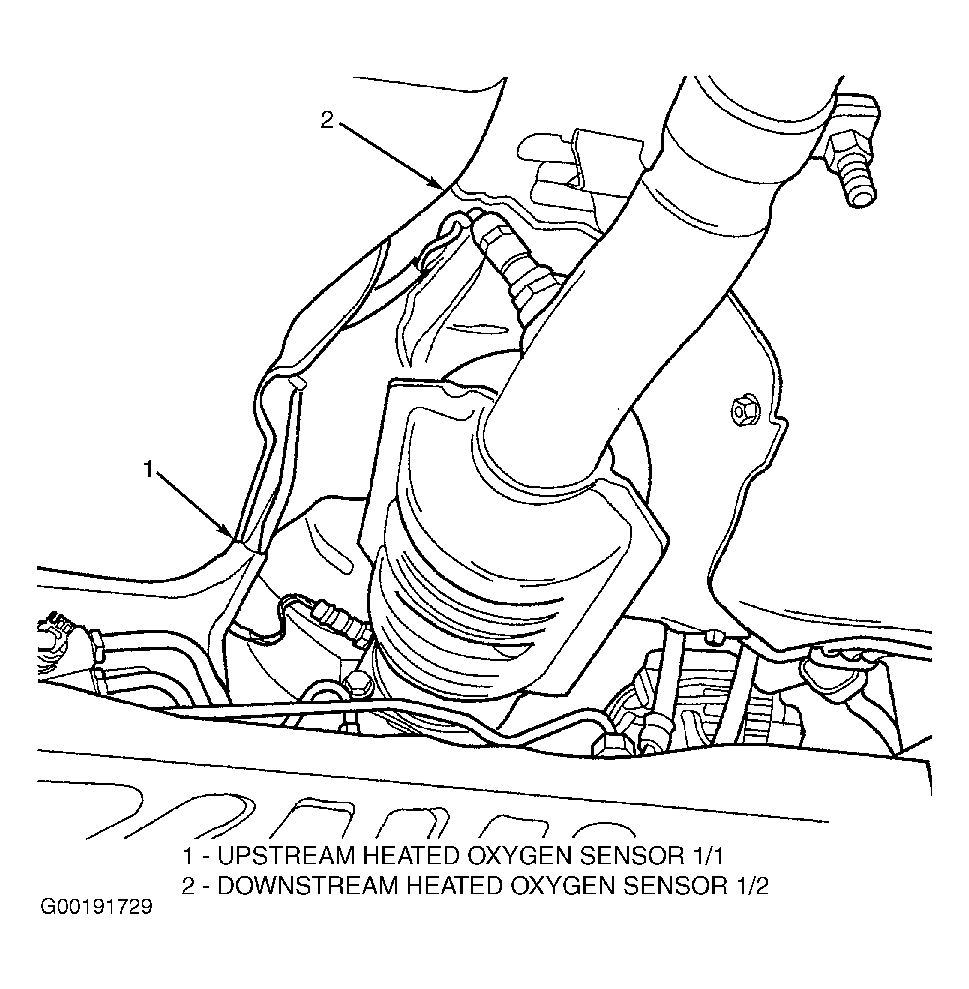

Fig 1: Locating 1/1 & 1/2 Oxygen Sensors
G00191729Courtesy of CHRYSLER CORP.

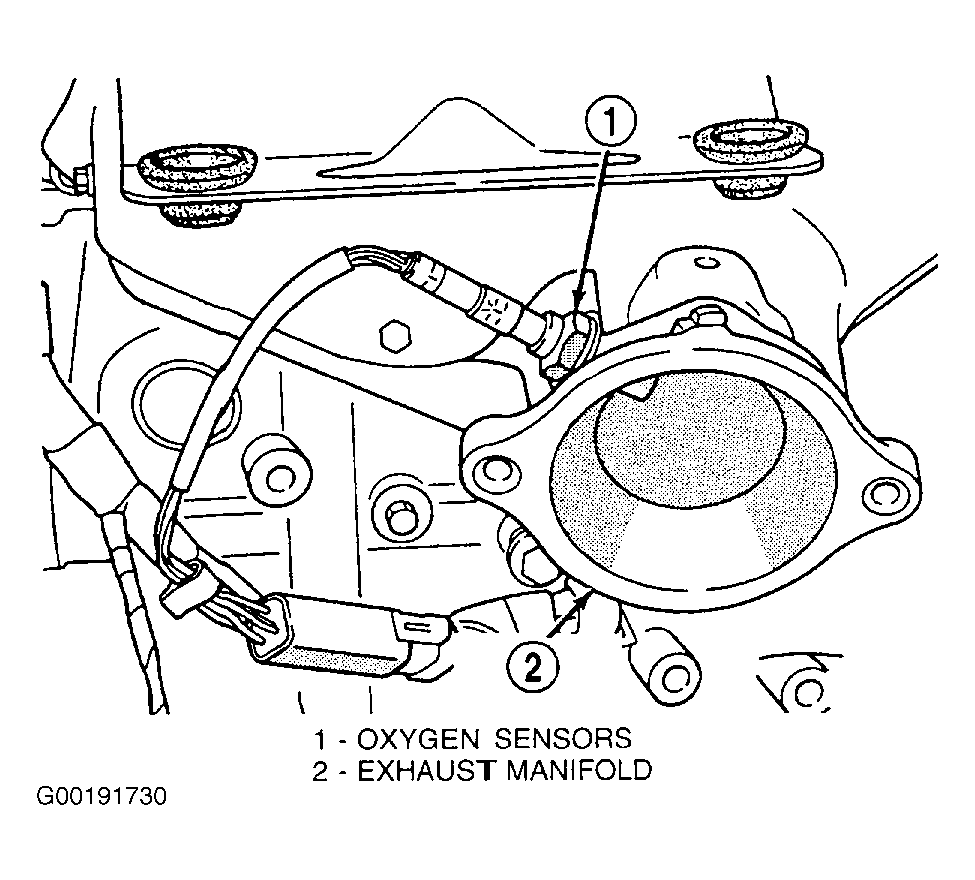

Fig 2: Locating 1/1 Oxygen Sensor
G00191730Courtesy of CHRYSLER CORP.
