A/C Pressure Transducer Harness Connector End View (Turbo)
A/C Pressure Transducer Harness Connector End View (Turbo)

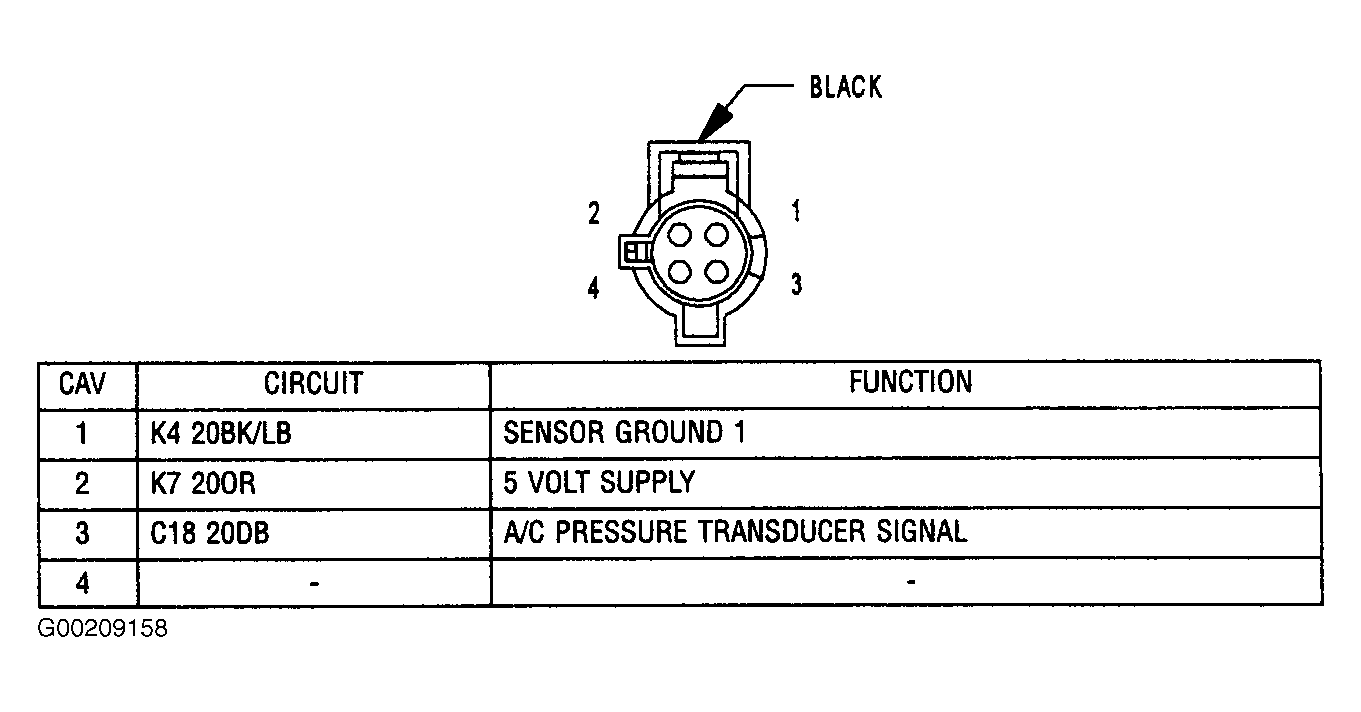

Fig 1: Identifying A/C Pressure Transducer Harness Connector Terminals (Turbo)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
