AUTOSTICK Switch Harness Connector End View
AUTOSTICK Switch Harness Connector End View

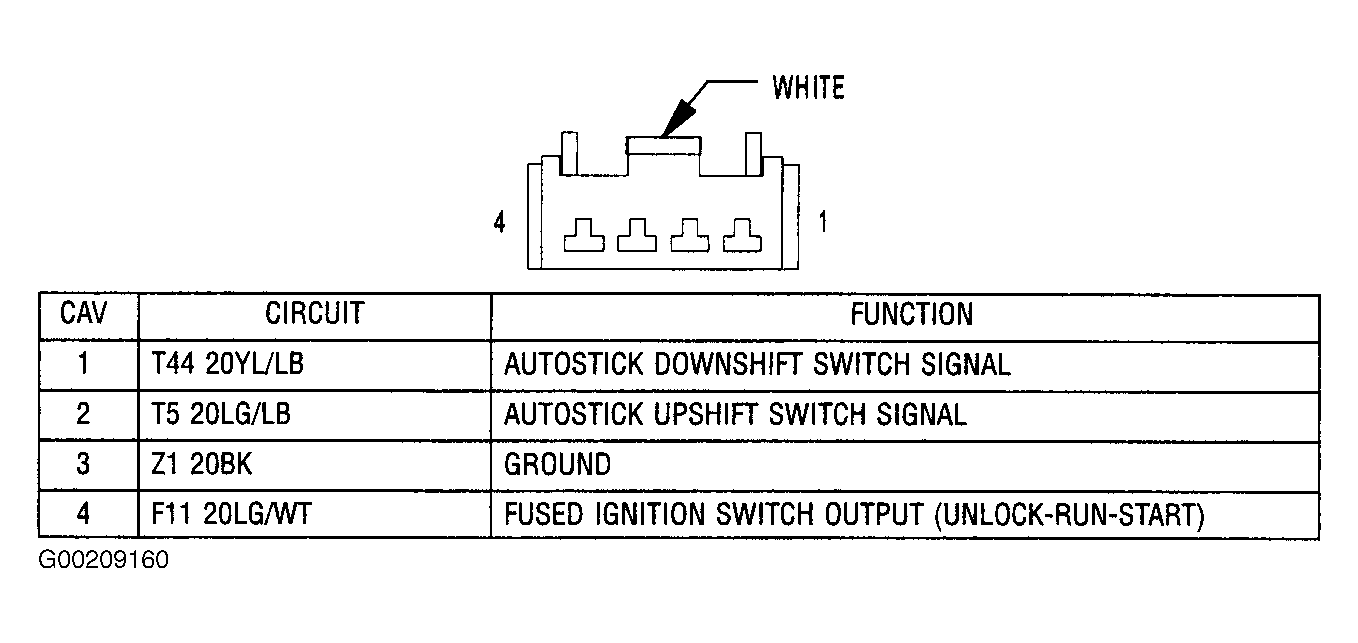

Fig 1: Identifying Autostick Switch Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
