CLOCKSPRING Harness Connector End View

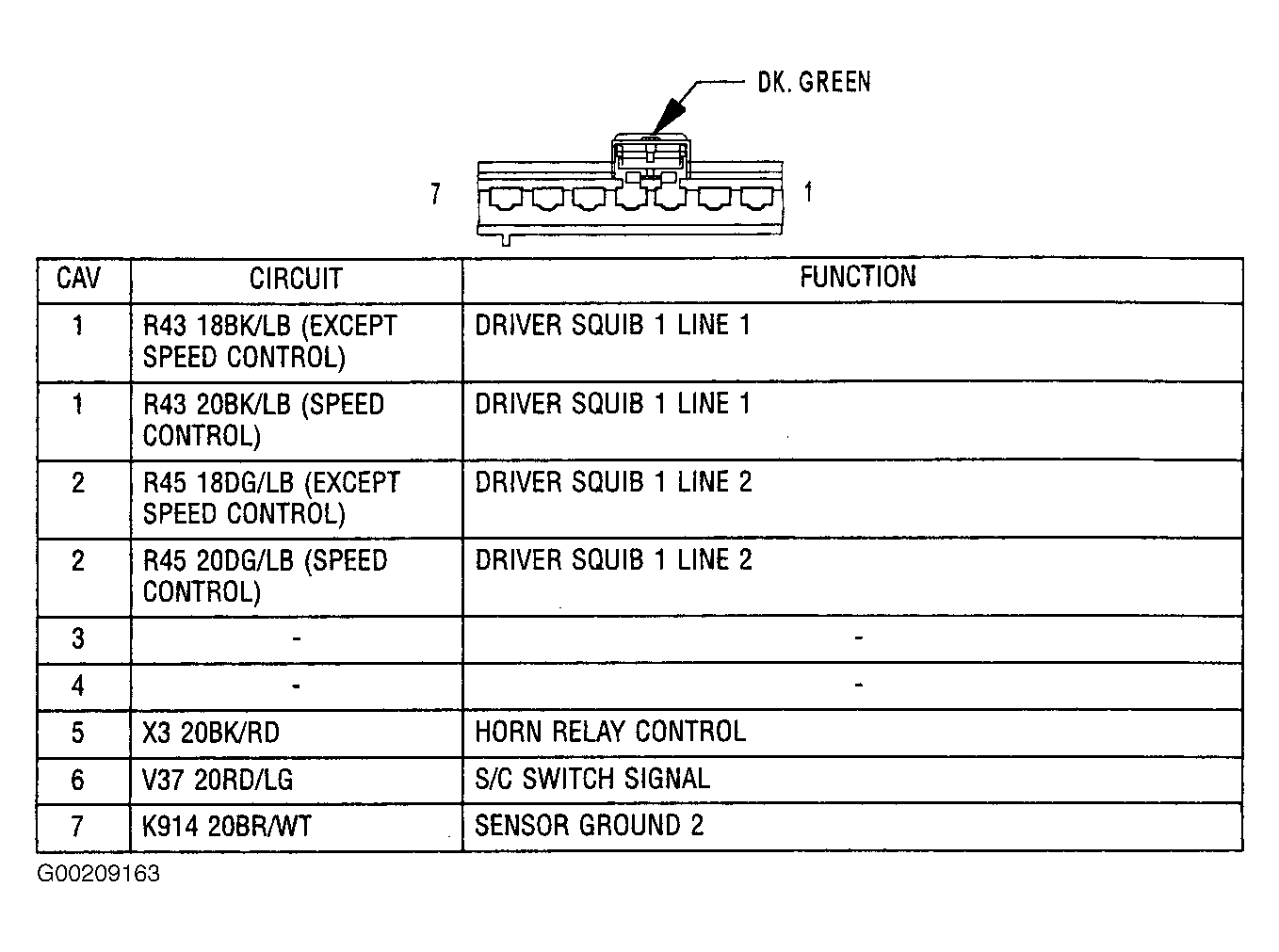

Fig 1: Identifying Clockspring Harness Connector Terminals
G00209163Courtesy of CHRYSLER CORP.
