Data Link Harness Connector End View
Data Link Harness Connector End View

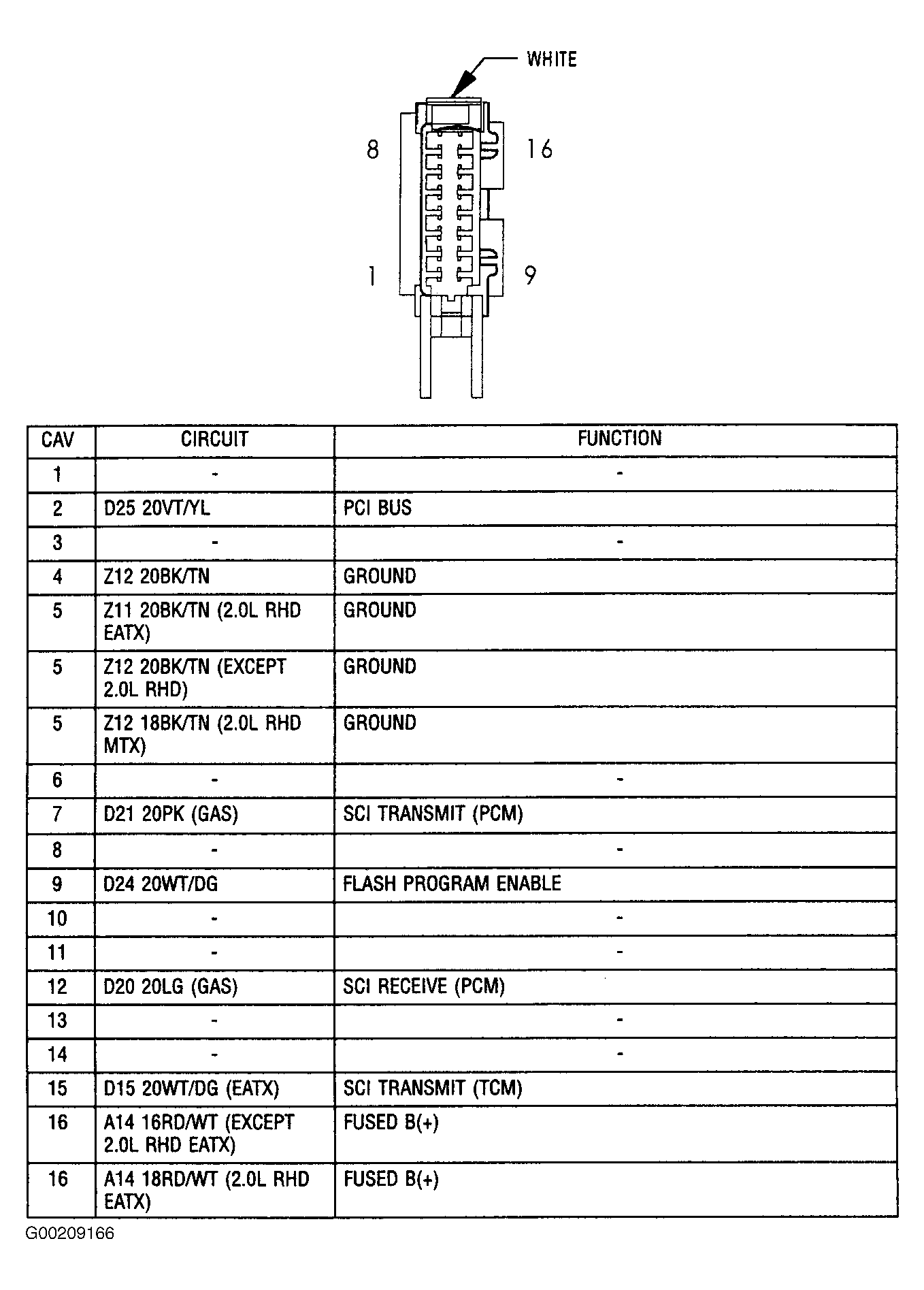

Fig 1: Identifying Data Link Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
