Engine Controls - Self-Diagnostics
›
Connector Identification
›
Instrument Cluster Harness Connector End View
Instrument Cluster Harness Connector End View

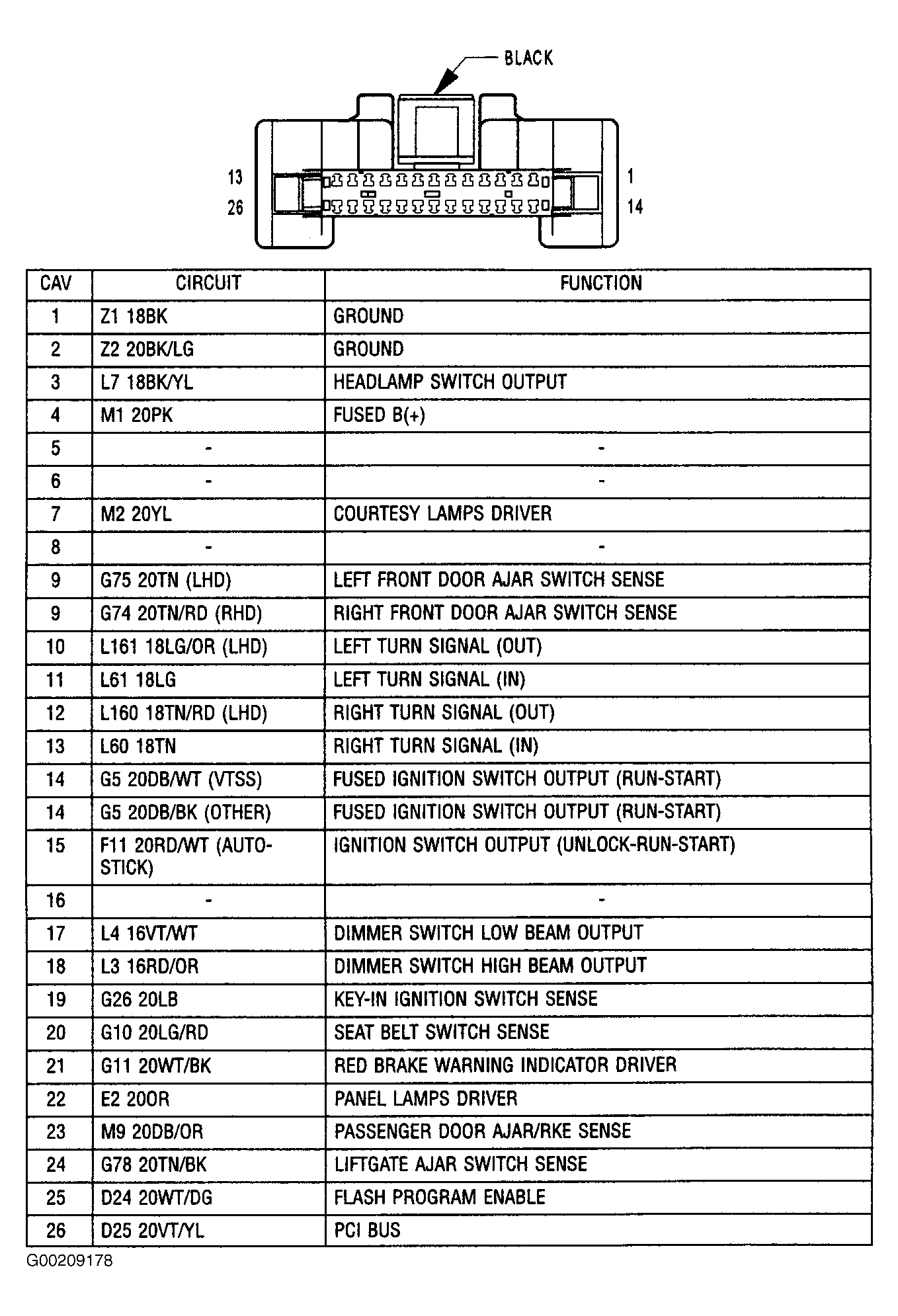

Fig 1: Identifying Instrument Cluster (C1) Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
