Manifold Absolute Pressure Sensor Harness Connector End View
Manifold Absolute Pressure Sensor Harness Connector End View

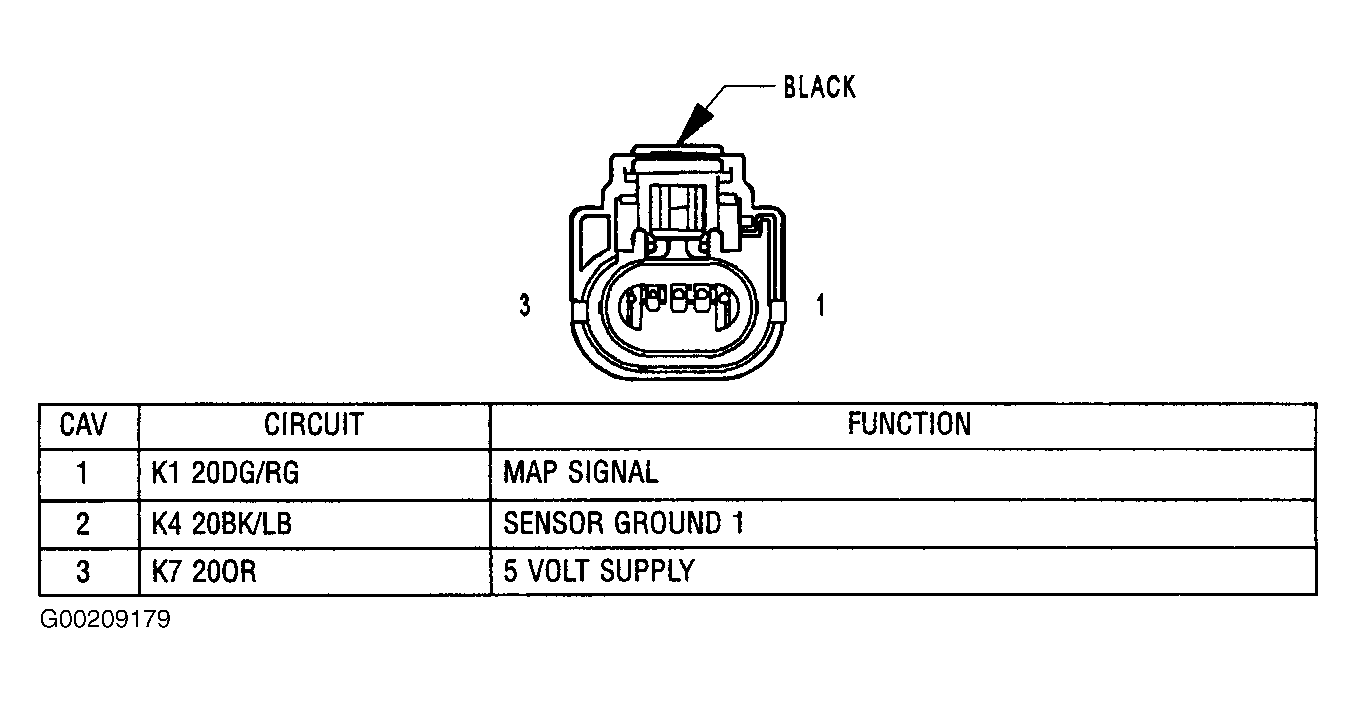

Fig 1: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
