Connector Identification
›
Power Distribution Center Relay Cavities & Circuits
Power Distribution Center Relay Cavities & Circuits

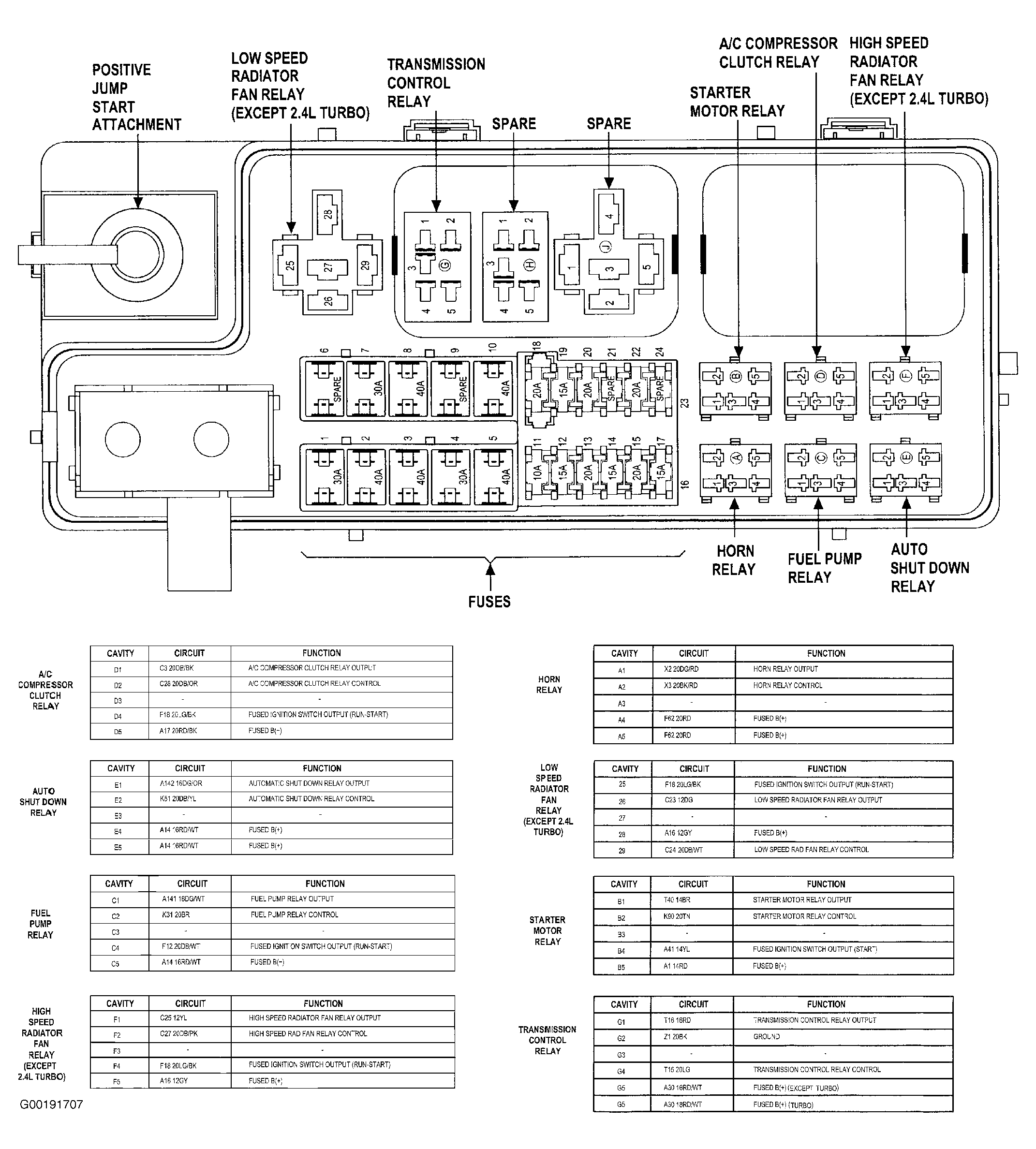

Fig 1: Identifying Power Distribution Center Relay Cavities & Circuits
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
