Throttle Position Sensor Harness Connector End View (Turbo)

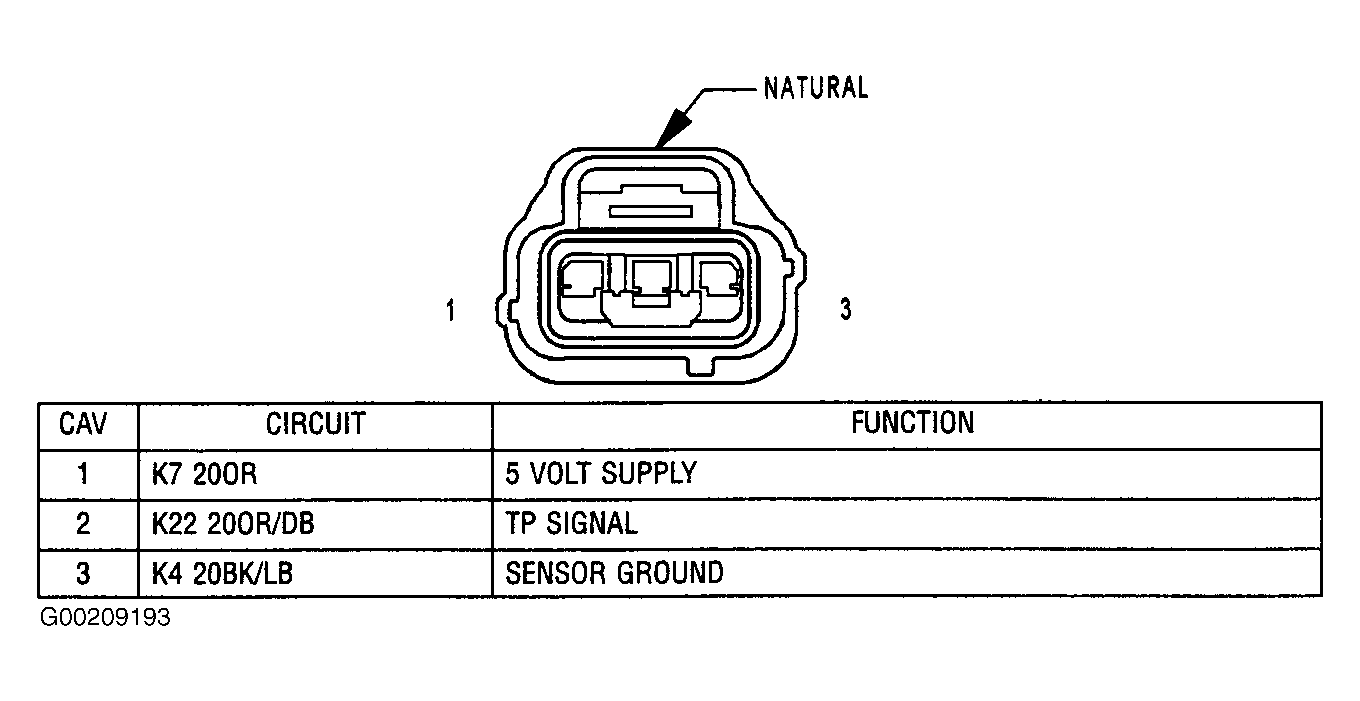

Fig 1: Identifying Throttle Position Sensor Harness Connector Terminals (Turbo)
G00209193Courtesy of CHRYSLER CORP.
