Engine Controls - Self-Diagnostics
›
Connector Identification
›
Transmission Range Sensor Harness Connector End View
Transmission Range Sensor Harness Connector End View

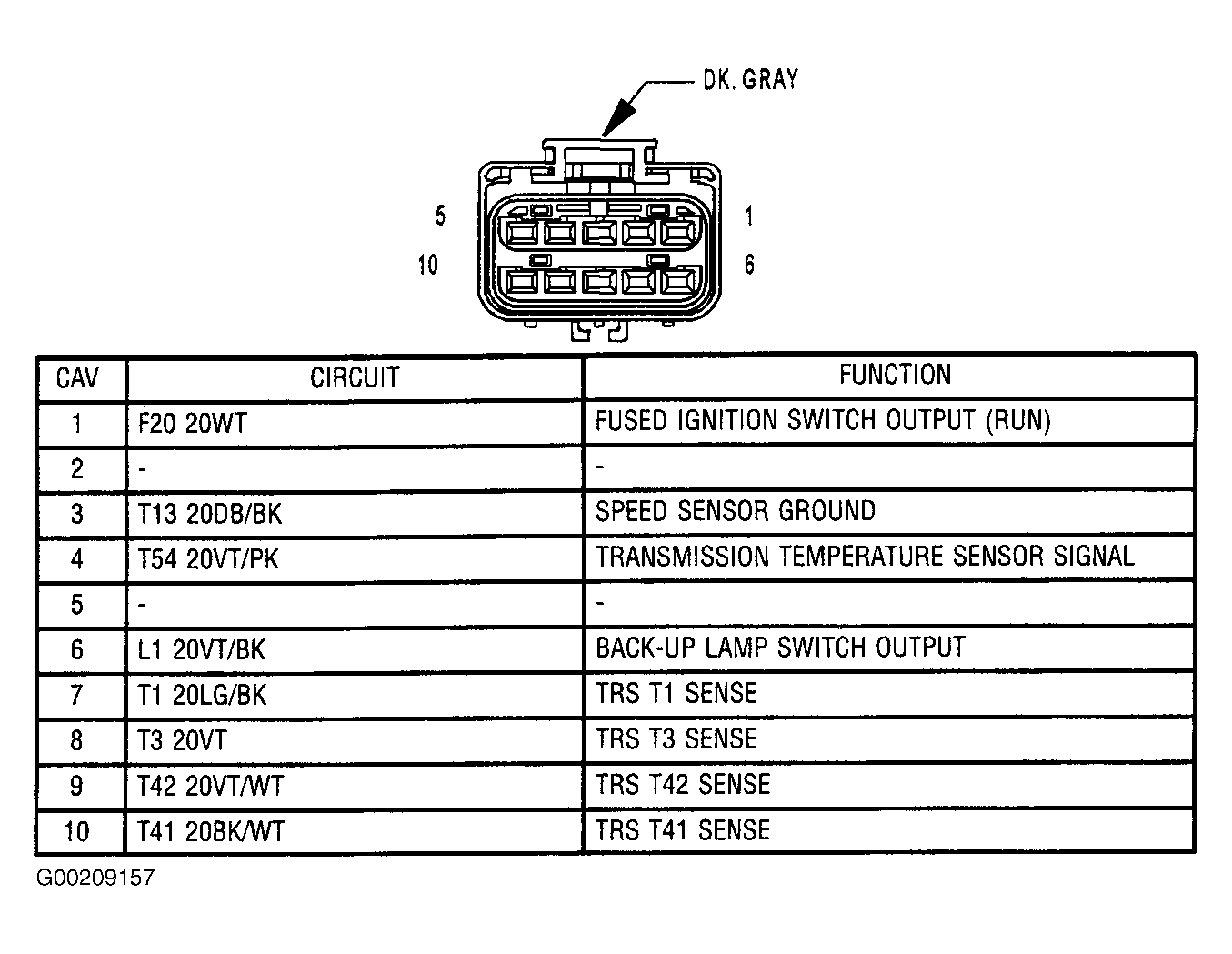

Fig 1: Identifying Transmission Range Sensor Harness Connector Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
