Identifying Multifunction Switch - Gray 20 Way Connector End View
Identifying Multifunction Switch - Gray 20 Way Connector End View

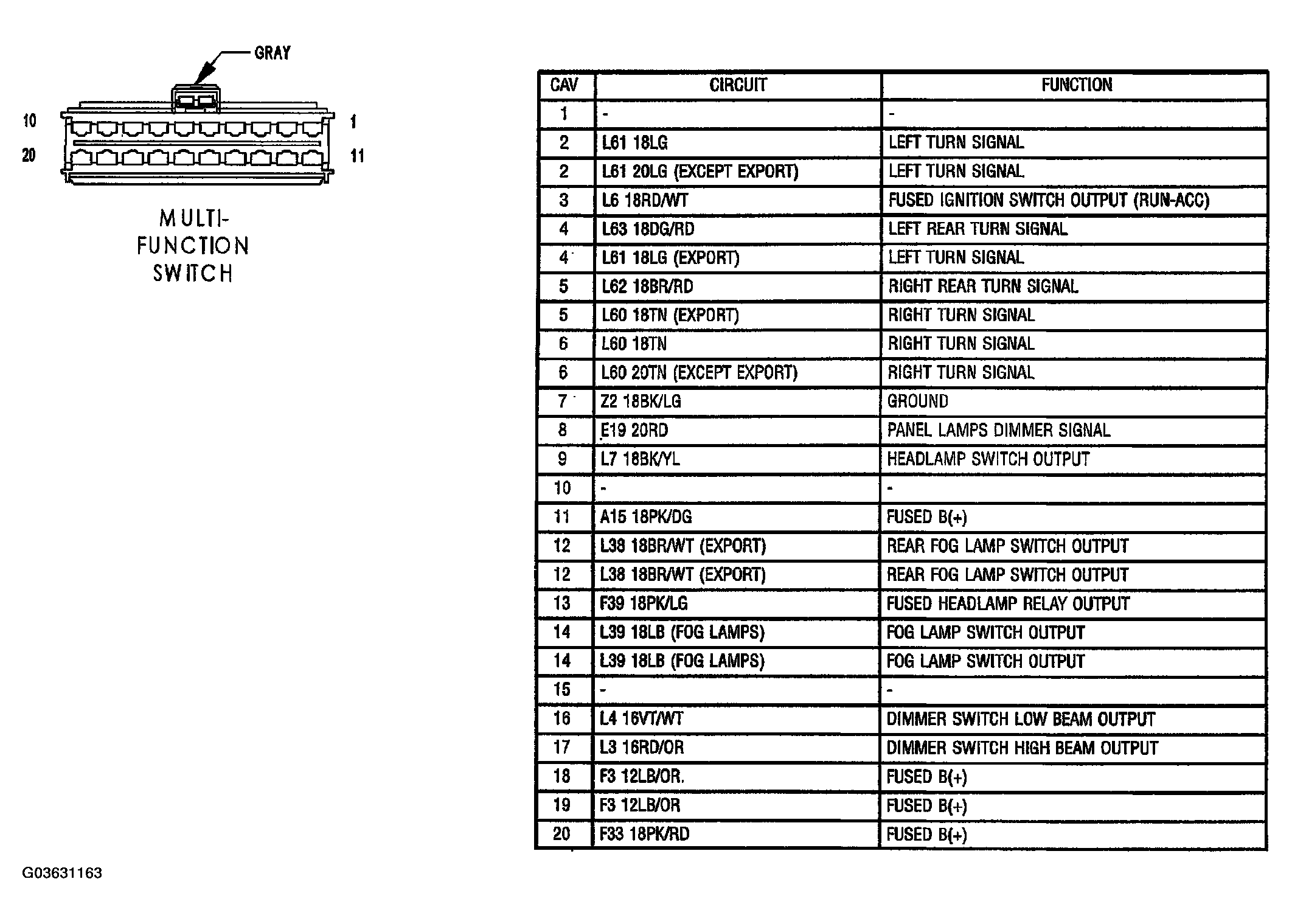

Fig 1: Identifying Multifunction Switch - Gray 20 Way Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
