Rear Suspension: Spring: Description

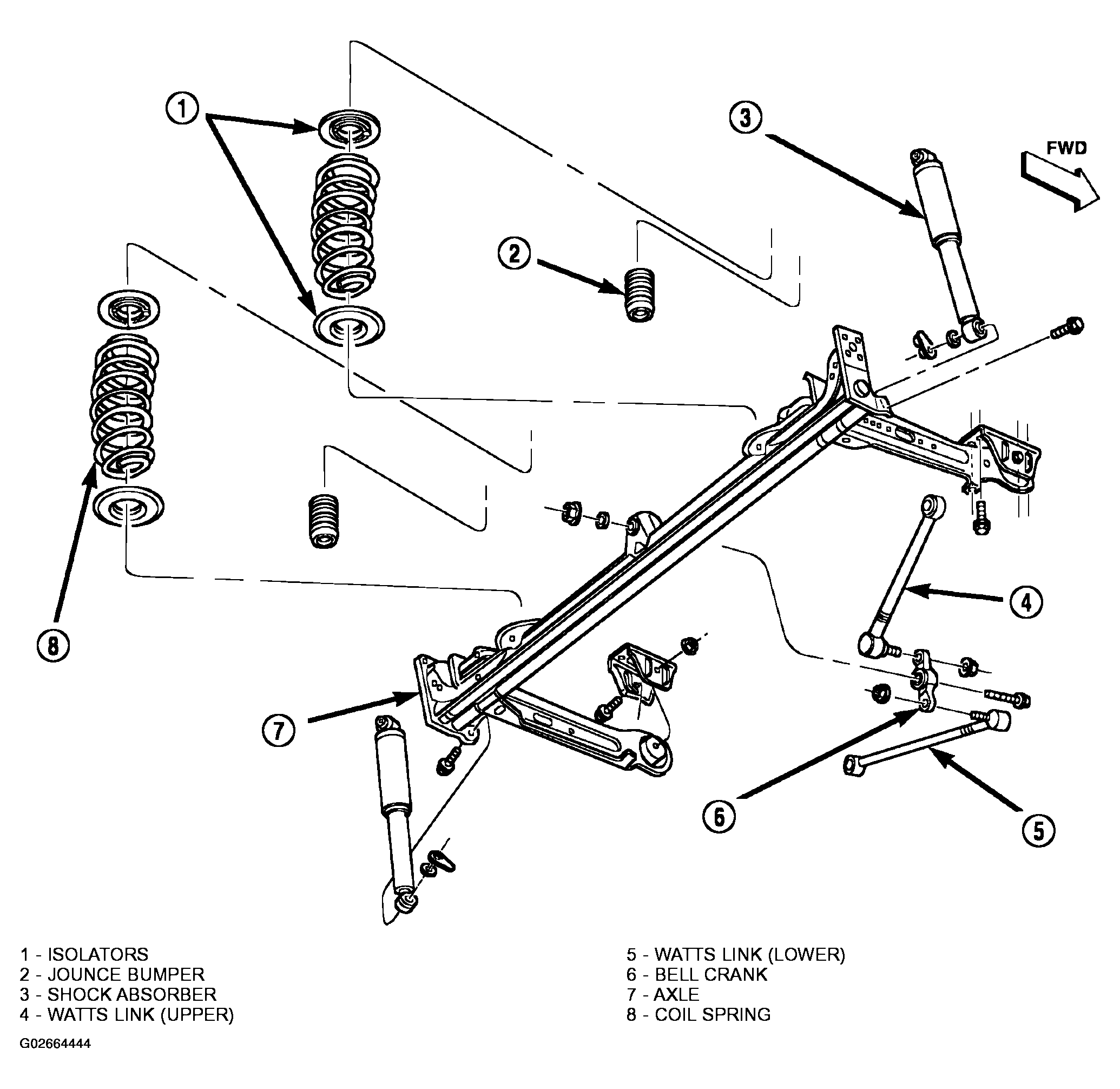

The springs used on the rear suspension of this vehicle are the coil type (Fig 1 ). They are mounted straight above the rear axle beam in line with the rear wheels. A spring isolator is attached to each end of the coil springs. Coil springs come in various heights, be sure the correct spring is in use.
