Front Fender: Installation

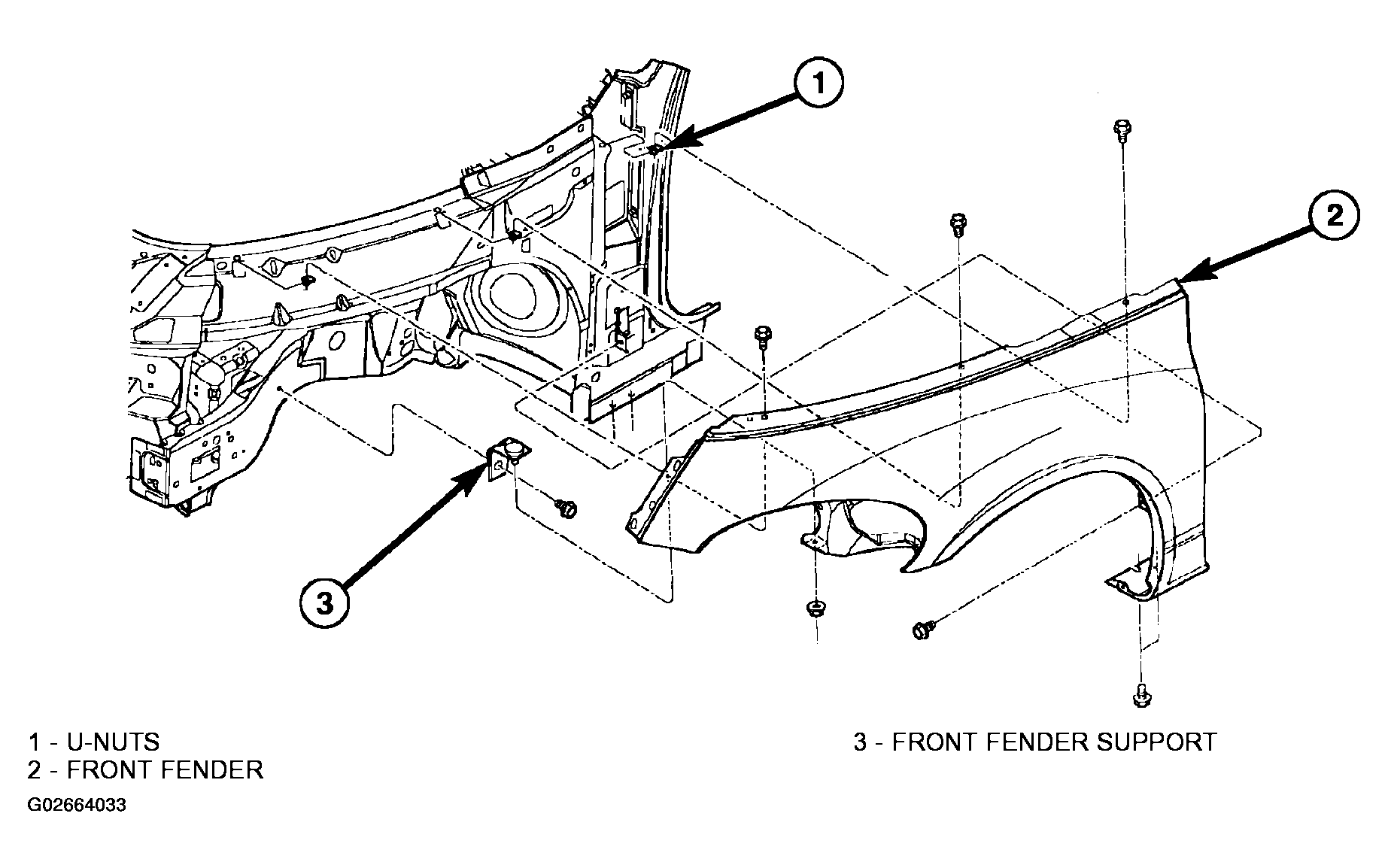

  1. Place fender in position on vehicle (Fig. Figure ).
  2. Start the center upper rail bolt.
  3. From inside engine compartment, install all the bolts attaching fender to upper rail and tighten.
  4. Install lower cowl panel bolt to fender.
  5. Install rocker panel bolt to fender.
  6. Place fascia into position.
  7. Install fender to fascia nuts.
  8. Install inner splash shield.
  9. Install right side pulley splash shield.
  10. Install headlamp assembly.
  11. Check fender for flush and gap.
