Ignition Switch: Installation

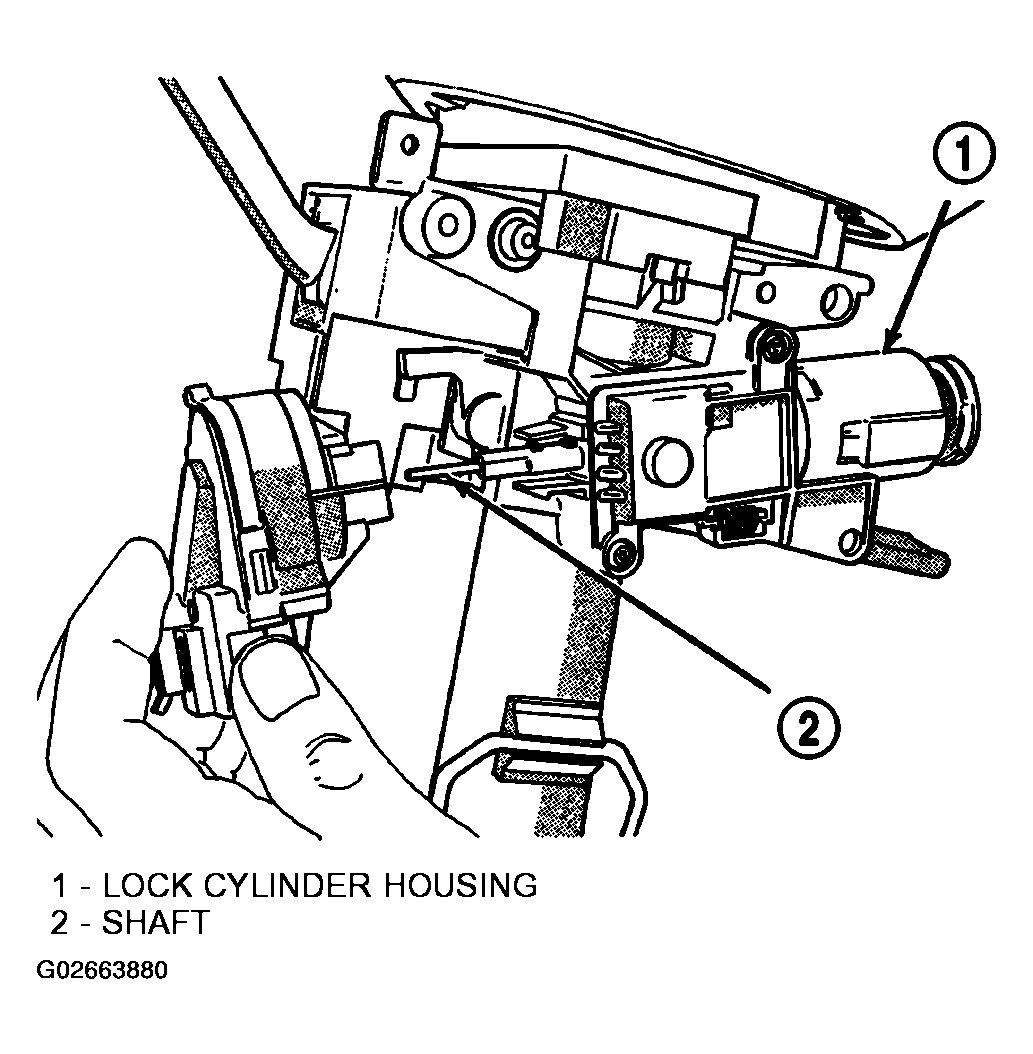

- Ensure the ignition switch is in the RUN position and the actuator shaft in the lock housing is in the RUN position.

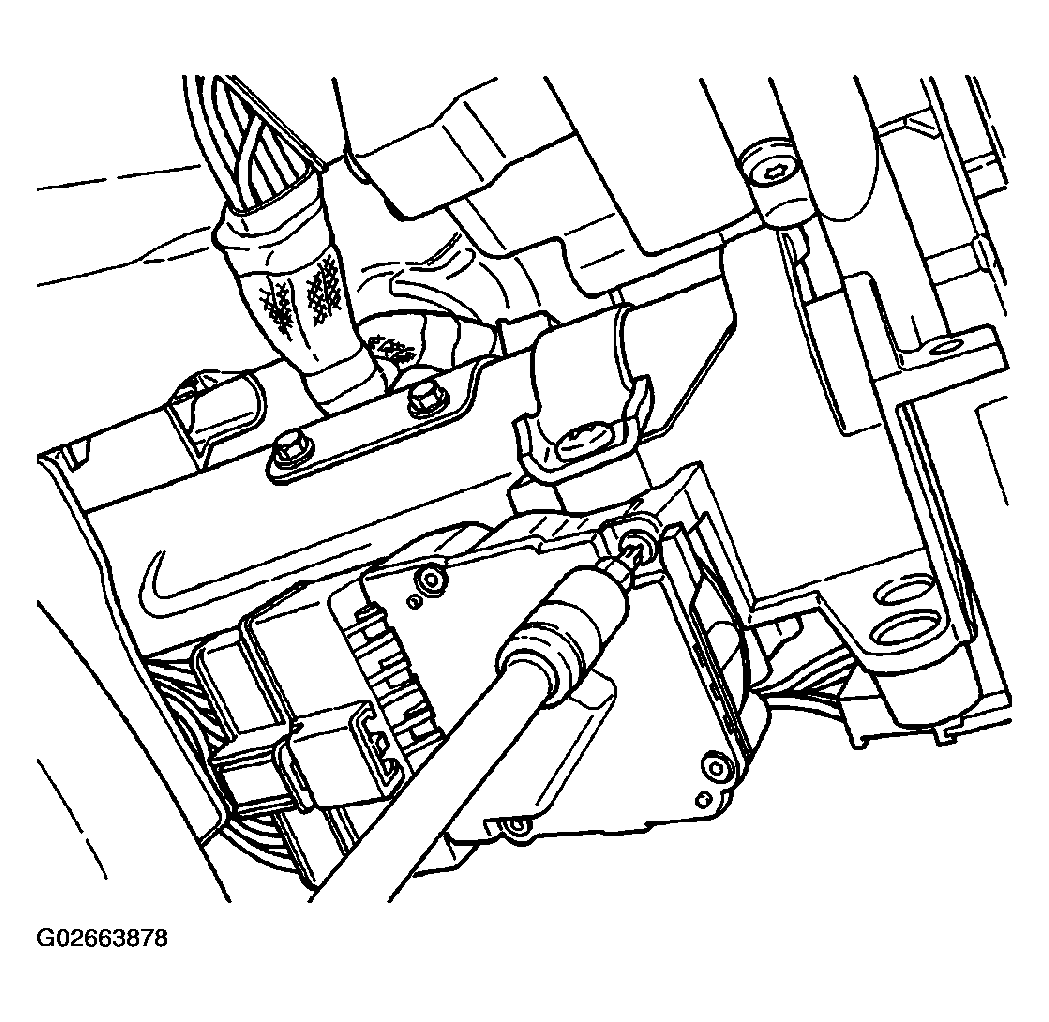

- Carefully install the ignition switch. The switch will snap over the retaining tabs (Fig 1
). Install mounting screw (Figure
).
Courtesy of DAIMLERCHRYSLER CORP.
- Install electrical connectors to ignition switch.

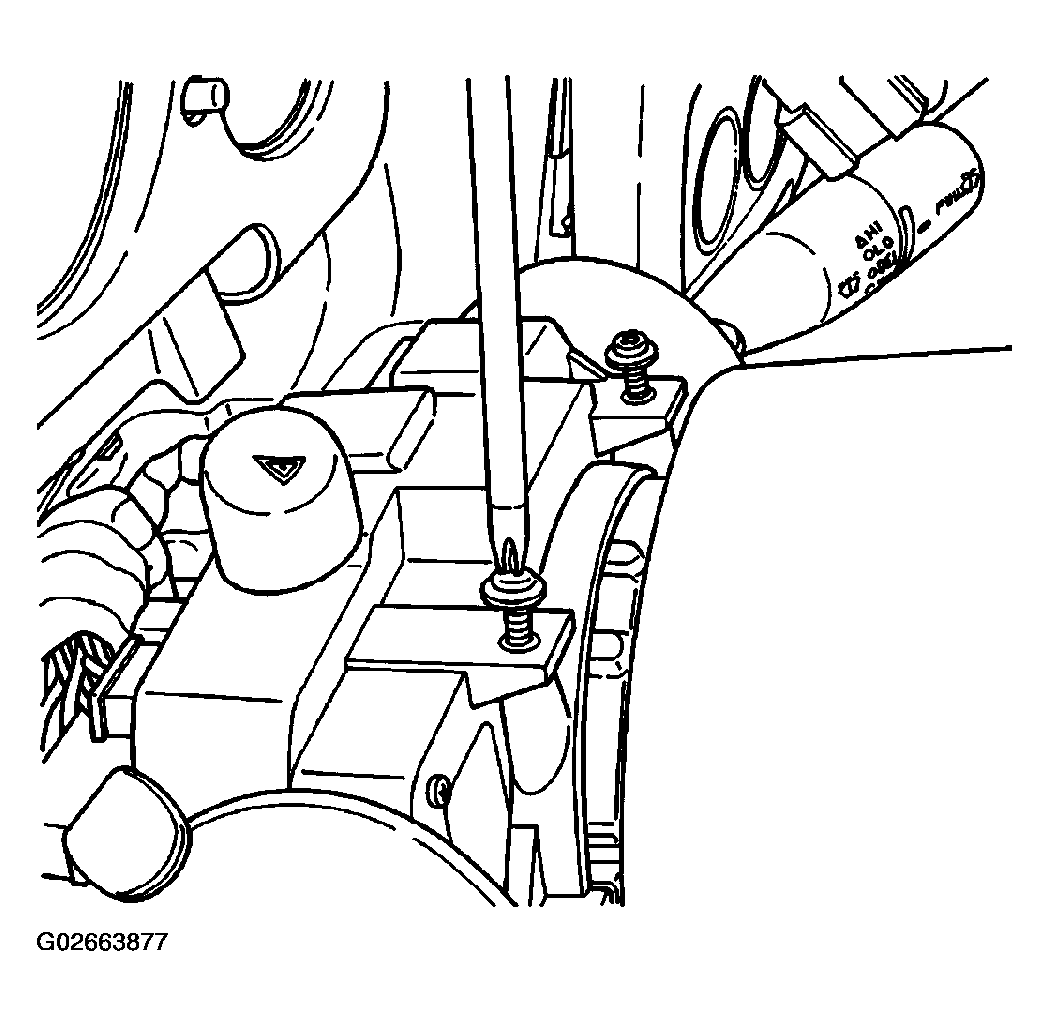

- Install the multi-function switch and tighten the 2 screws (Figure
).
- Install upper and lower shrouds.
- Install key cylinder (cylinder retaining tab will depress only in the RUN position).
- Connect negative cable to battery.
- Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
- Check for proper operation of ignition switch and key-in warning switch.
