Floor Jack

Use floor jack under vehicle jacking points. See Fig 1 . DO NOT raise vehicle using floor jack under axle, body side sill or front suspension. DO NOT use floor jack to raise rear of vehicle.

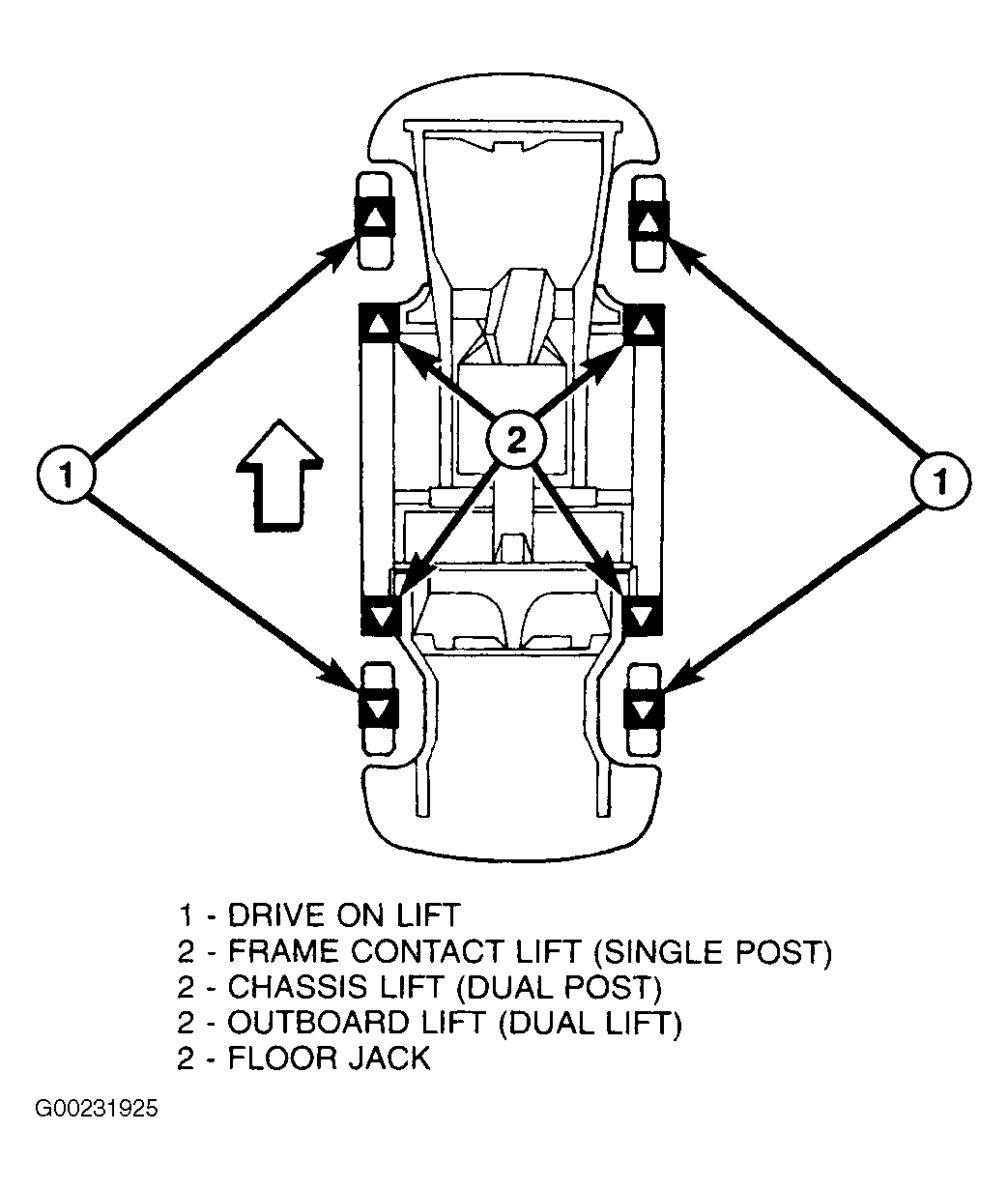

Fig 1: Locating Lifting Points

Courtesy of DAIMLERCHRYSLER CORPORATION
