2.0/2.4L MODELS (Except Turbo)

The modular clutch assembly (Fig 1 ) is located between the engine and manual transaxle in the transaxle bellhousing, and is responsible for transmitting engine power to the transaxle. The modular clutch is an assembly which incorporates a self-adjusting design and consists of the following components:

• Flywheel
• Clutch Disc
• Pressure Plate
• Diaphragm Spring
• Adjusting Ring
• Sensor
• Cover

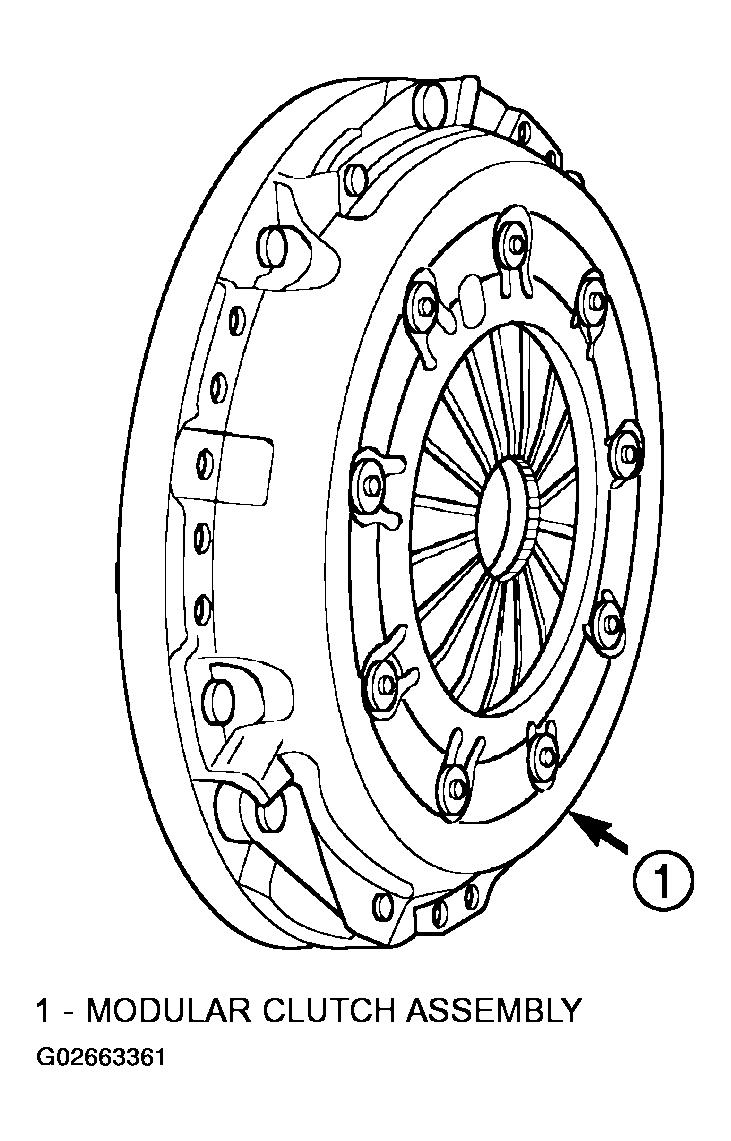

  Fig 1: Identifying Modular Clutch Assembly - Typical

  Courtesy of DAIMLERCHRYSLER CORP.
