Checking Fluid Levels
NOTE:
The fluid required for this transaxle is Mopar(R) ATF+4 (Automatic Transmission Fluid). Use of improper or substitute fluids can cause shift problems and/or transaxle failure.
- Raise vehicle on hoist.
- Diesel Models

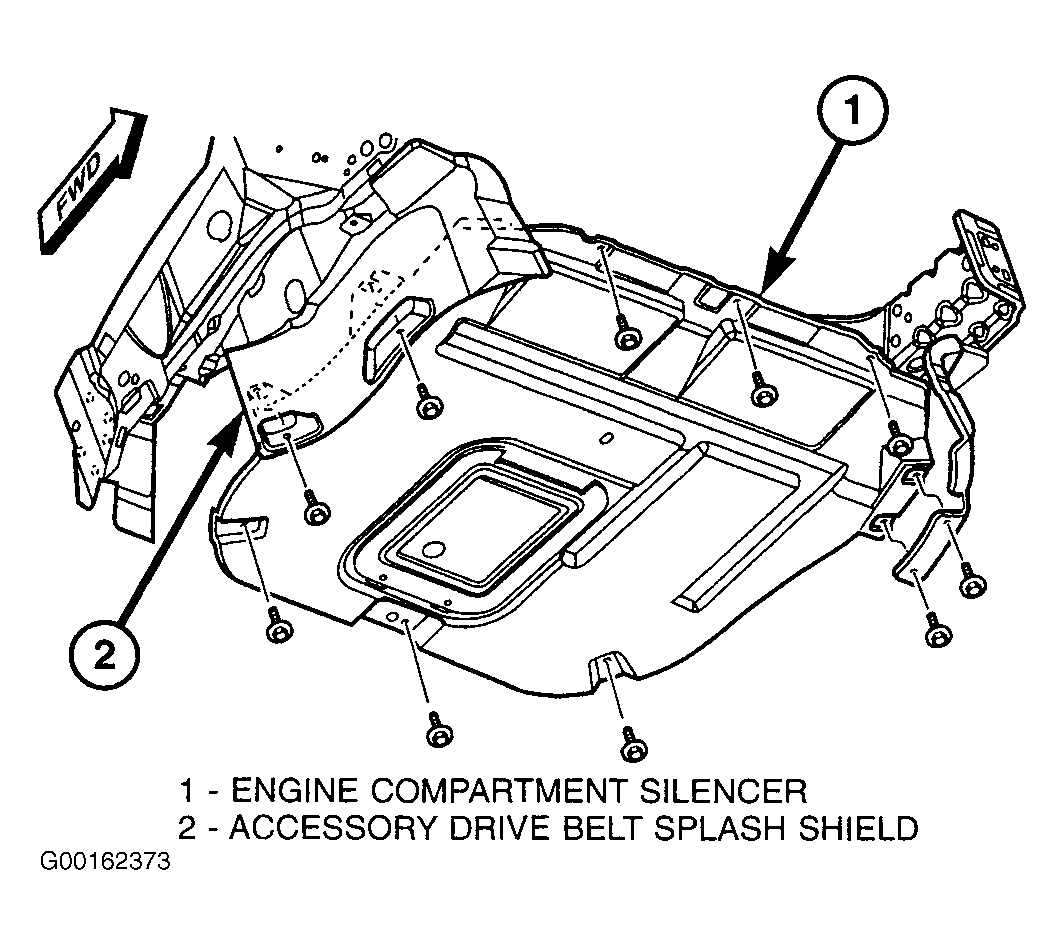

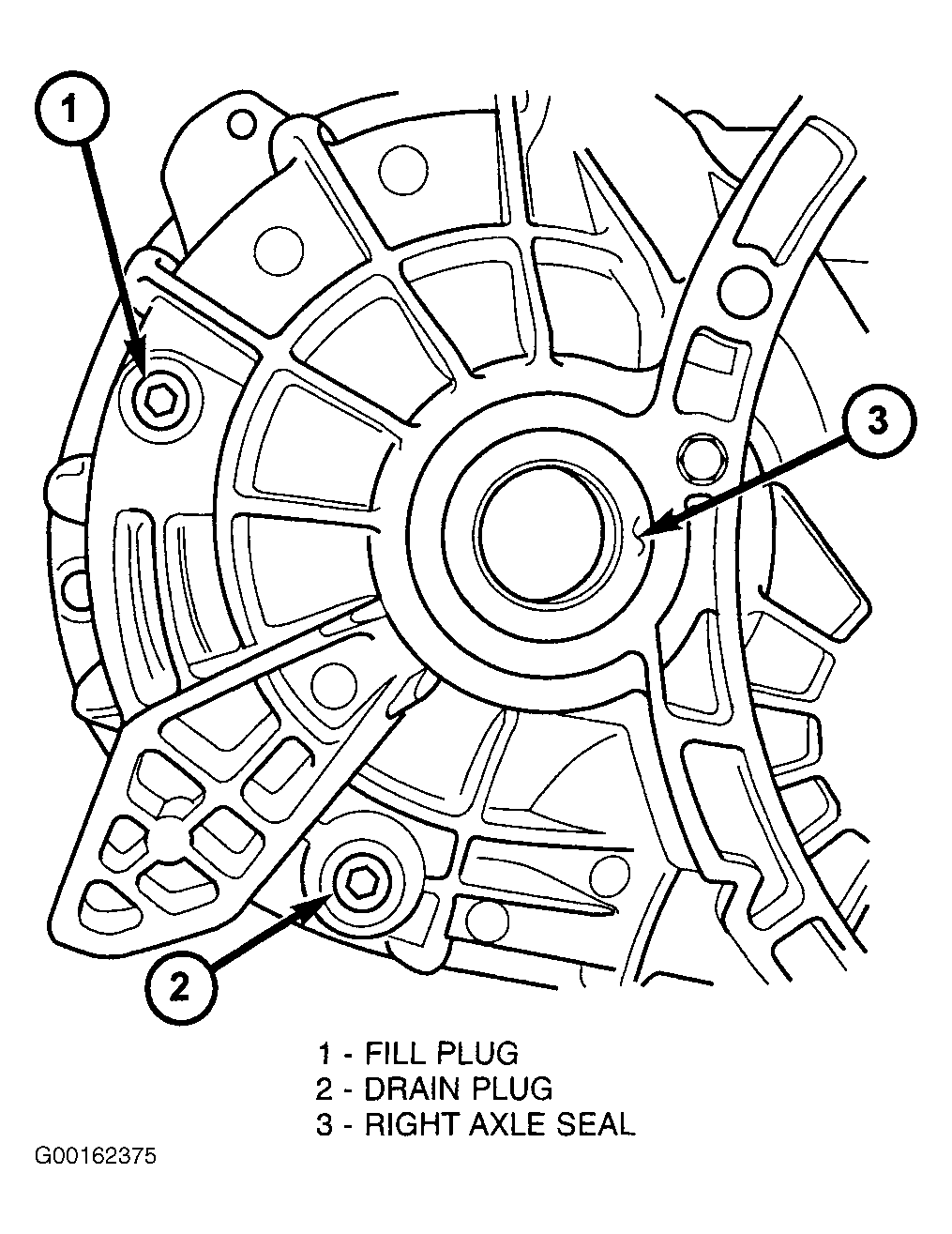

Remove engine compartment lower silencer. See Figure . - Remove transaxle fill plug. See Fig 1 . Inspect fluid level. Fluid should be within 4.7 mm (.188") from bottom of fill hole.
- If required, fill transaxle with suitable amount of ATF+4 (Automatic Transmission Fluid).
- Install fill plug and torque to 39-47 N.m (29-35 ft. lbs.). See Fig 1 .
- Diesel Models
Install engine compartment lower silencer. See Figure . - Lower Vehicle.
