Identifying Remote Keyless Entry Module - Black 26 Way Connector End View
Identifying Remote Keyless Entry Module - Black 26 Way Connector End View

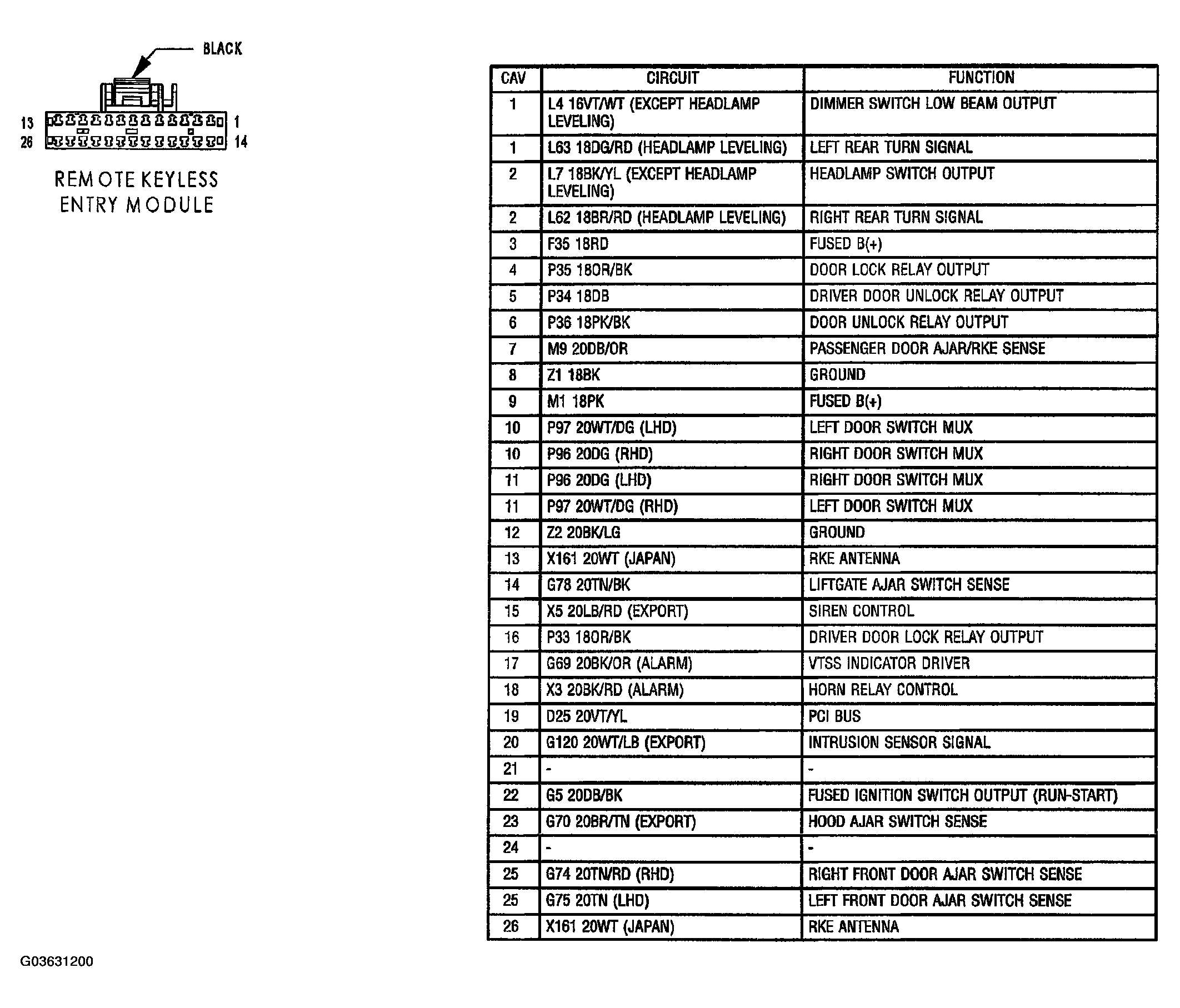

Fig 1: Identifying Remote Keyless Entry Module - Black 26 Way Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
