Ignition Coil Harness Connector End View
Ignition Coil Harness Connector End View

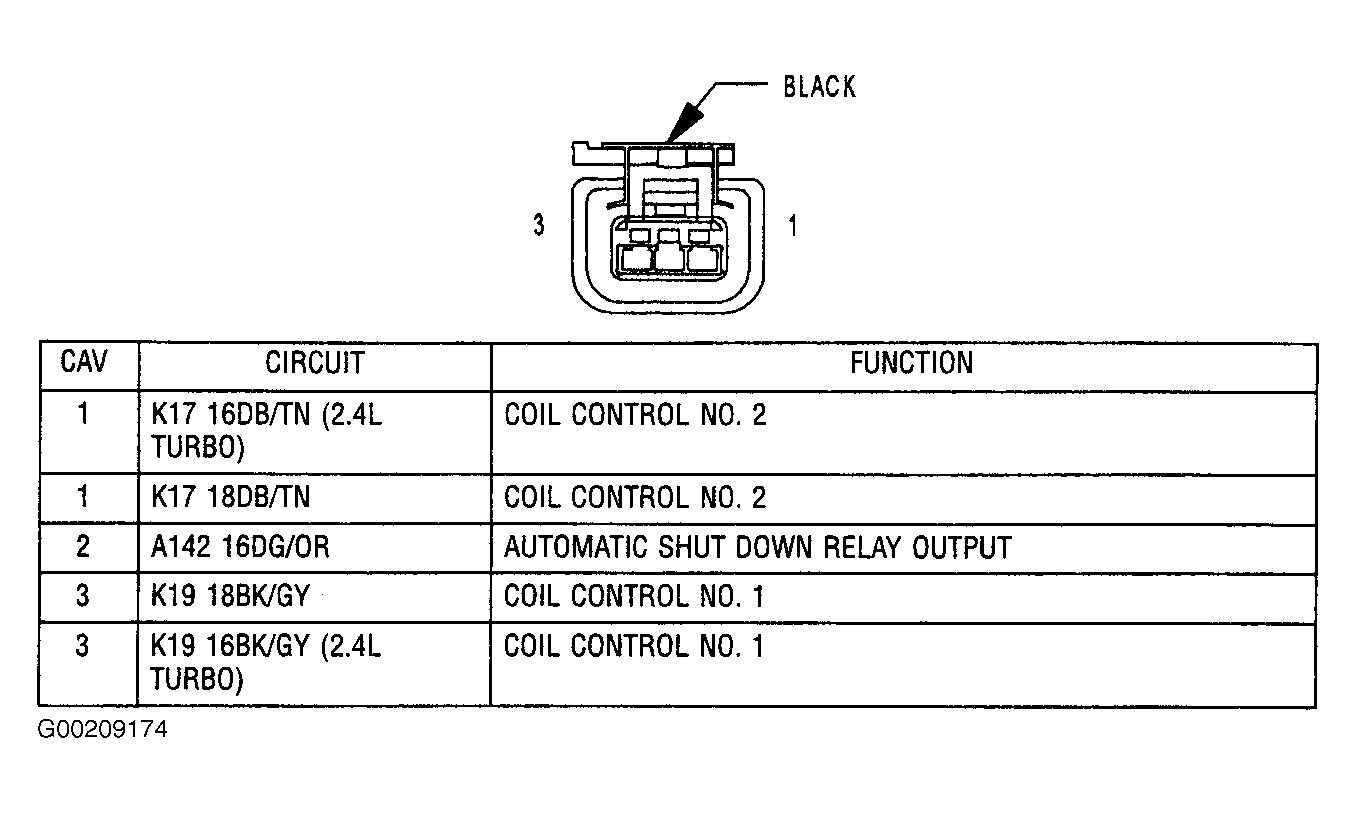

Fig 1: Identifying Ignition Coil Harness Connector
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
