Liftgate Lock Cylinder: Installation

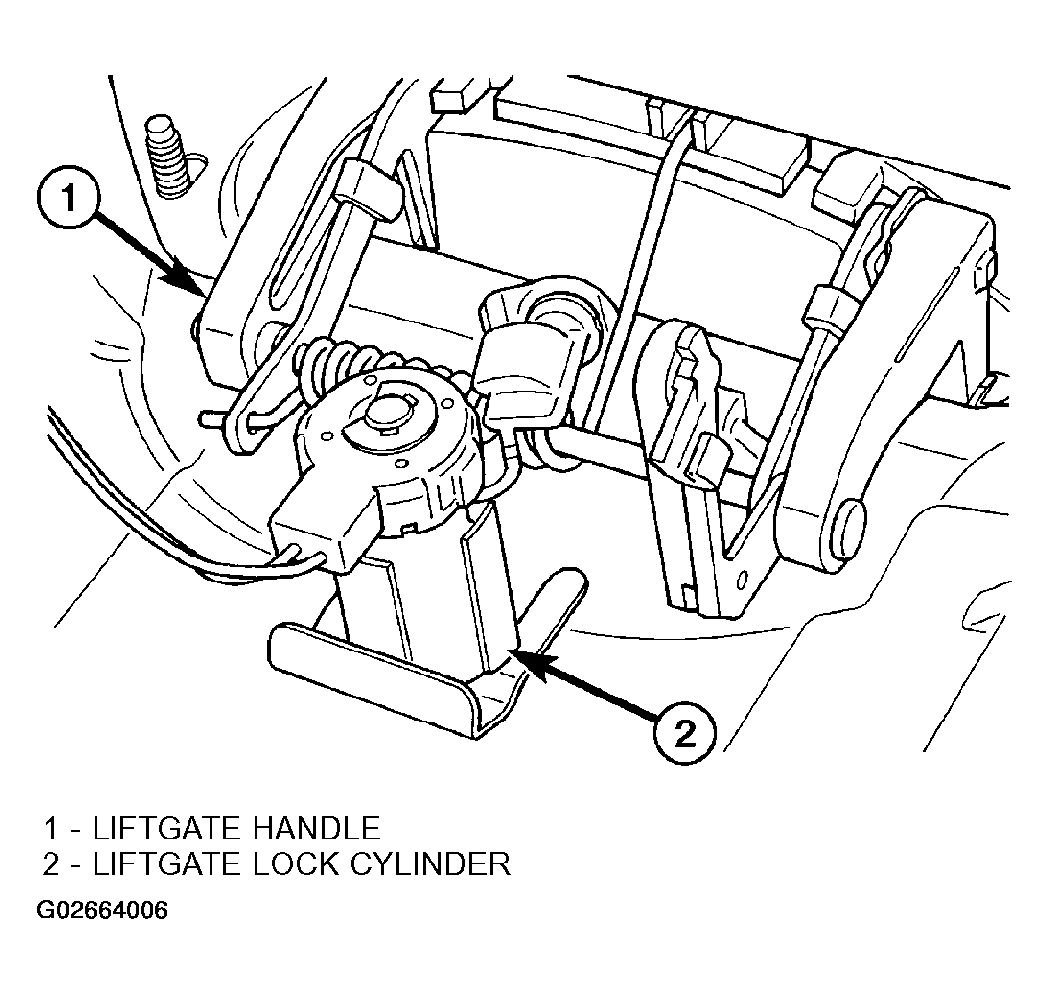

Install lock cylinder clip into liftgate (Figure ).
Push lock cylinder into handle until clip engages groove in lock cylinder with an audible click.
Install outside liftgate handle.
Verify lock cylinder operation.
