Ignition Switch Continuity Check

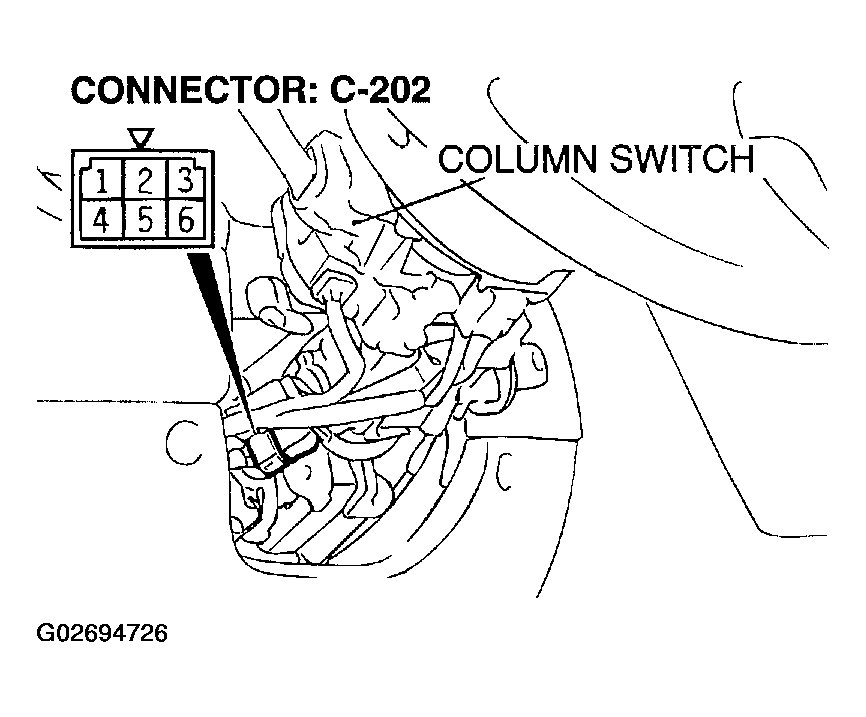

Disconnect ignition switch connector C-202 without removing the ignition switch and steering lock cylinder. Then check the continuity.
IGNITION SWITCH CONTINUITY CHECK
| SWITCH POSITION | TESTER CONNECTION | SPECIFIED CONDITION |
|---|---|---|
| "LOCK" (OFF) | 1 -2, 1 -3, 1 -4, 1 -5, 1 -6 | Open circuit |
| "ACC" | 1 -6 | Less than 2 ohms |
| "ON" | 1 -2-4-6 | Less than 2 ohms |
| "START" | 1 -2-3-5 | Less than 2 ohms |
