Disassembly And Assembly: Notes

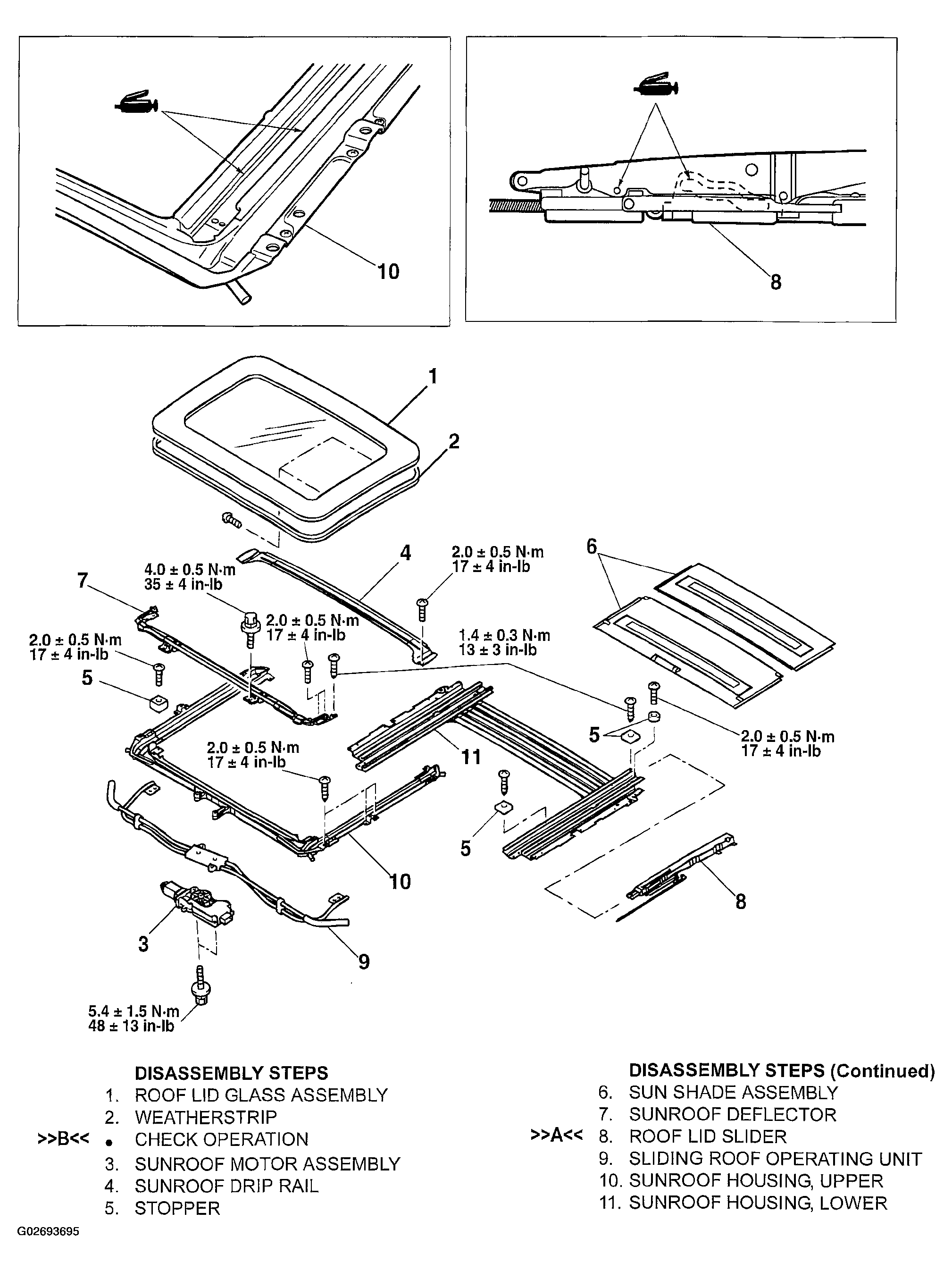

Fig 1: Disassembling & Assembling Sunroof Assembly
G02693695Courtesy of DAIMLERCHRYSLER CORP.
