Chrysler
›
2003
›
Sebring LXi, 2D Convertible
›
Repair and Diagnosis
›
Body & Frame
›
Exterior/Interior Trim
›
Body
›
Trunk Lid
›
Removal And Installation
›
Notes
Removal And Installation: Notes

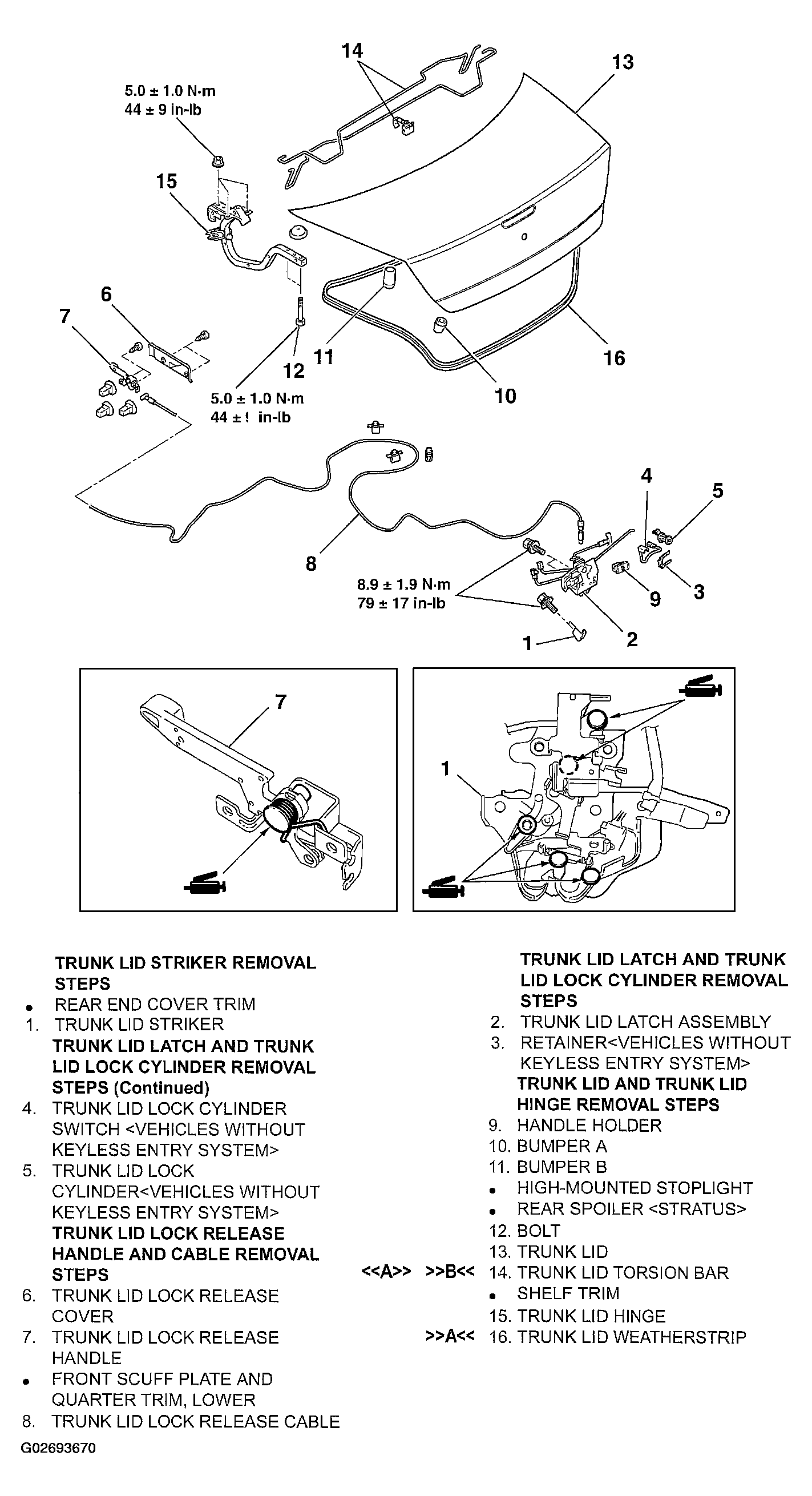

Fig 1: Removing & Installing Trunk Lid (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Required Special Tool:
MB991244: Torsion Bar Remover and Installer
Fig 2: Removing & Installing Trunk Lid (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
