Home
›
Chrysler
›
2003
›
Sebring LXi, 2D Convertible
›
Repair and Diagnosis
›
Body & Frame
›
Seats
›
Power Seat System - Front
›
Front Seat Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

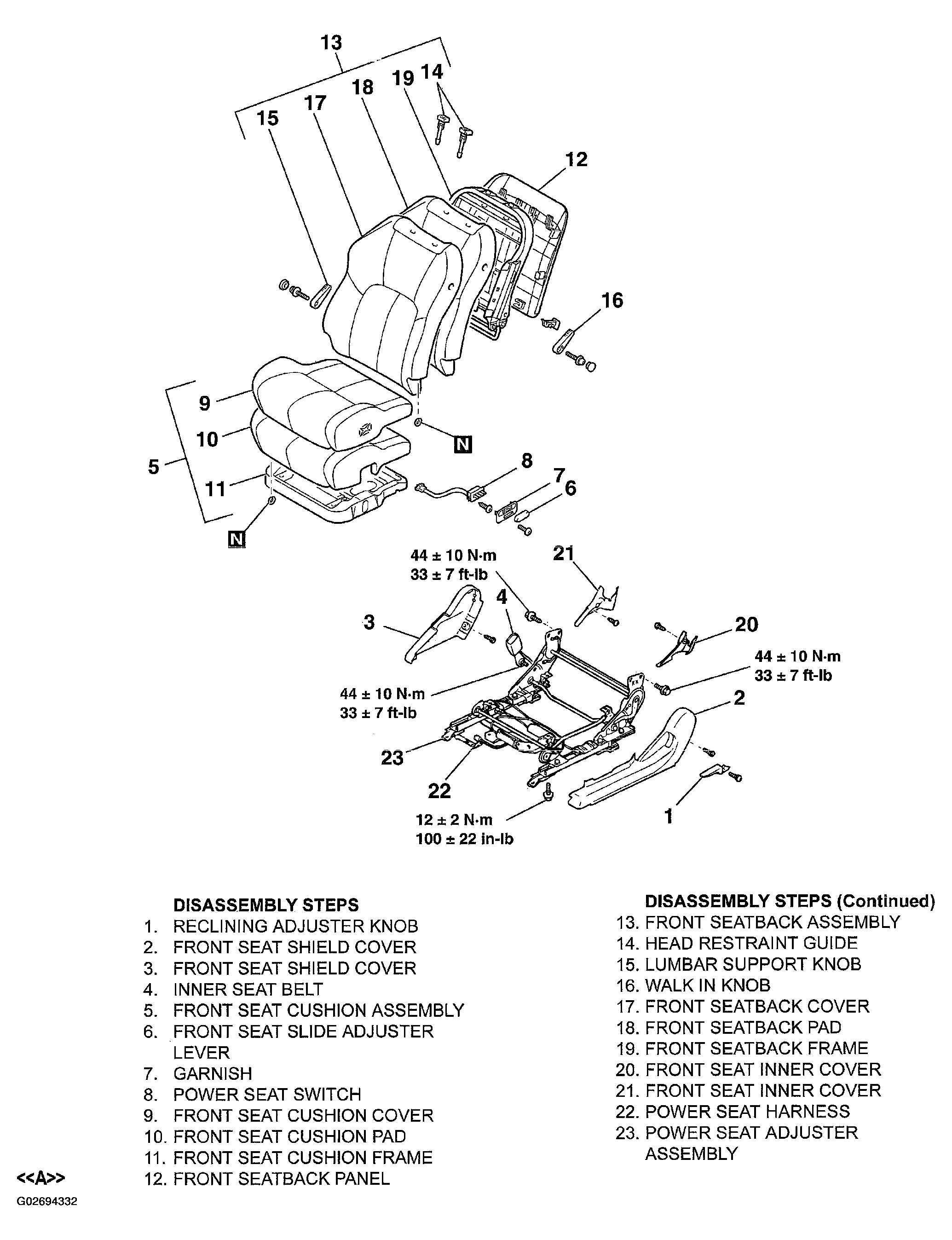

Fig 1: Disassembly And Assembly Of Front Seat Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
