Automatic Transmission Diagnostic Procedures
›
Charts And Graphs
›
Transmission Temperature Sensor
Transmission Temperature Sensor

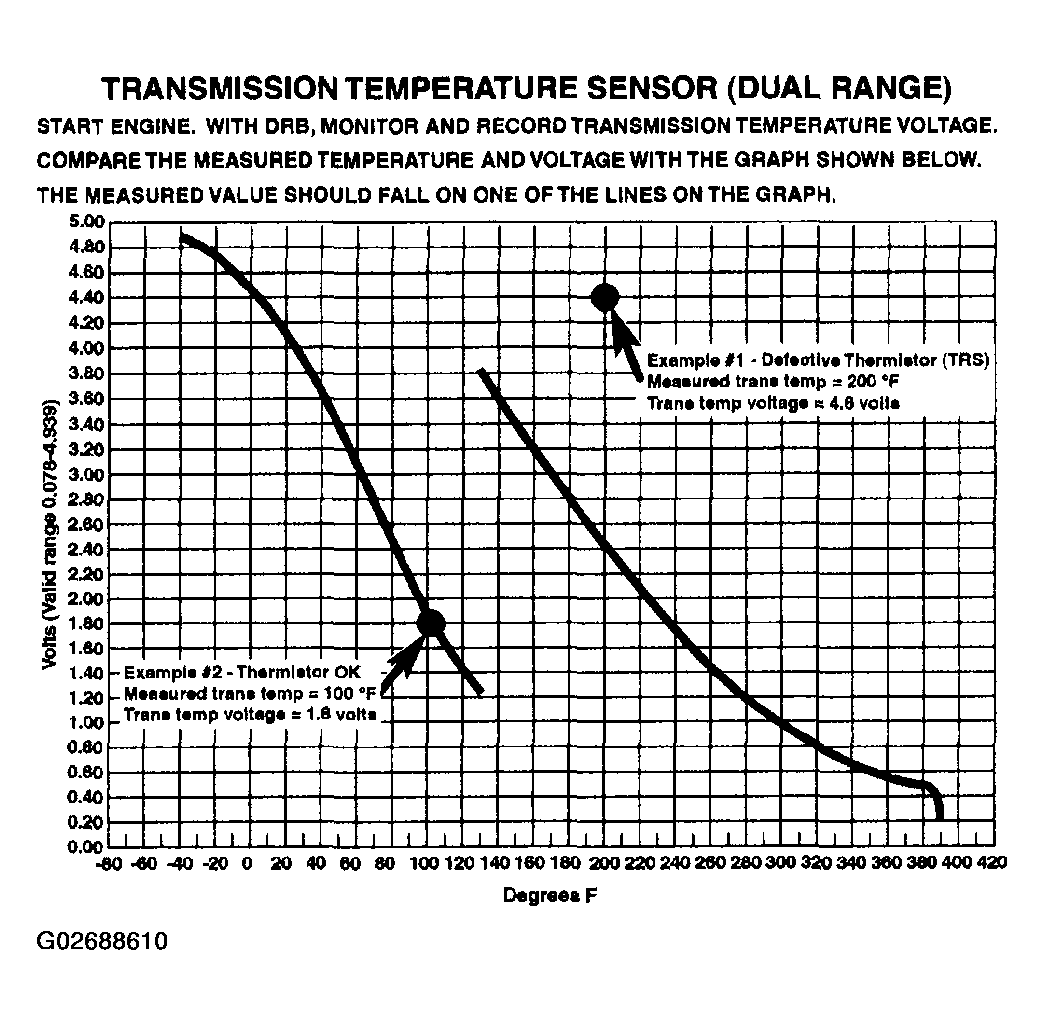

Fig 1: Transmission Temperature Sensor (Dual Range) Graph
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
