Connector PINOUTS
›
Powertrain Control Module C1 (SBEC)
Powertrain Control Module C1 (SBEC)

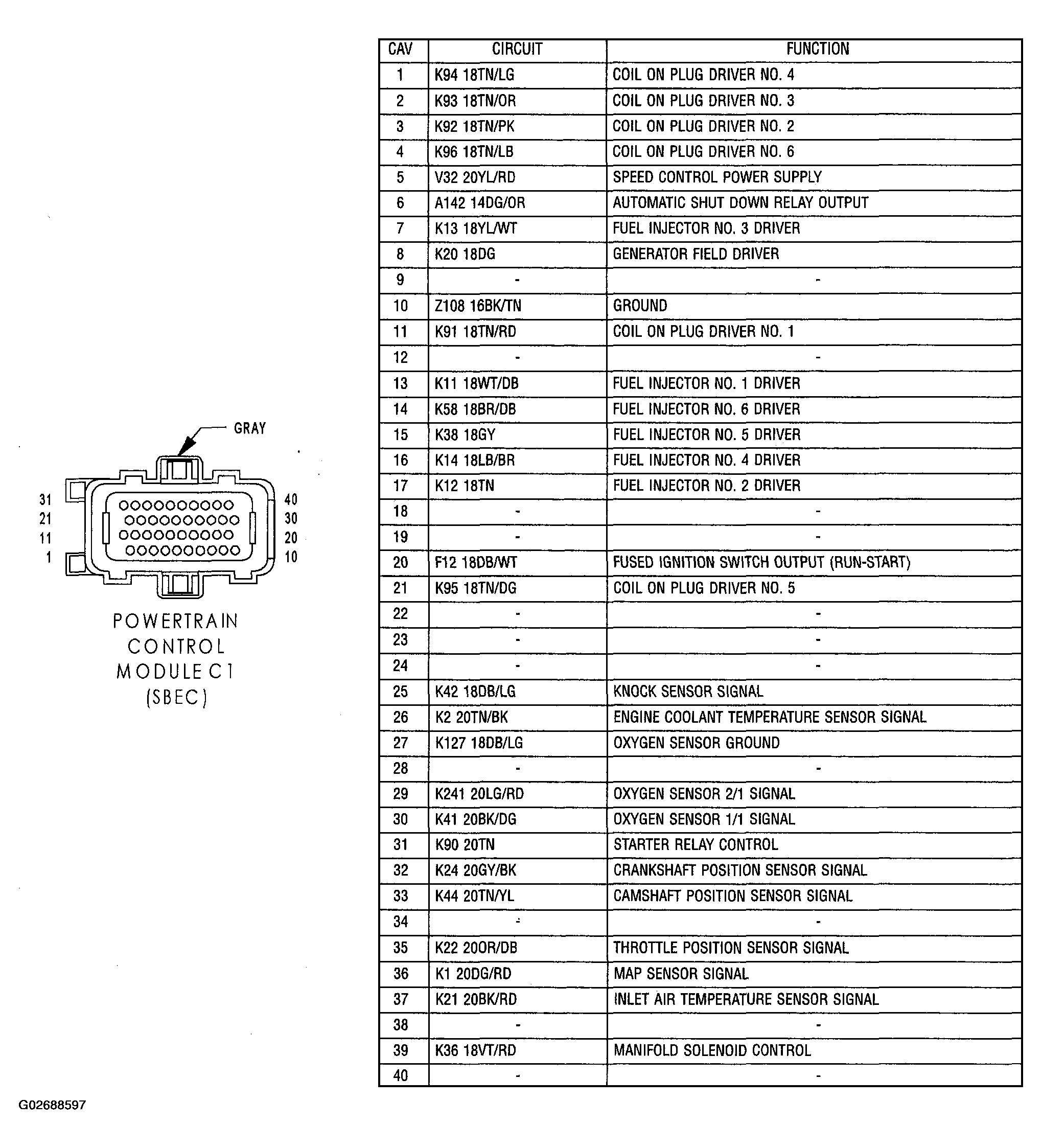

Fig 1: Identifying Powertrain Control Module C1 (SBEC) Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
