Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C2 (NGC)
Powertrain Control Module C2 (NGC)

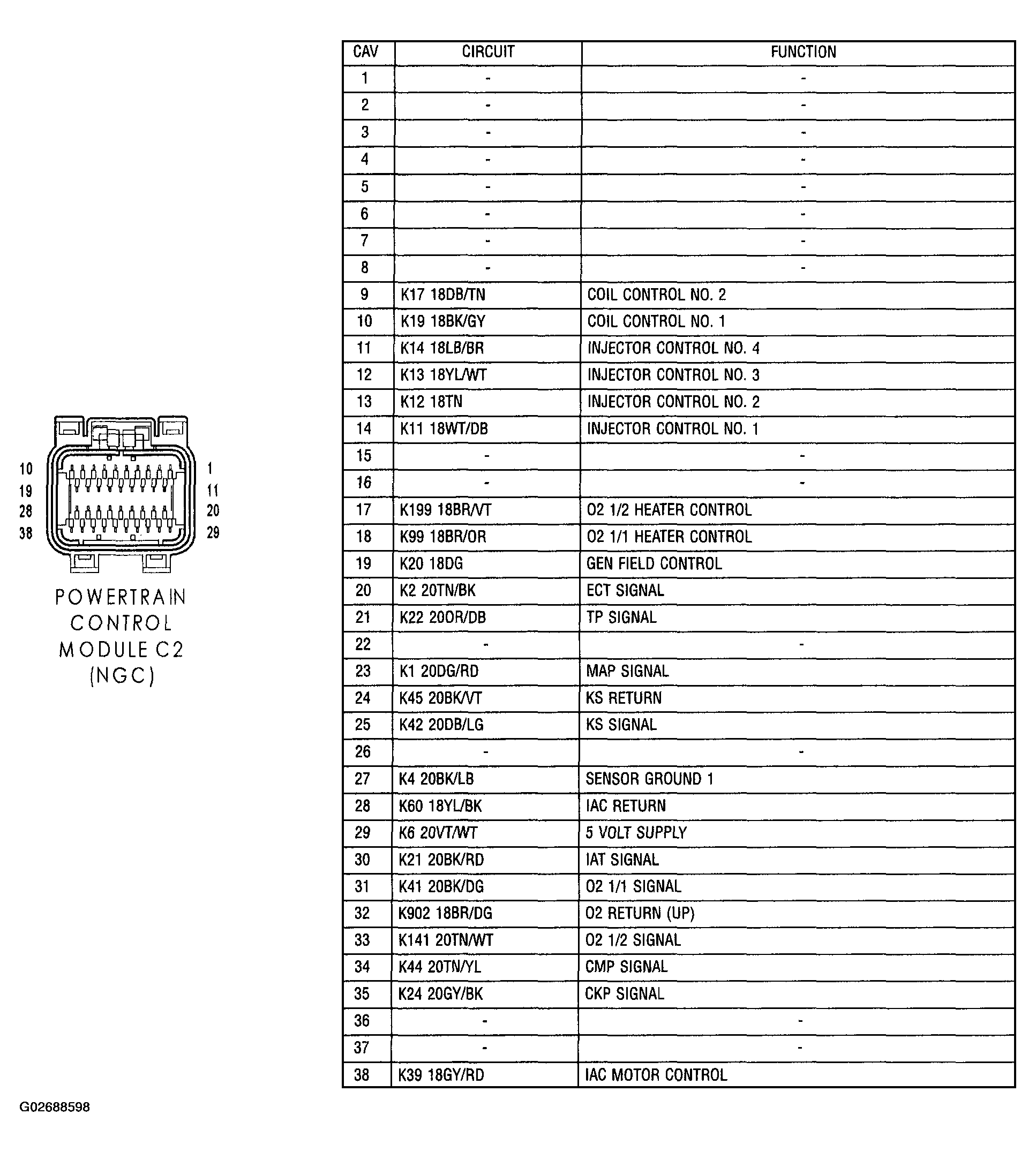

Fig 1: Identifying Powertrain Control Module C2 (NGC) Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
