Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C2 (SBEC)
Powertrain Control Module C2 (SBEC)

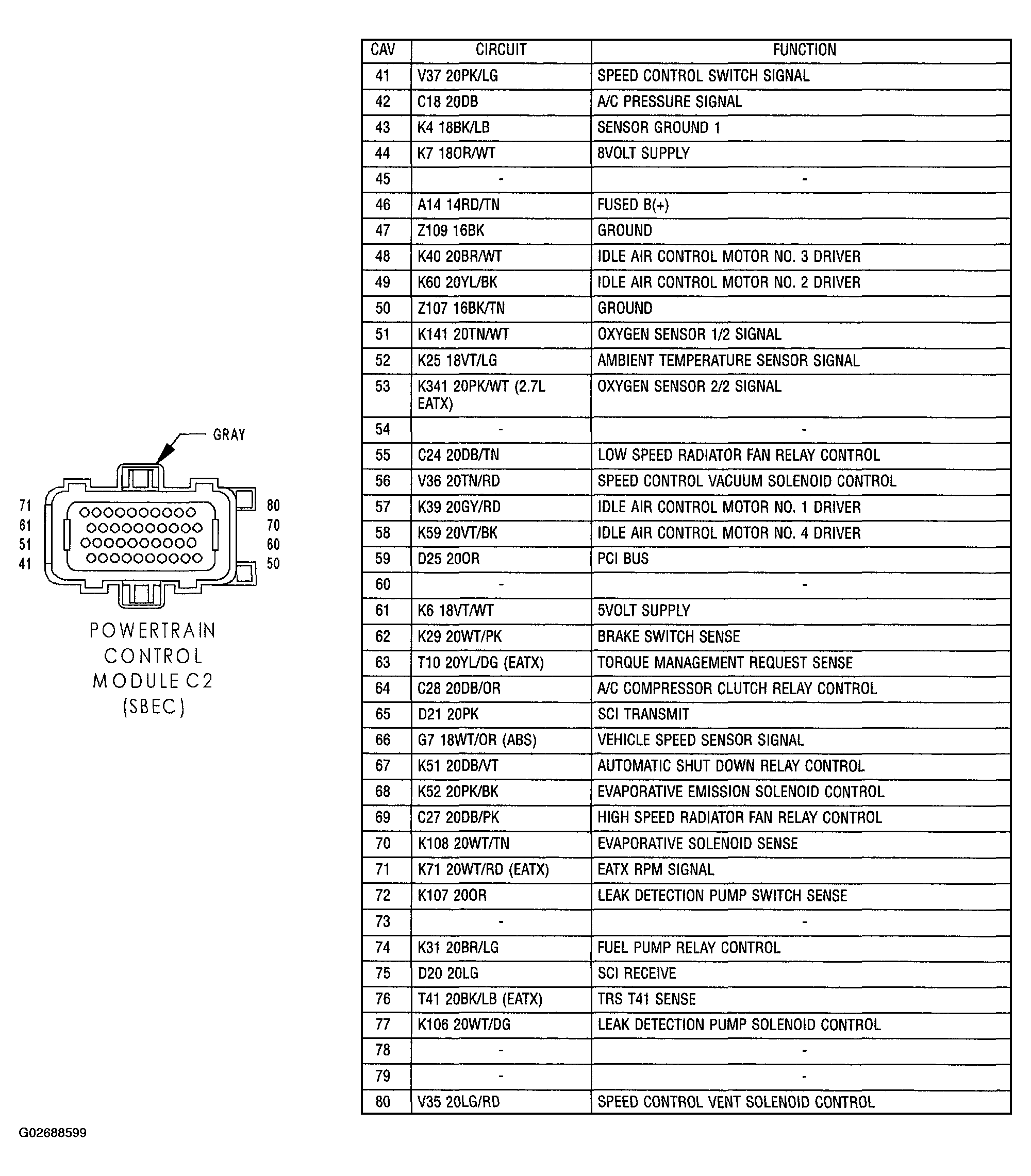

Fig 1: Identifying Powertrain Control Module C2 (SBEC) Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
