Automatic Transmission Diagnostic Procedures
›
Connector PINOUTS
›
Transmission Control Relay
Transmission Control Relay

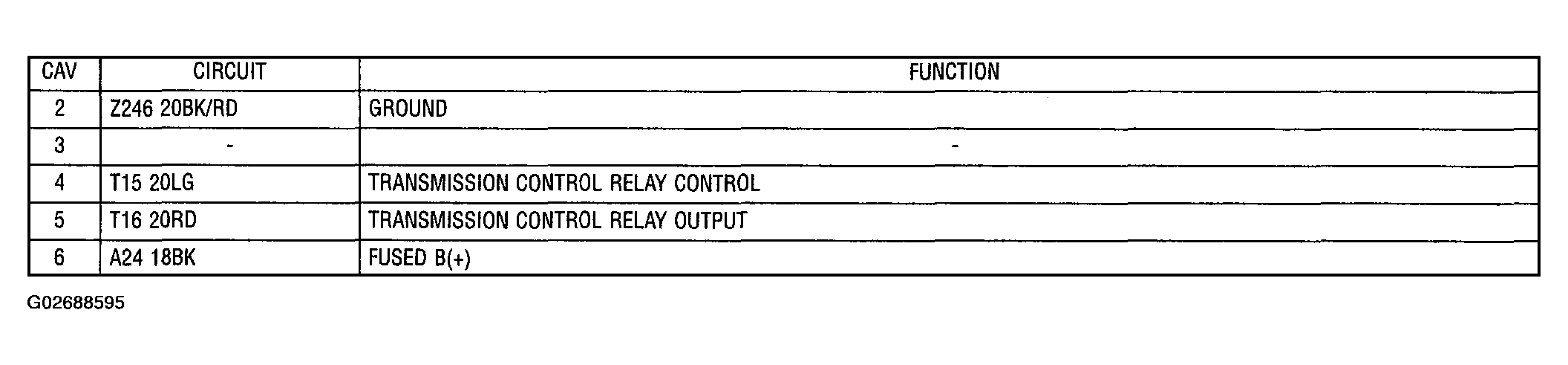

Fig 1: Transmission Control Relay Fuses Connector Pinouts Function Reference Index
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
