On-Vehicle Service & Removal And Installation: General Description: Notes

The A/T come in two models, namely, F4A42 and F4A51.

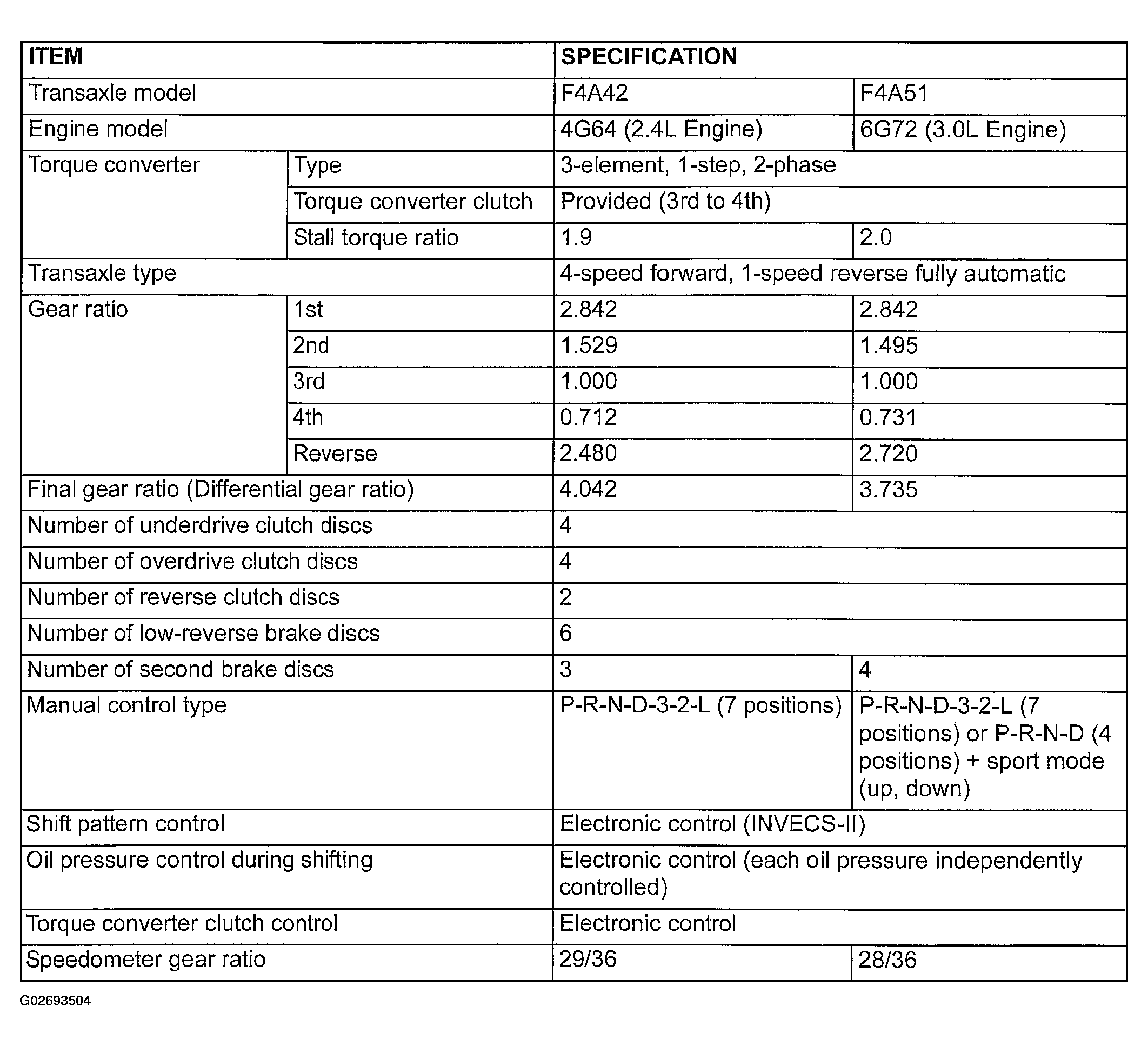

Fig 1: Automatic Transaxle Specifications

Courtesy of DAIMLERCHRYSLER CORP.
