Shift Switch Assembly Continuity Check

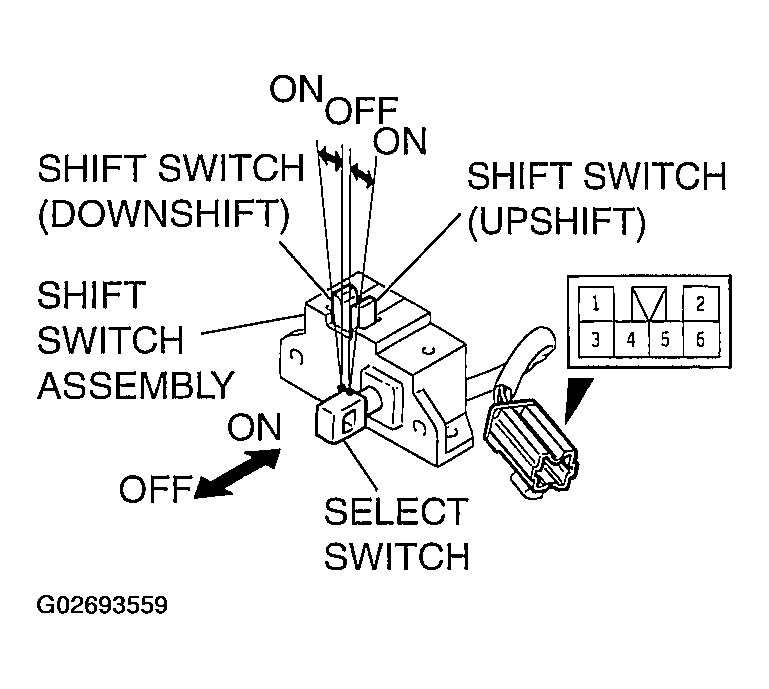

Fig 1: Identifying Shift Switch Assembly And Terminals

Courtesy of DAIMLERCHRYSLER CORP.

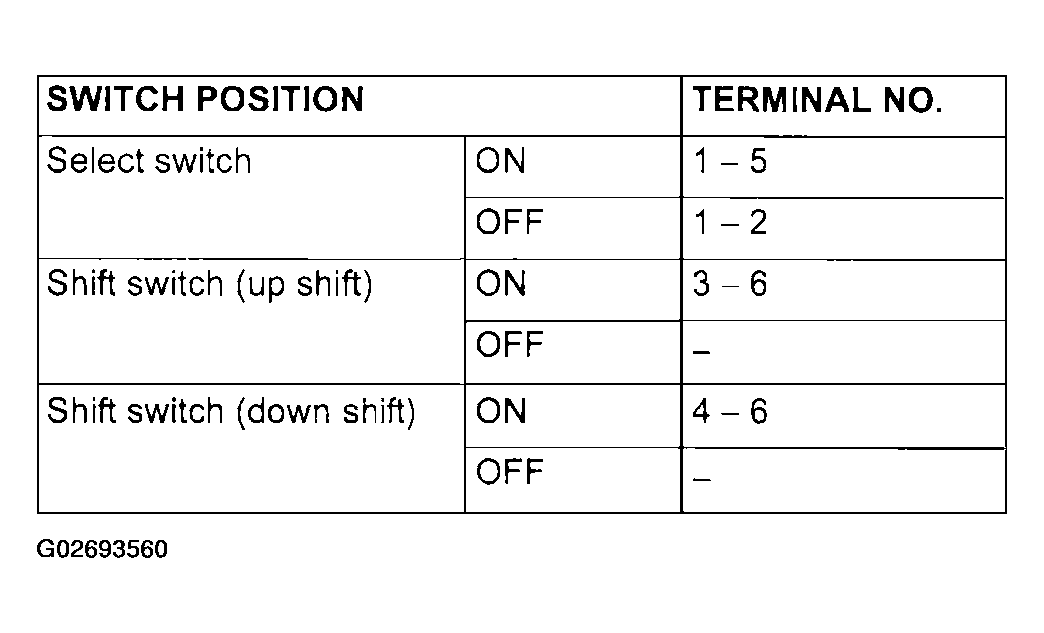

Fig 2: Shift Switch Assembly Continuity Reference Table

Courtesy of DAIMLERCHRYSLER CORP.
