Removal And Installation: Notes
CAUTION:
When removing and installing the transmission control cable and shift lock cable unit, be careful not to impact the SRS-ECU.
Pre-removal and Post-installation Operation
- Air Cleaner Assembly Removal and Installation
- Battery and Battery Tray Removal and Installation
- Instrument Panel Under Cover Removal and Installation (Refer to INSTRUMENT PANEL ASSEMBLY .)
- Floor Console Box Removal and Installation (Refer to FLOOR CONSOLE ASSEMBLY .)
- Selector Lever Operation Check (Refer to SELECTOR LEVER OPERATION CHECK .) < Post-installation >
- Key Interlock Mechanism Check (Refer to KEY INTERLOCK MECHANISM CHECK .) < Post-installation >
- Shift Lock Mechanism Check (Refer to KEY INTERLOCK MECHANISM CHECK .) < Post-installation >

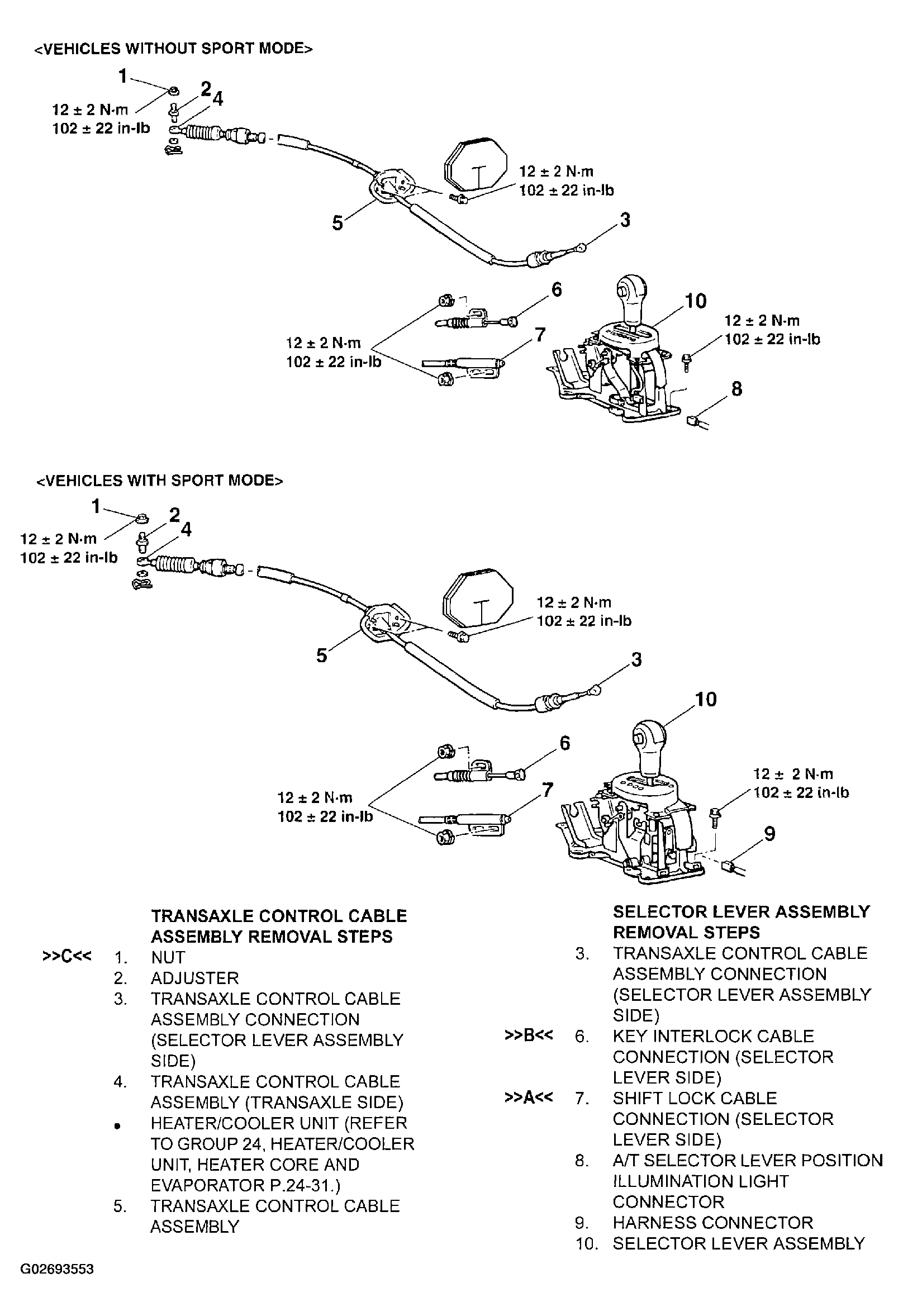

< VEHICLES WITHOUT SPORT MODE >
