Ignition Switch Connector End View

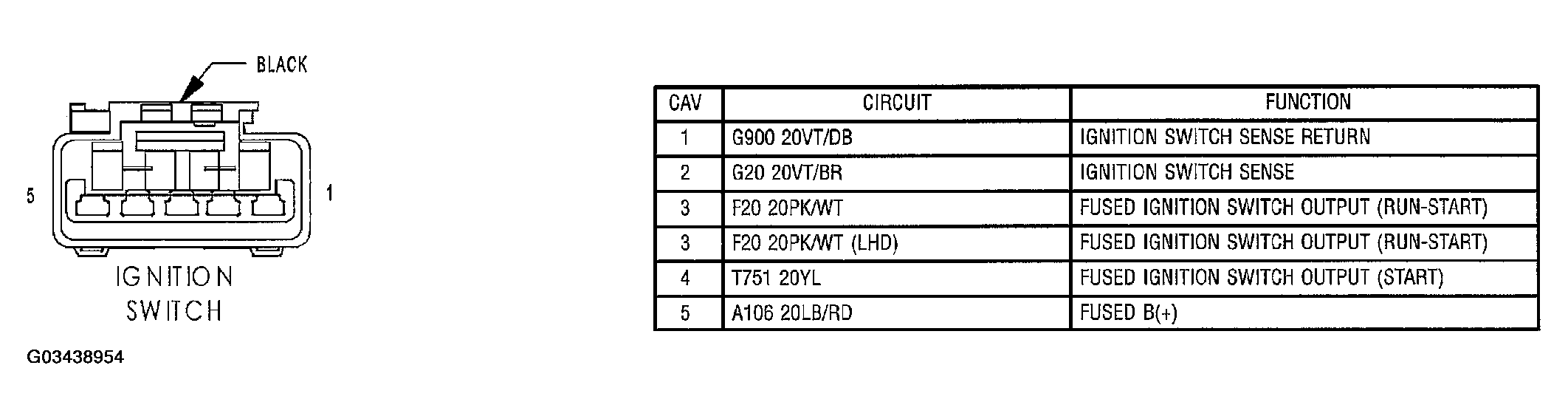

Fig 1: Ignition Switch Connector End View
G03438954Courtesy of DAIMLERCHRYSLER CORP.
