Power Liftgate Module Connector End View (C2)

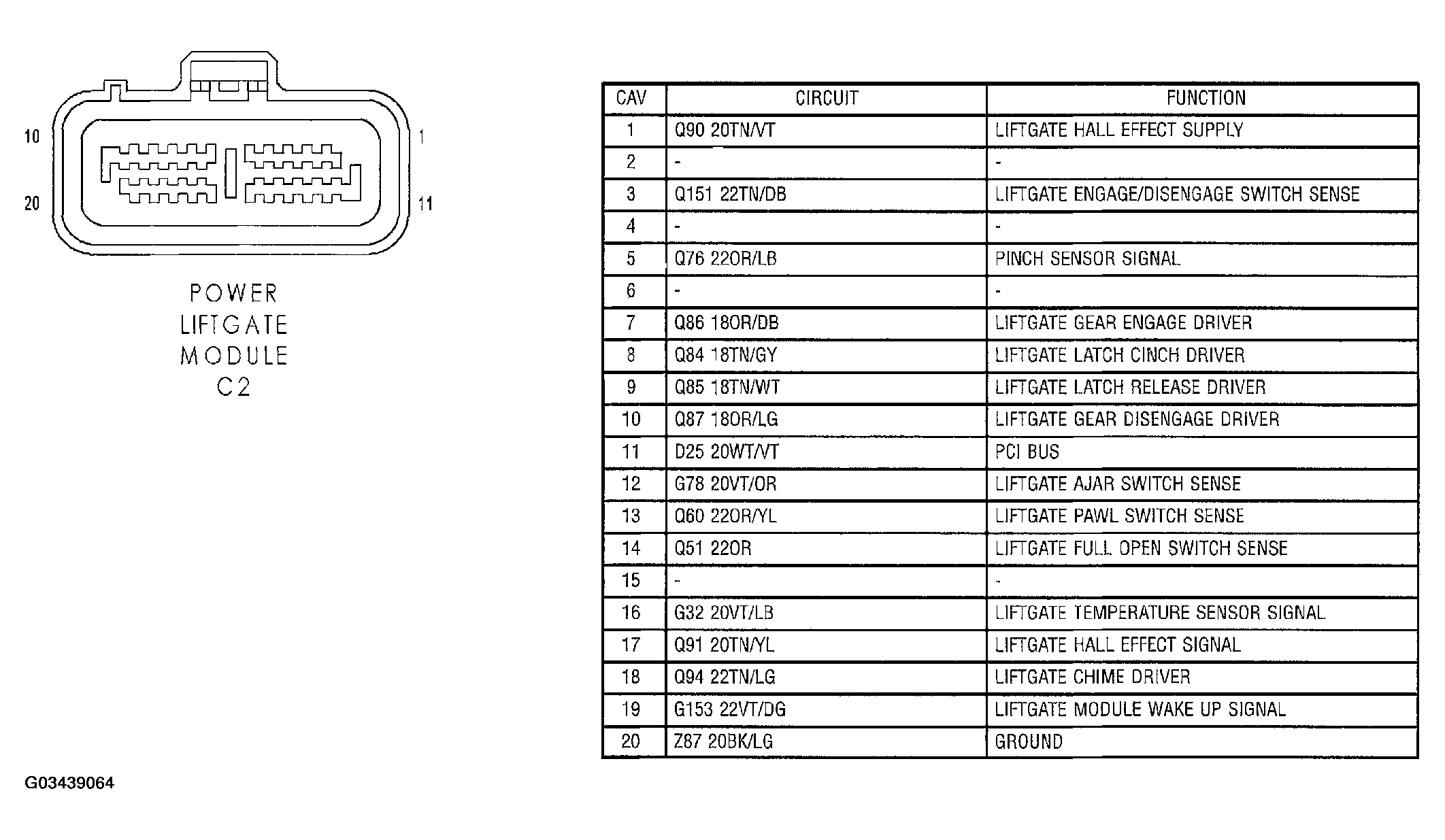

Fig 1: Power Liftgate Module Connector End View (C2)
G03439064Courtesy of DAIMLERCHRYSLER CORP.
