Powertrain Control Module (Next Generation Controller EATX Automatic Transmission) Connector End View (C4)

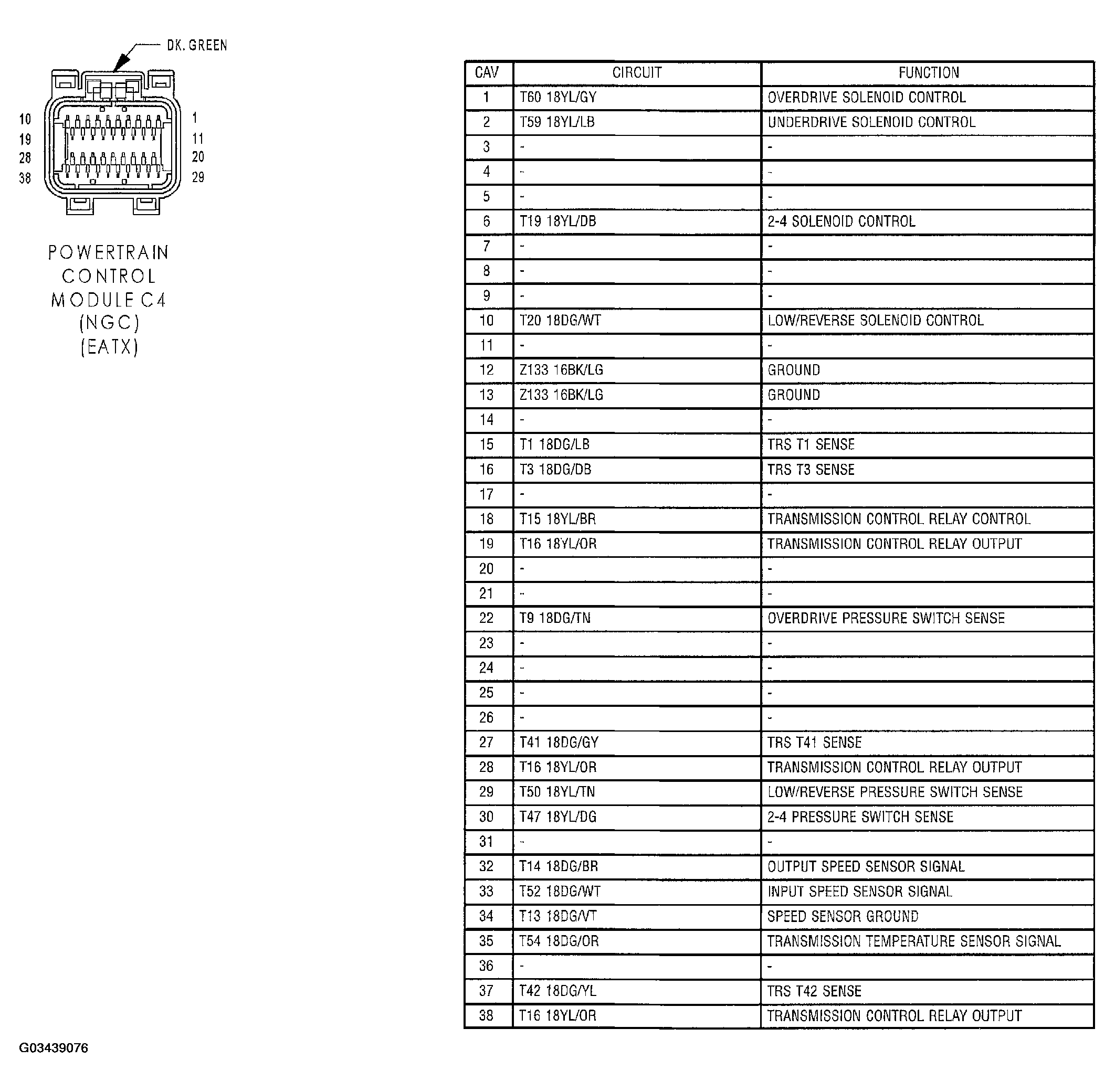

Fig 1: Powertrain Control Module (Next Generation Controller EATX Automatic Transmission) Connector End View (C4)
G03439076Courtesy of DAIMLERCHRYSLER CORP.
