Transmission Control Module (3.3L/3.8L) Connector End View
Transmission Control Module (3.3L/3.8L) Connector End View

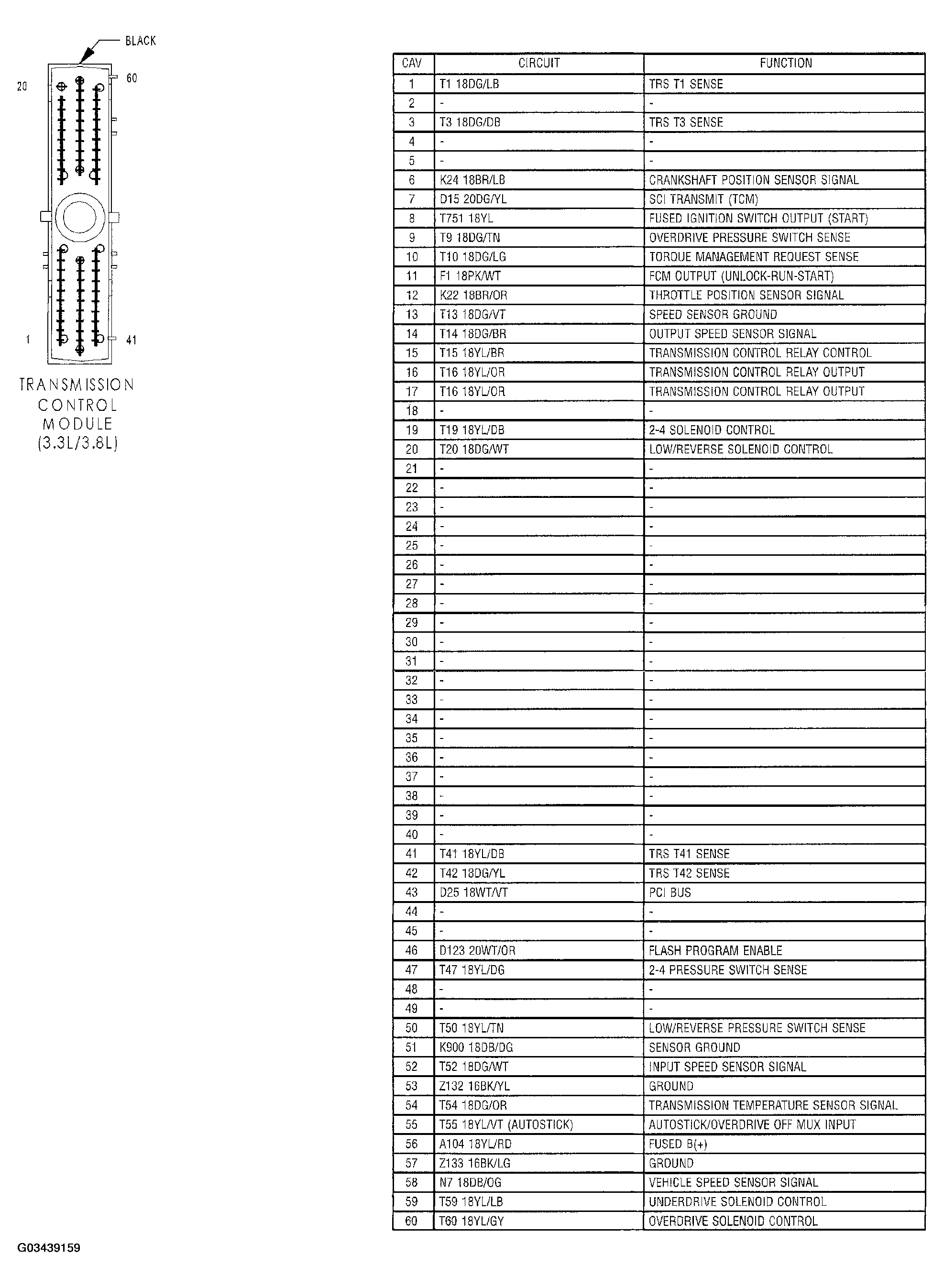

Fig 1: Transmission Control Module (3.3L/3.8L) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
