Front Blower Module (Automatic Temperature Control) Connector End View (C2)

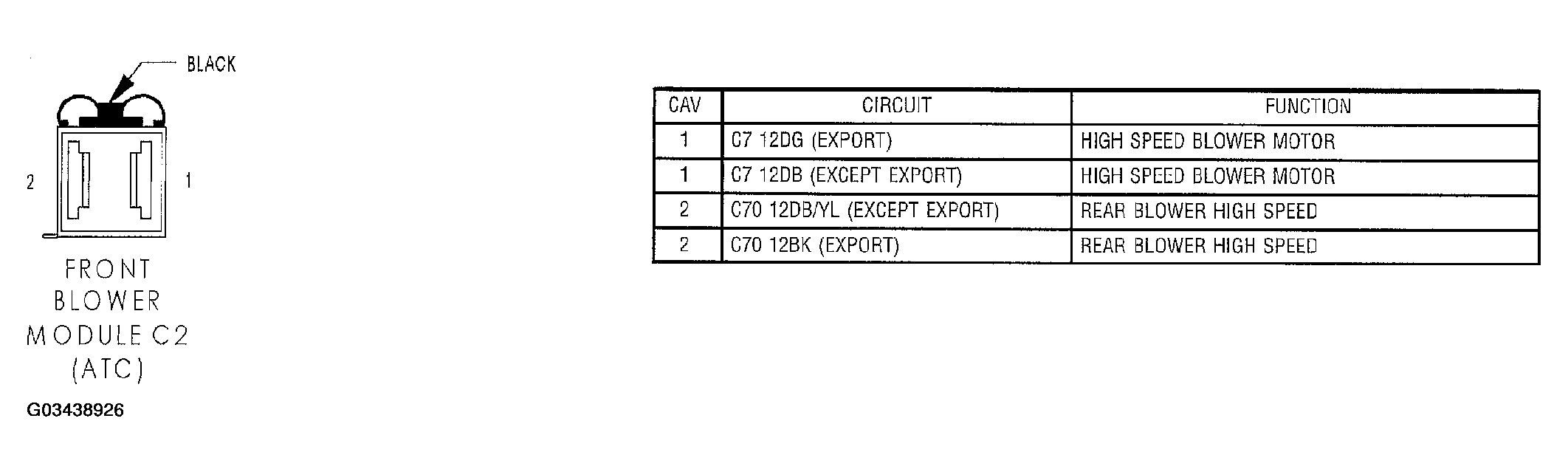

Fig 1: Front Blower Module (Automatic Temperature Control) Connector End View (C2)
G03438926Courtesy of DAIMLERCHRYSLER CORP.
