Adjustable Pedals Module (Except Export) Connector End View
Adjustable Pedals Module (Except Export) Connector End View

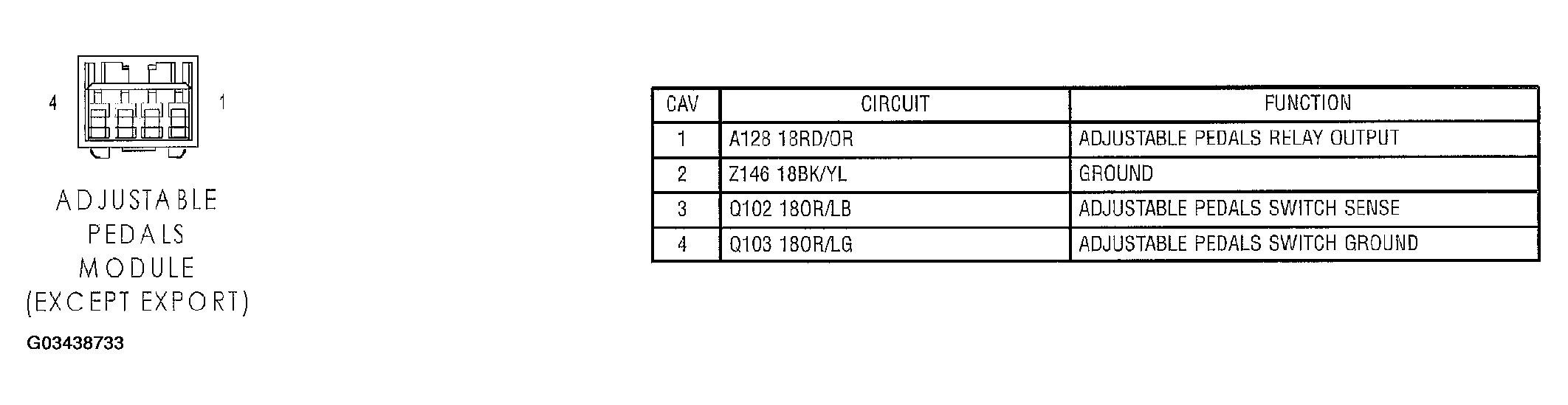

Fig 1: Adjustable Pedals Module (Except Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
