Fuse Identification Reference Chart
Fuse Identification Reference Chart

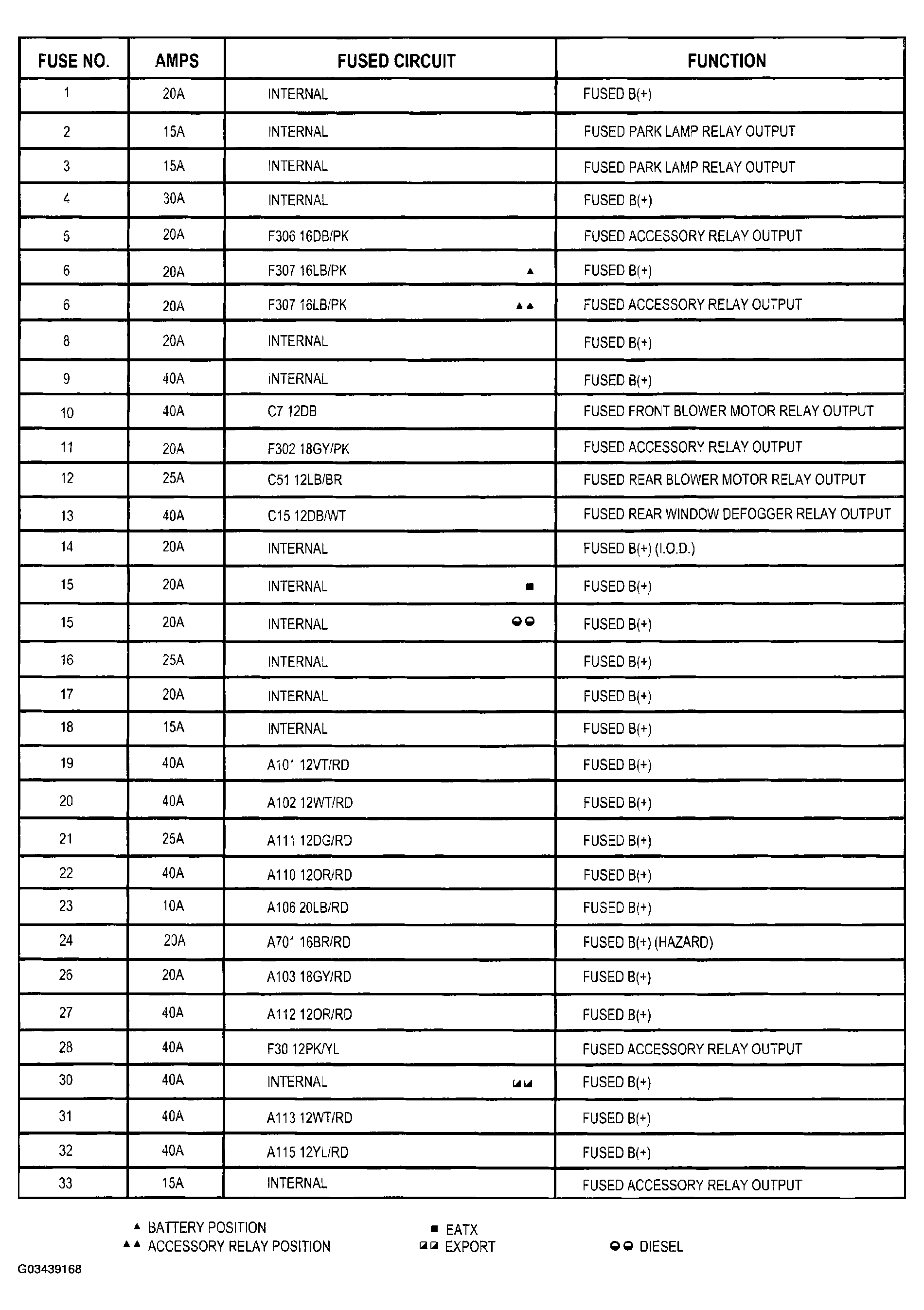

Fig 1: Fuse Identification Reference Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
