Powertrain Control Module C2 (SBEC)

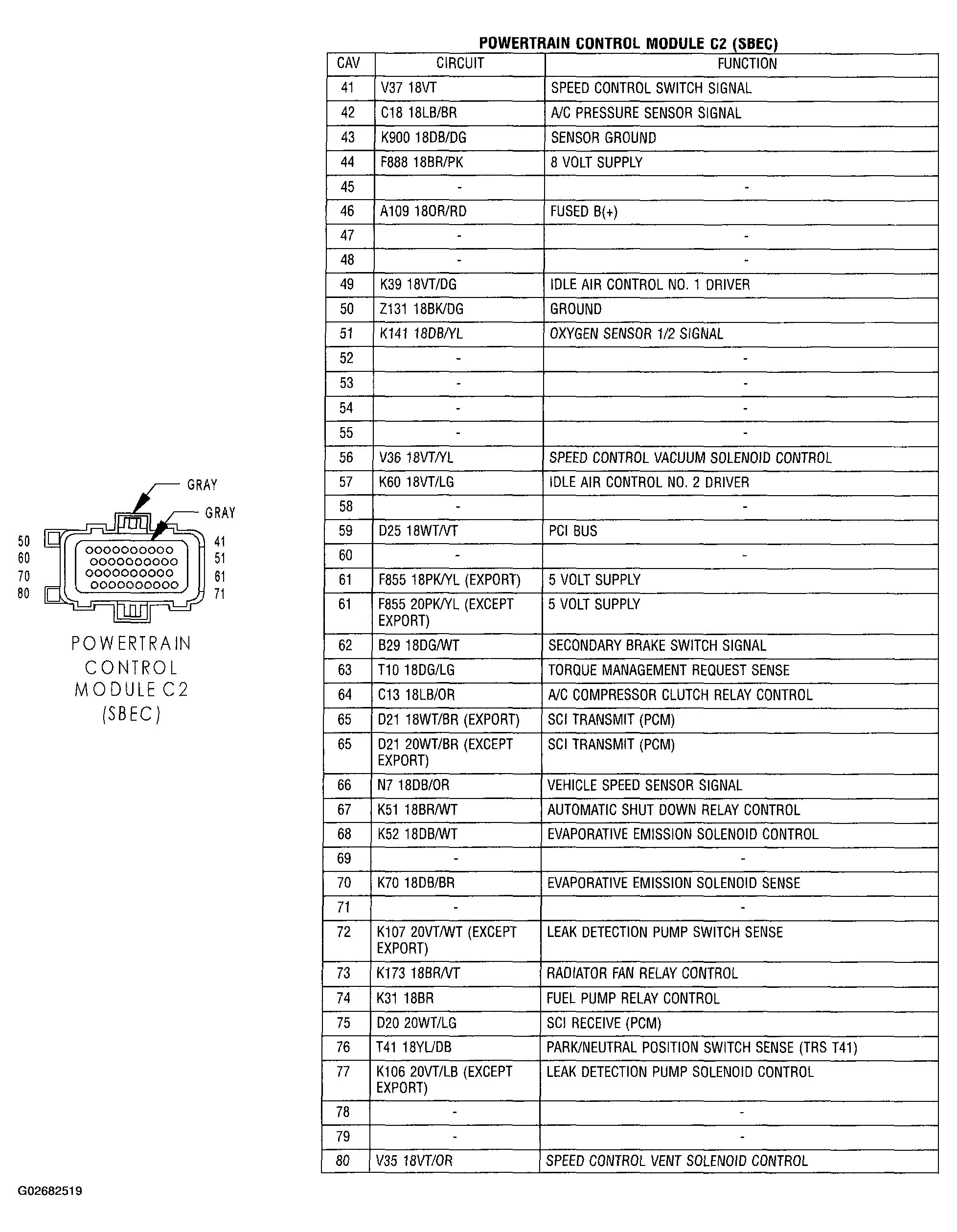

Fig 1: Identifying Powertrain Control Module C2 - Male (SBEC) Connector Pinouts
G02682519Courtesy of DAIMLERCHRYSLER CORP.
