Transmission Control Module (3.3L/3.8L)

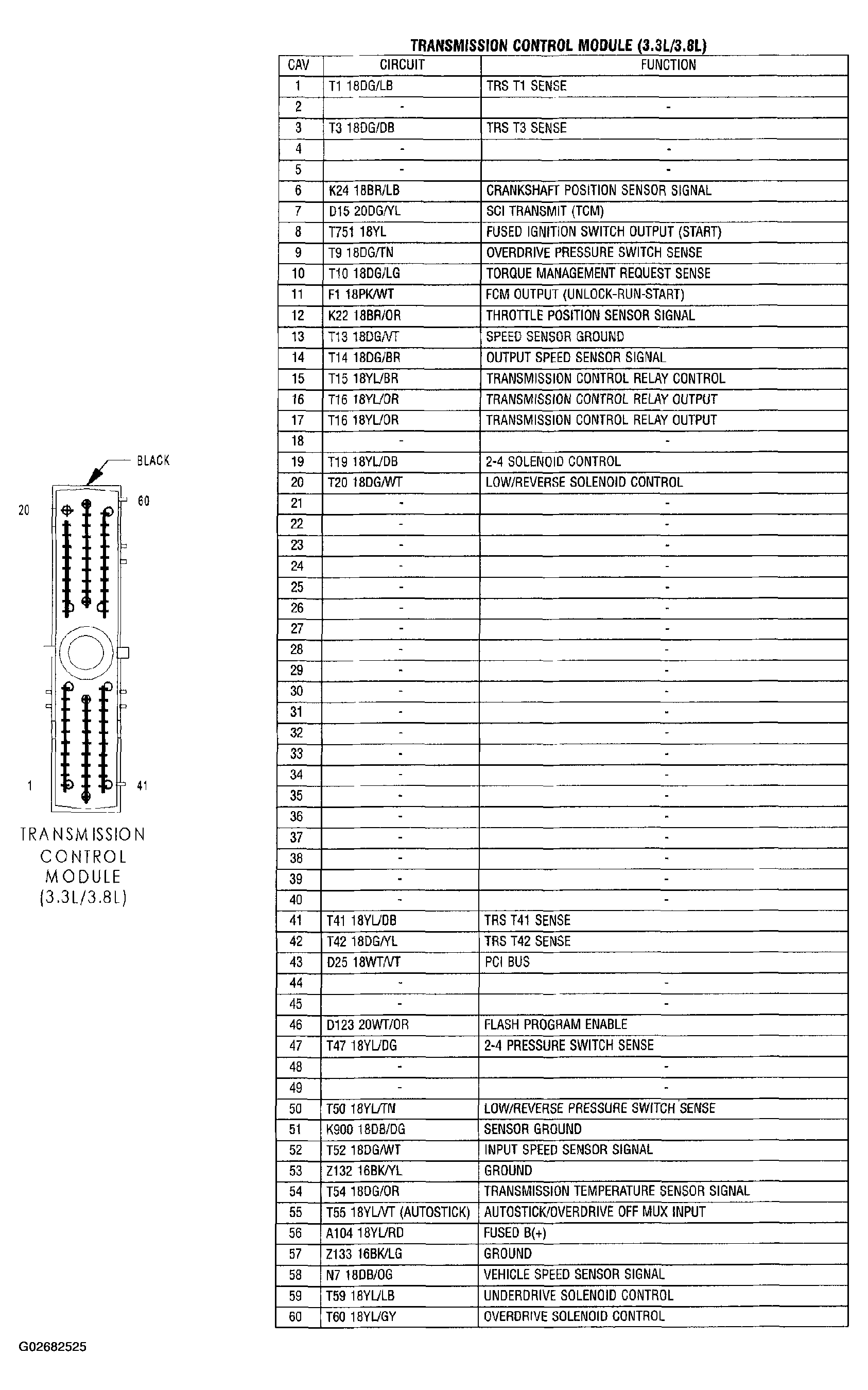

Fig 1: Identifying Transmission Control Module (3.3L/3.8L) Connector Pinouts
G02682525Courtesy of DAIMLERCHRYSLER CORP.
