Connector Identification

NOTE: See Fig 1- Fig 47 for connector identification.

Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals

G00094498

Courtesy of DAIMLERCHRYSLER CORPORATION

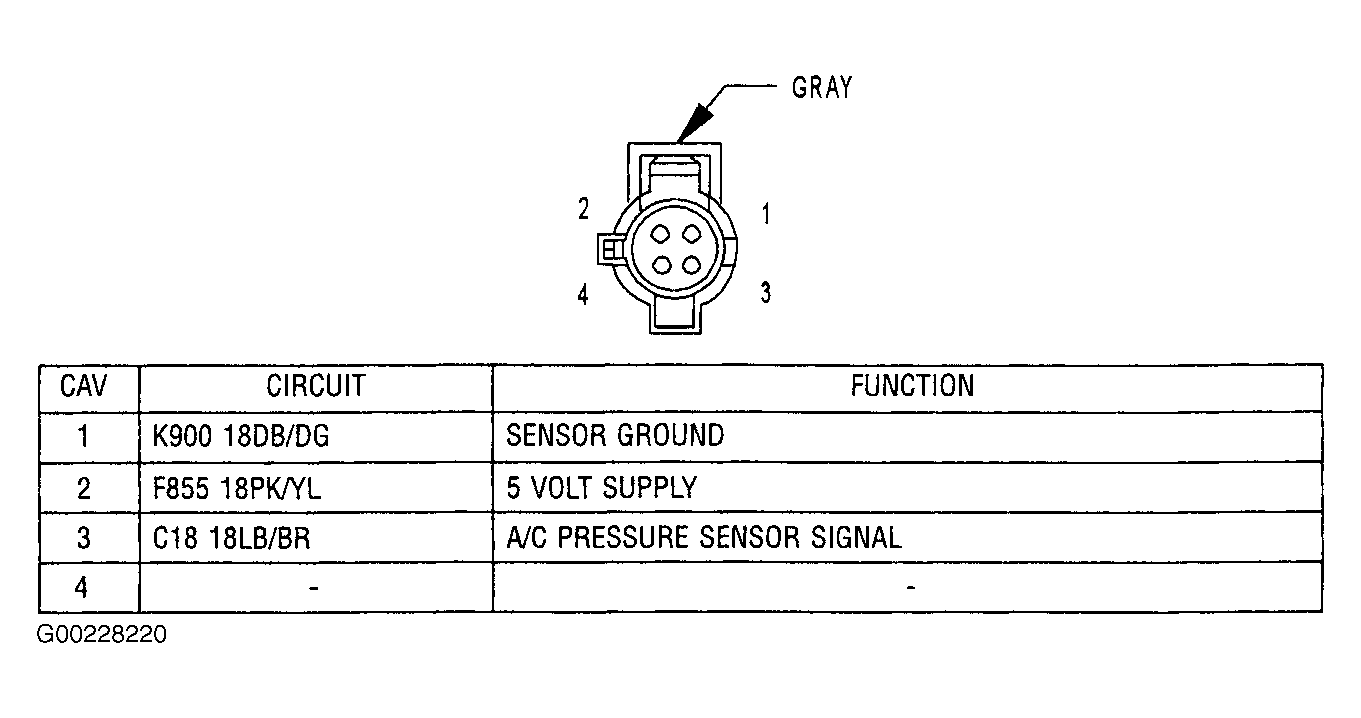

Fig 2: Identifying A/C Pressure Sensor Harness Connector Terminal

G00228220

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Ambient Air Temperature Sensor Harness Connector Terminals

G00114658

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Identifying Body Control Module Harness Connector Terminals

G00228174

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Brakelight Switch Harness Connector Terminals

G00094502

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector Terminals

G00094503

Courtesy of DAIMLERCHRYSLER CORPORATION

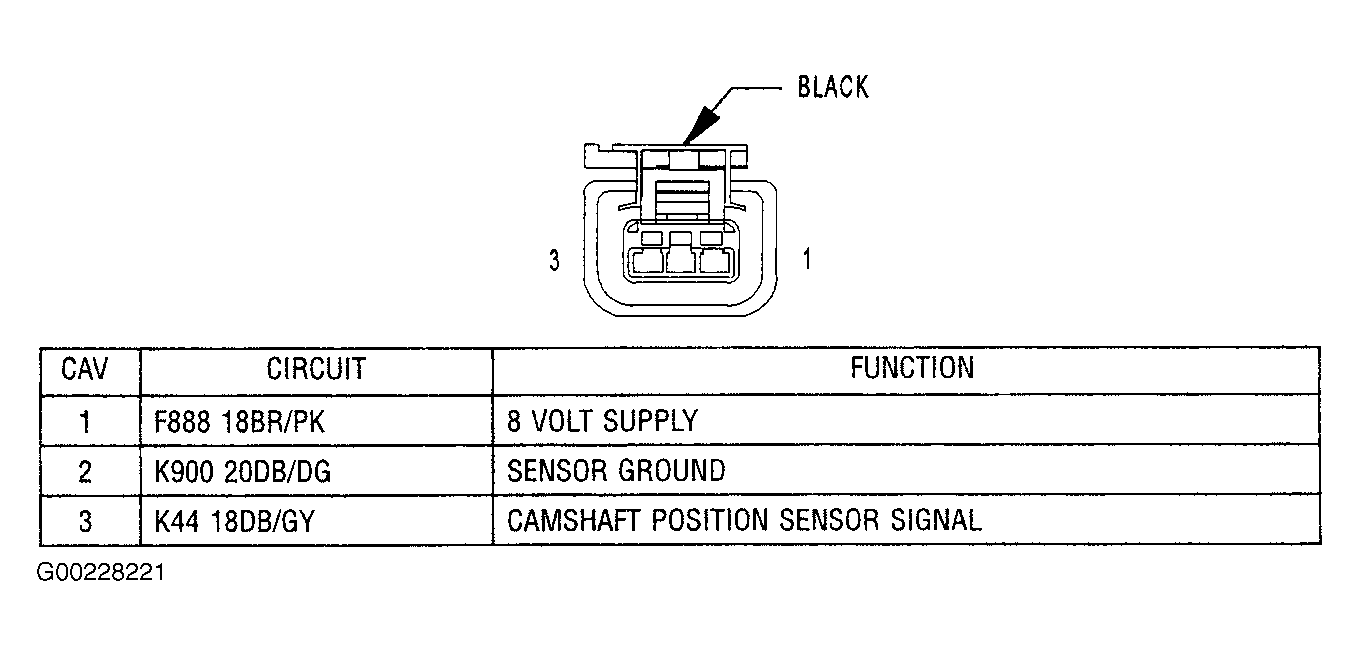

Fig 7: Identifying Camshaft Position Sensor Harness Connector Terminal

G00228221

Courtesy of CHRYSLER CORP.

Fig 8: Identifying Clutch Pedal Interlock Switch Harness Connector Terminals

G00228178

Courtesy of CHRYSLER CORP.

Fig 9: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00094505

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 10: Identifying Data Link Connector Harness Connector Terminals

G00228180

Courtesy of CHRYSLER CORP.

Fig 11: Identifying EGR Solenoid Harness Connector Terminals

G00094508

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 12: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals

G00094509

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 13: Identifying EVAP Purge Solenoid Harness Connector Terminals

G00094510

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 14: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00094511

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 15: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00094512

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 16: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00094513

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 17: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00094514

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 18: Identifying Fuel Injector No. 5 Harness Connector Terminals

G00094515

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 19: Identifying Fuel Injector No. 6 Harness Connector Terminals

G00094516

Courtesy of DAIMLERCHRYSLER CORPORATION

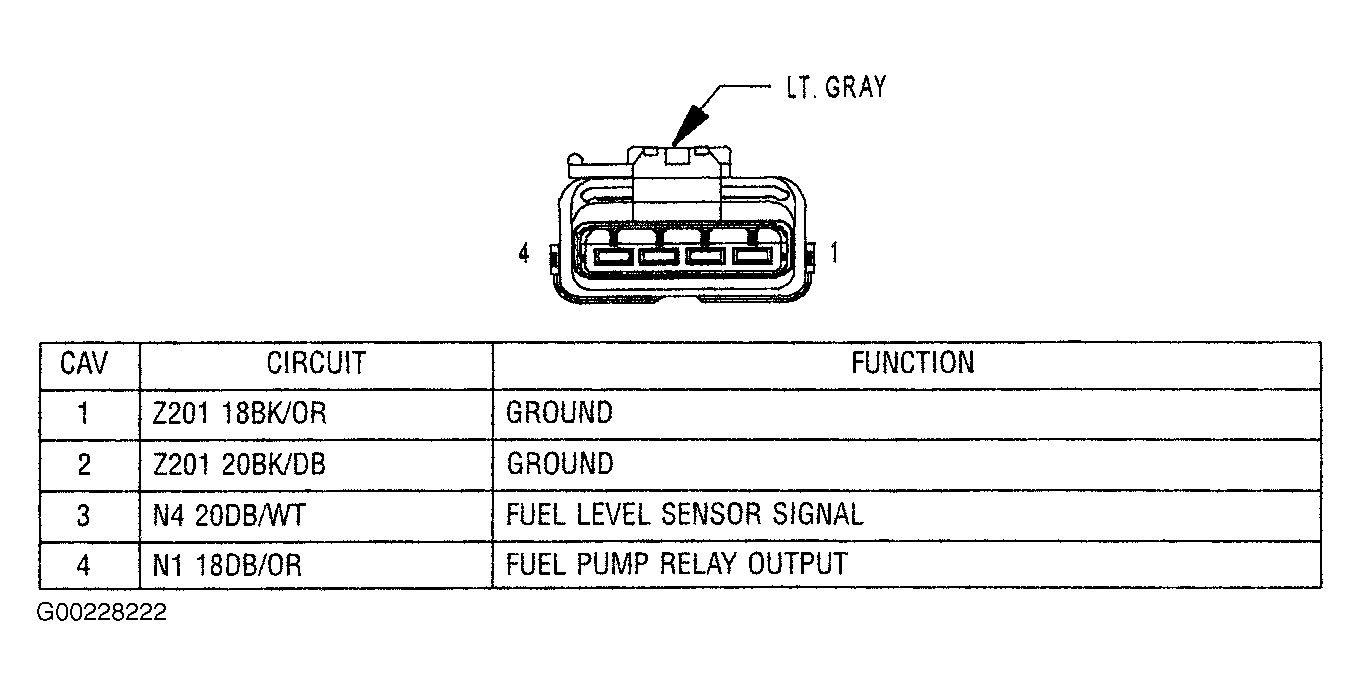

Fig 20: Identifying Fuel Pump Module Harness Connector Terminal

G00228222

Courtesy of CHRYSLER CORP.

Fig 21: Identifying Generator Harness Connector Terminals

G00112653

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 22: Identifying Idle Air Control Motor Harness Connector Terminals

G00112655

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 23: Identifying Ignition Coil Harness Connector Terminals

G00112658

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 24: Identifying Inlet Air Temperature Sensor Harness Connector Terminals

G00112659

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 25: Identifying Integrated Power Module C1 Harness Connector Terminals

G00112662

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 26: Identifying Integrated Power Module C2 Harness Connector Terminals

G00112663

Courtesy of DAIMLERCHRYSLER CORPORATION

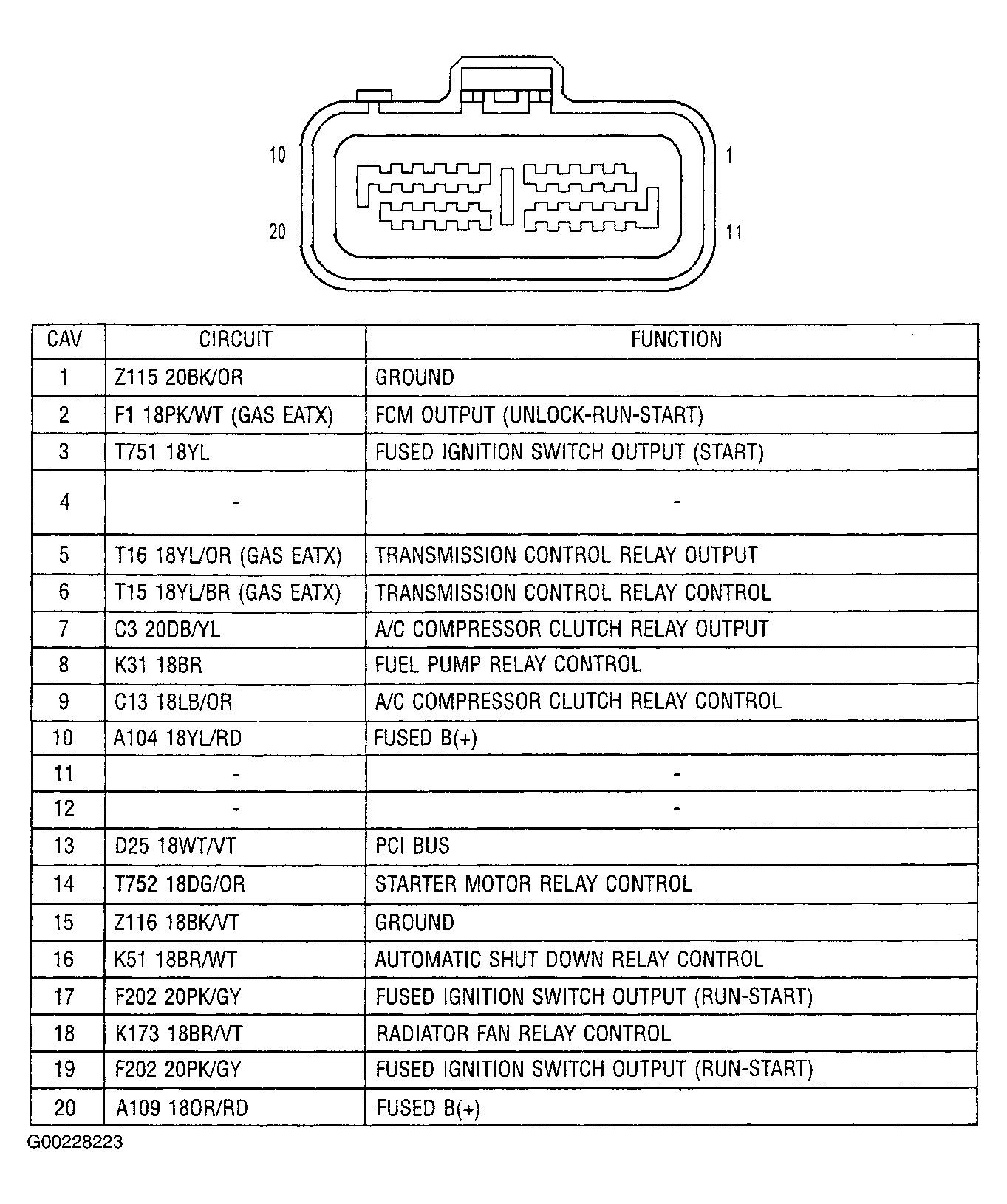

Fig 27: Identifying Integrated Power Module C3 Harness Connector Terminal

G00228223

Courtesy of CHRYSLER CORP.

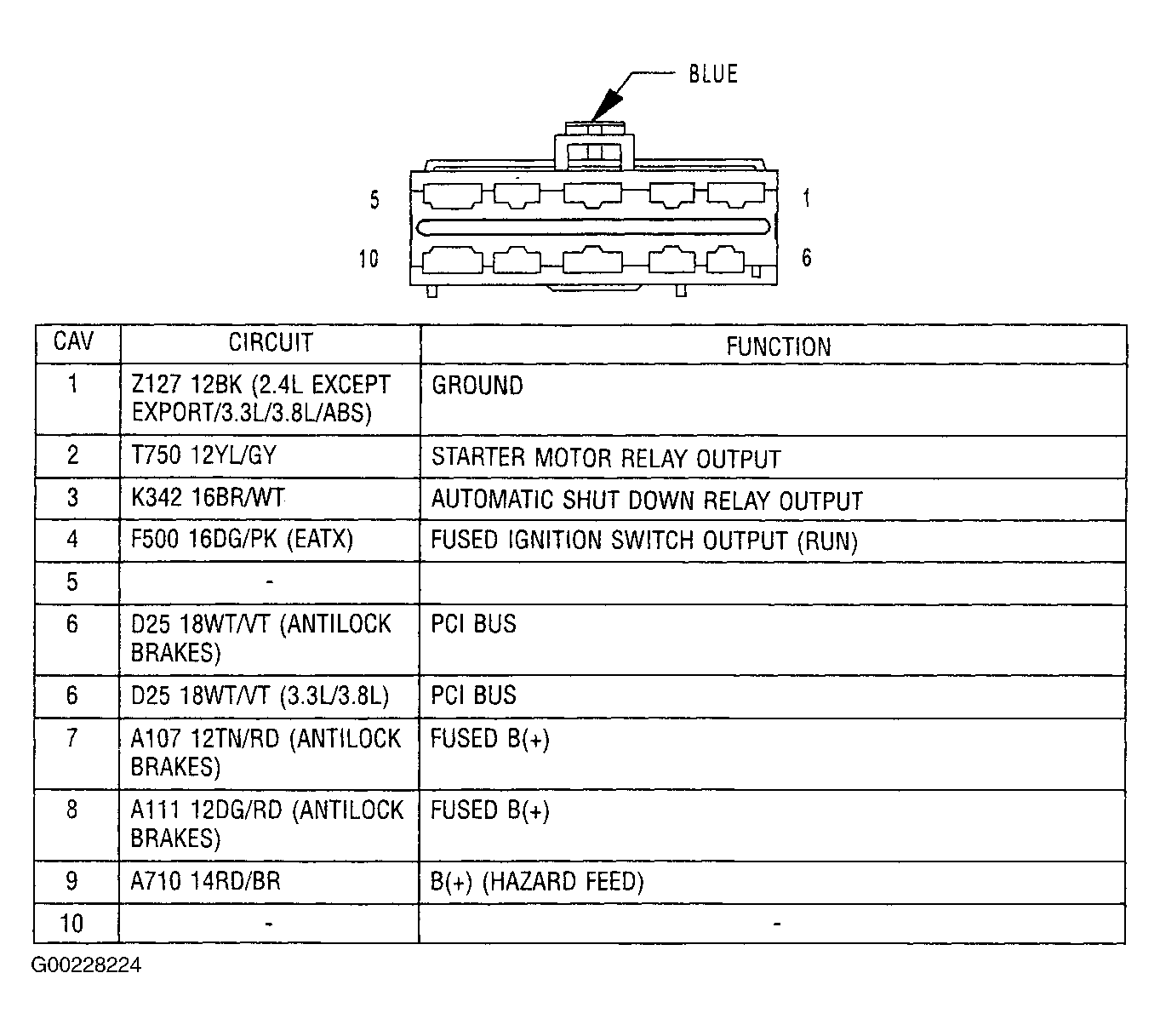

Fig 28: Identifying Integrated Power Module C4 Harness Connector Terminal

G00228224

Courtesy of CHRYSLER CORP.

Fig 29: Identifying Integrated Power Module C5 Harness Connector Terminals

G00112667

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 30: Identifying Integrated Power Module C6 Harness Connector Terminal

G00228225

Courtesy of CHRYSLER CORP.

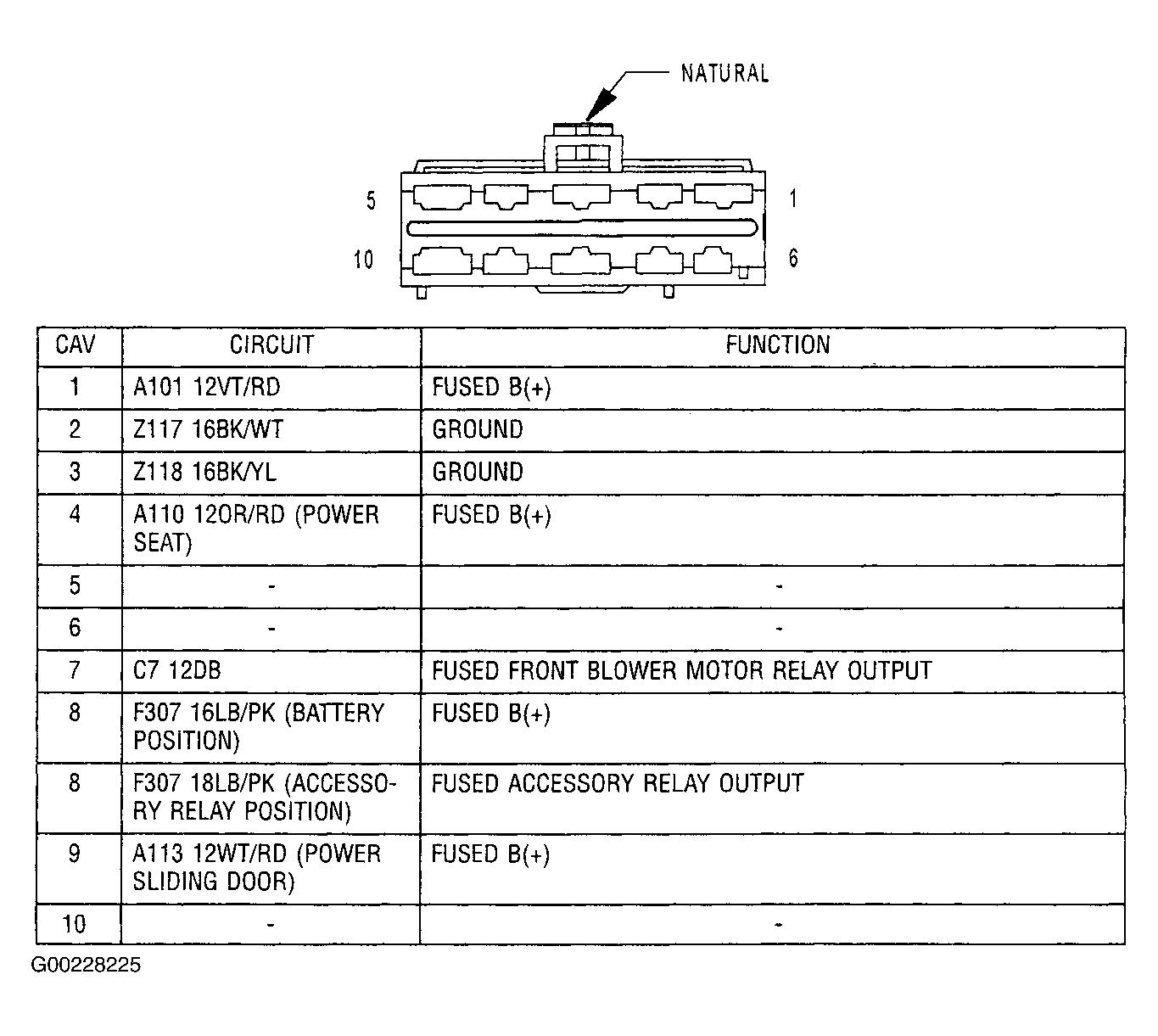

Fig 31: Identifying Integrated Power Module C7 Harness Connector Terminal

G00228226

Courtesy of CHRYSLER CORP.

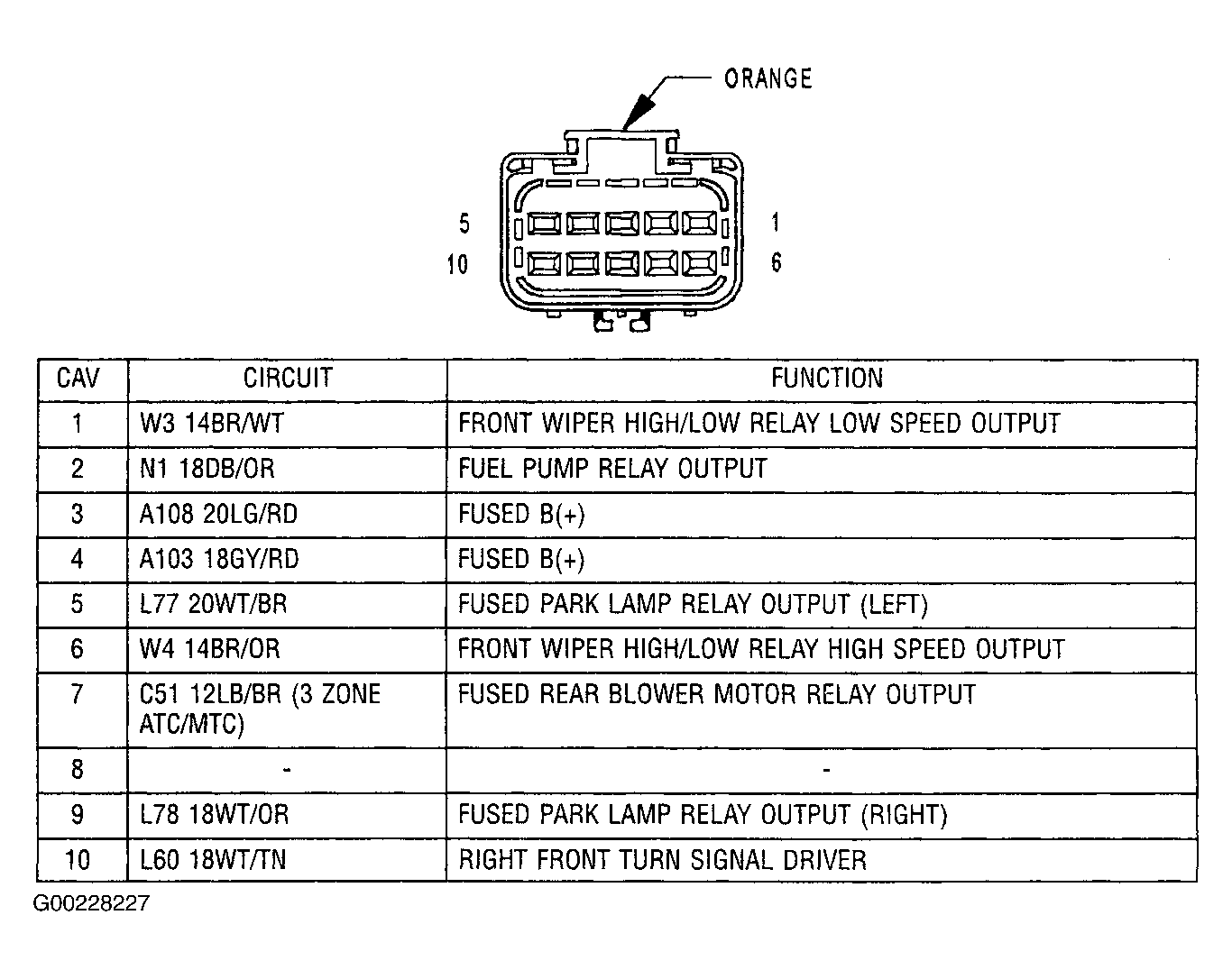

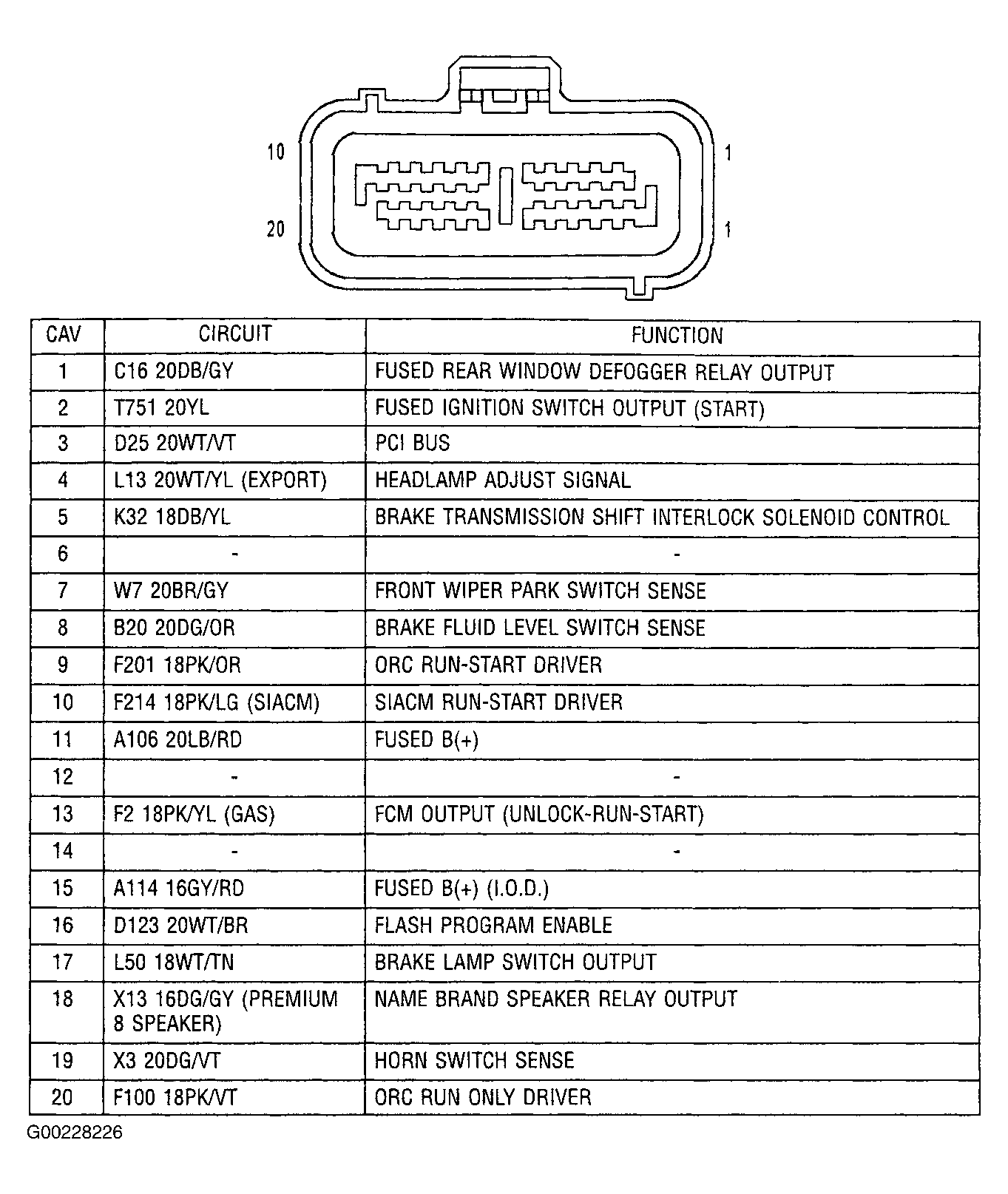

Fig 32: Identifying Integrated Power Module C8 Harness Connector Terminal

G00228227

Courtesy of CHRYSLER CORP.

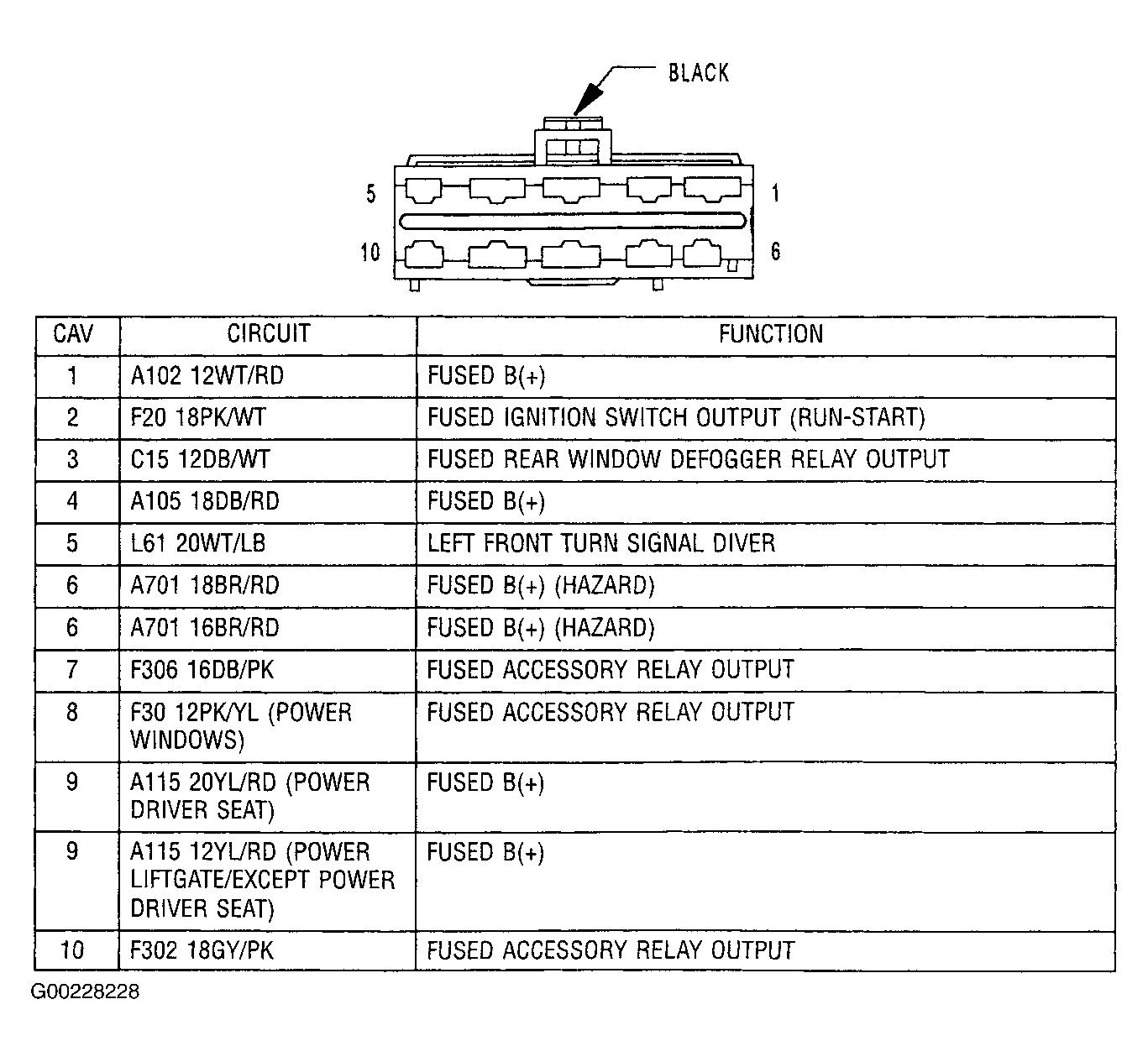

Fig 33: Identifying Integrated Power Module C9 Harness Connector Terminal

G00228228

Courtesy of CHRYSLER CORP.

Fig 34: Identifying Knock Sensor Harness Connector Terminals

G00112672

Courtesy of DAIMLERCHRYSLER CORPORATION

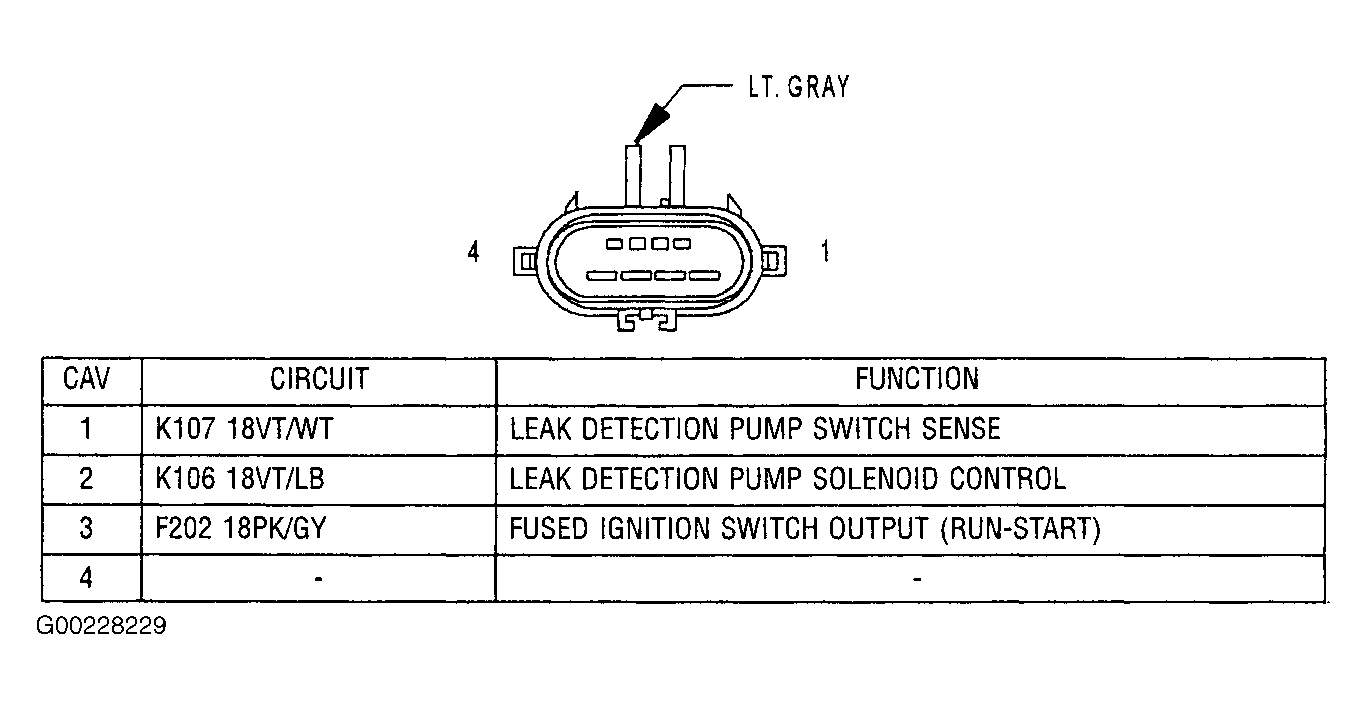

Fig 35: Identifying Leak Detection Pump Harness Connector Terminal

G00228229

Courtesy of CHRYSLER CORP.

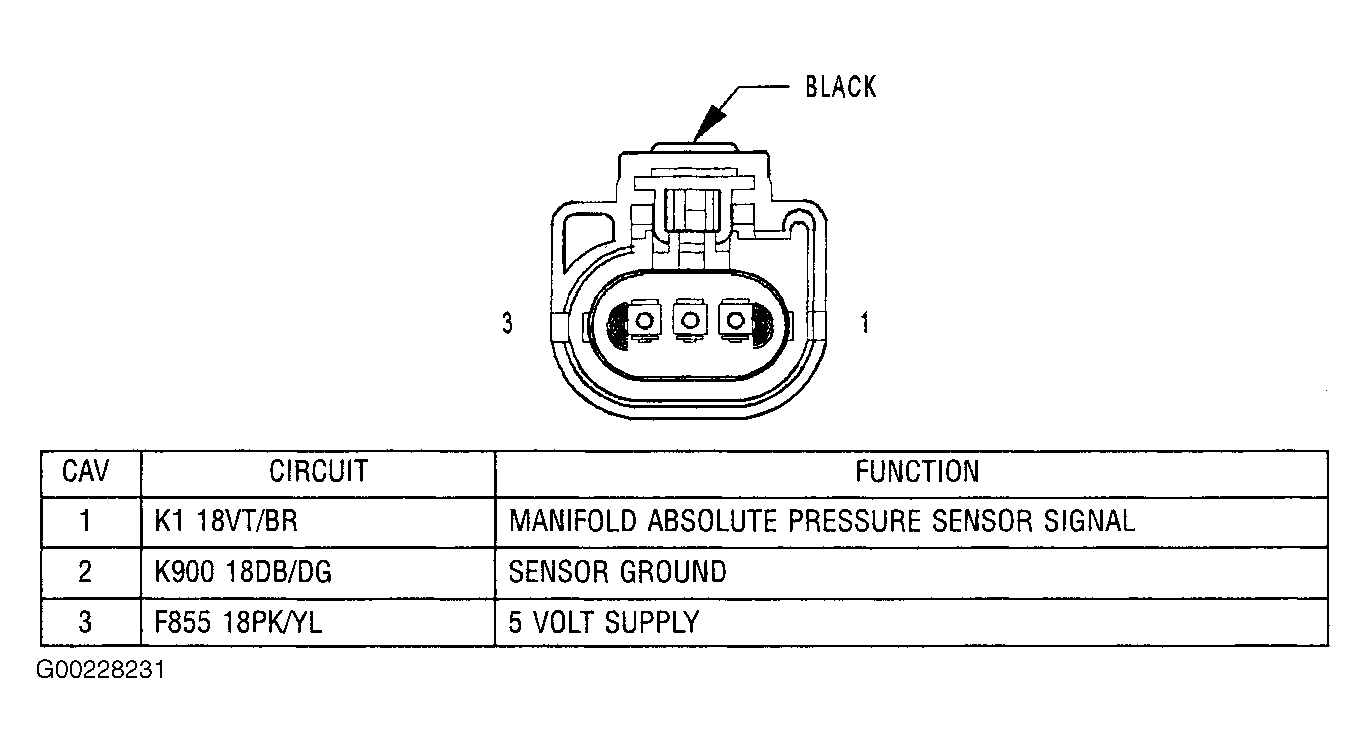

Fig 36: Identifying MAP Sensor Harness Connector Terminal

G00228231

Courtesy of CHRYSLER CORP.

Fig 37: Identifying PCM C1 Harness Connector Terminal

G00228232

Courtesy of CHRYSLER CORP.

Fig 38: Identifying PCM C2 Harness Connector Terminal

G00228233

Courtesy of CHRYSLER CORP.

Fig 39: Identifying Throttle Position Sensor Harness Connector Terminal

G00228237

Courtesy of CHRYSLER CORP.

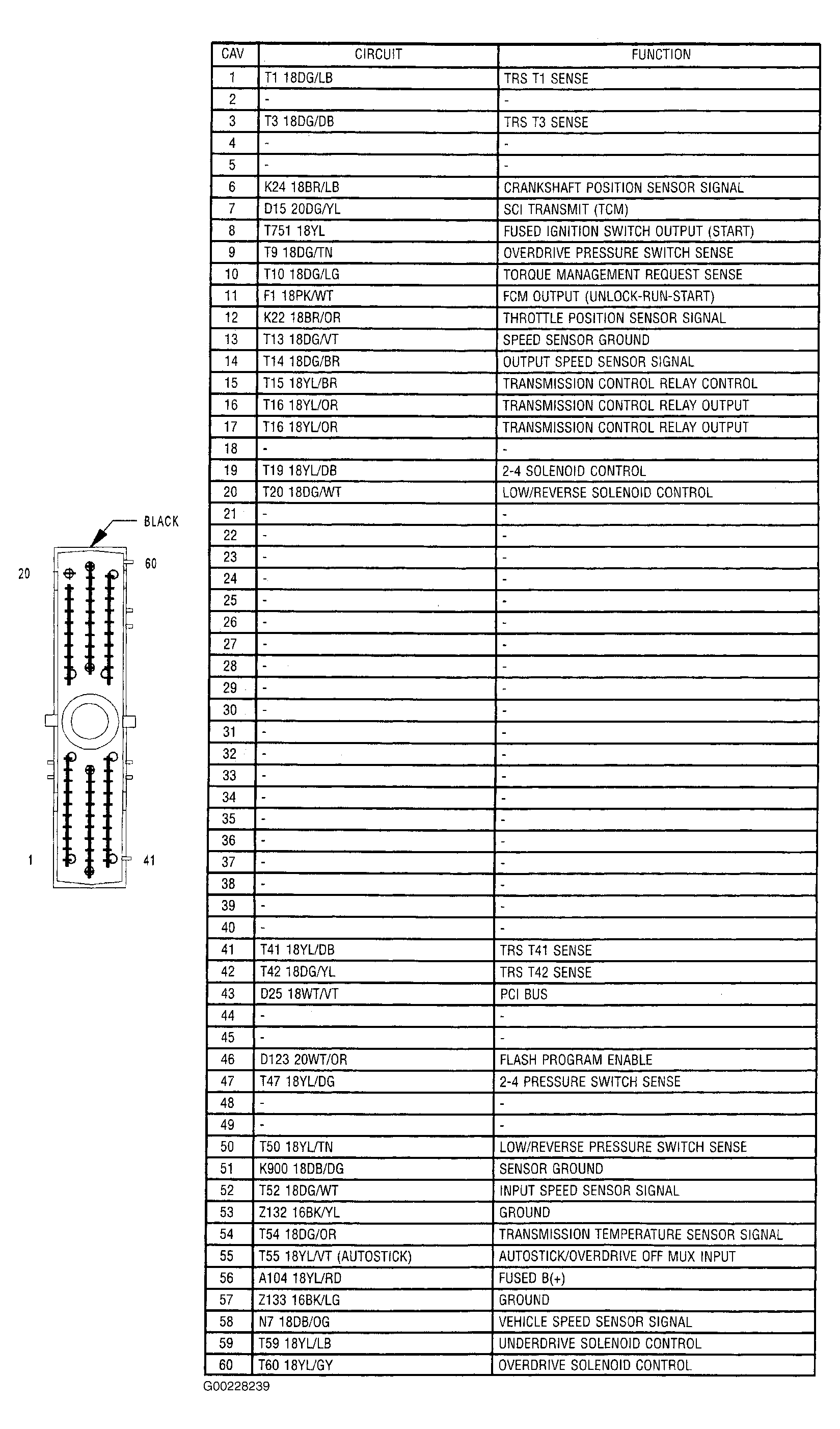

Fig 40: Identifying Transmission Control Module Harness Connector Terminal

G00228239

Courtesy of CHRYSLER CORP.

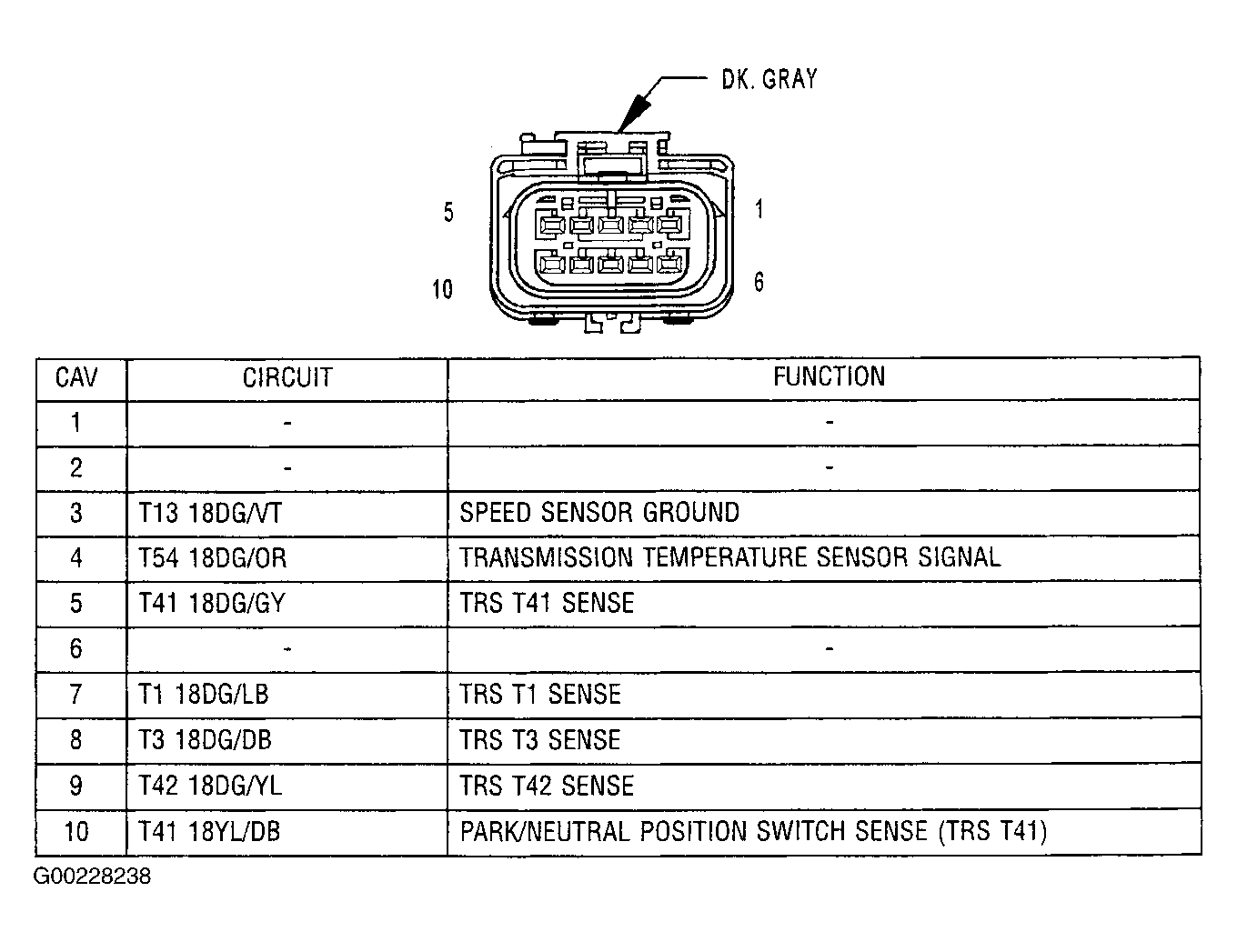

Fig 41: Identifying Transmission Range Sensor Harness Connector Terminal

G00228238

Courtesy of CHRYSLER CORP.

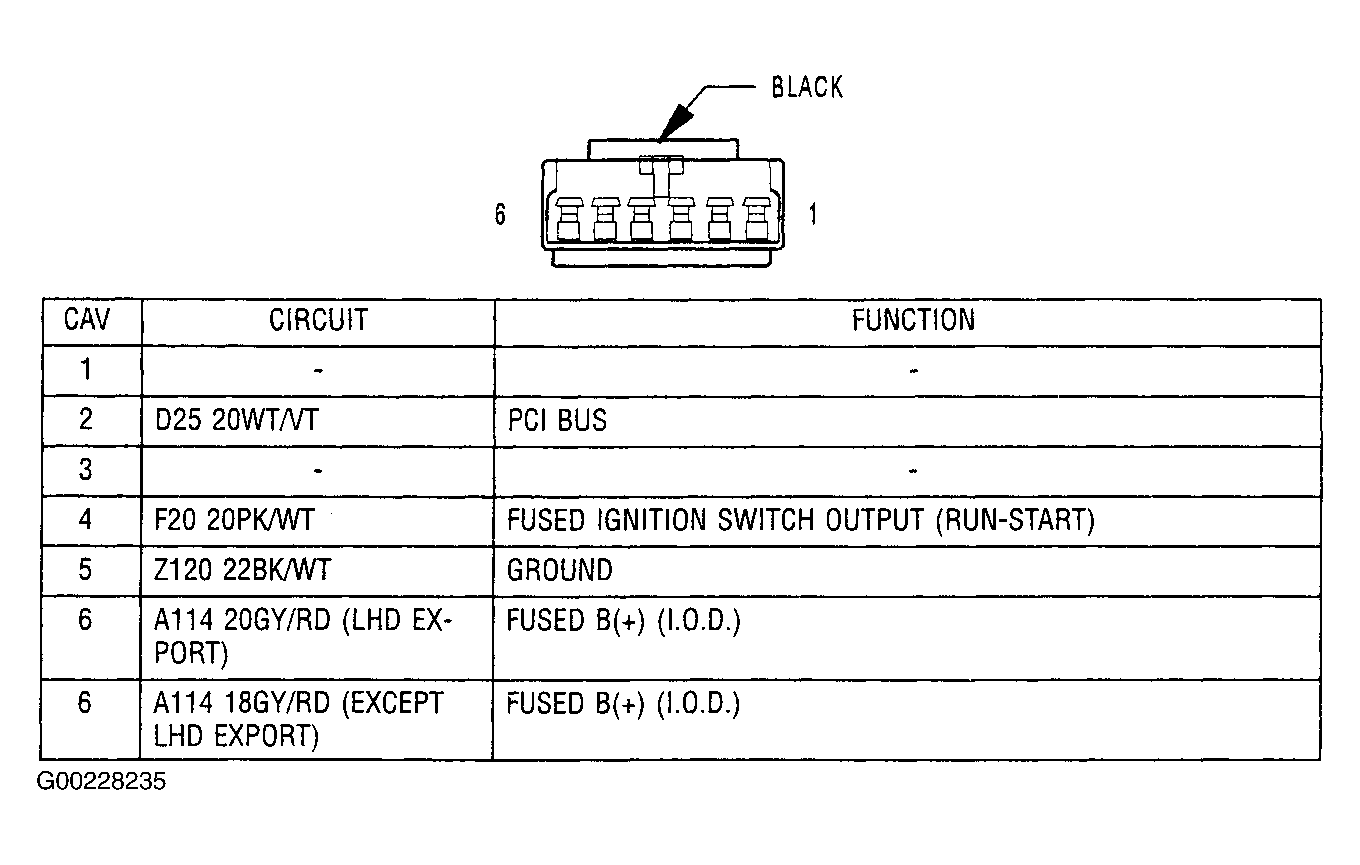

Fig 42: Identifying SKIM Harness Connector Terminals

G00228235

Courtesy of CHRYSLER CORP.

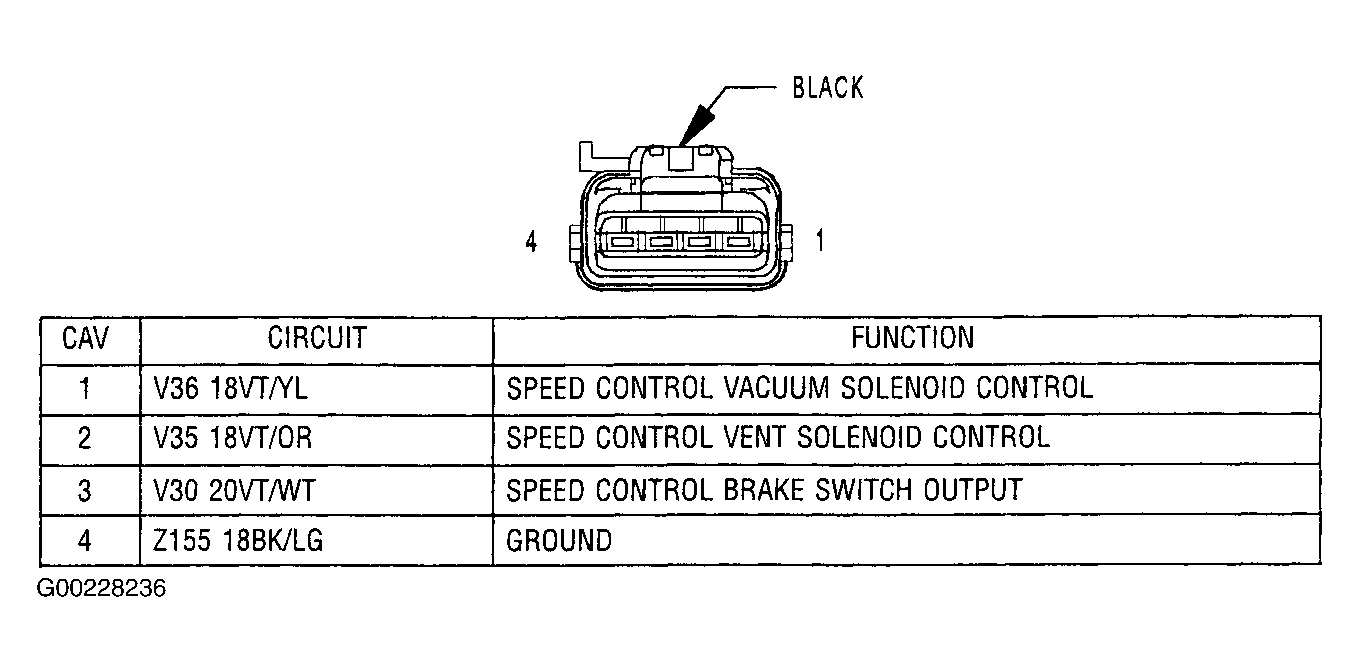

Fig 43: Identifying Speed Control Servo Harness Connector Terminal

G00228236

Courtesy of CHRYSLER CORP.

Fig 44: Identifying Speed Control Switch (Left) Harness Connector Terminal

G00228230

Courtesy of CHRYSLER CORP.

Fig 45: Identifying Speed Control Switch (Right) Harness Connector Terminal

G00228234

Courtesy of CHRYSLER CORP.

Fig 46: Identifying 1/1 O2 Sensor Harness Connector Terminals

G00112675

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 47: Identifying 1/2 O2 Sensor Harness Connector Terminals

G00112676

Courtesy of DAIMLERCHRYSLER CORPORATION
