Power Liftgate Module Connector End View (C1)

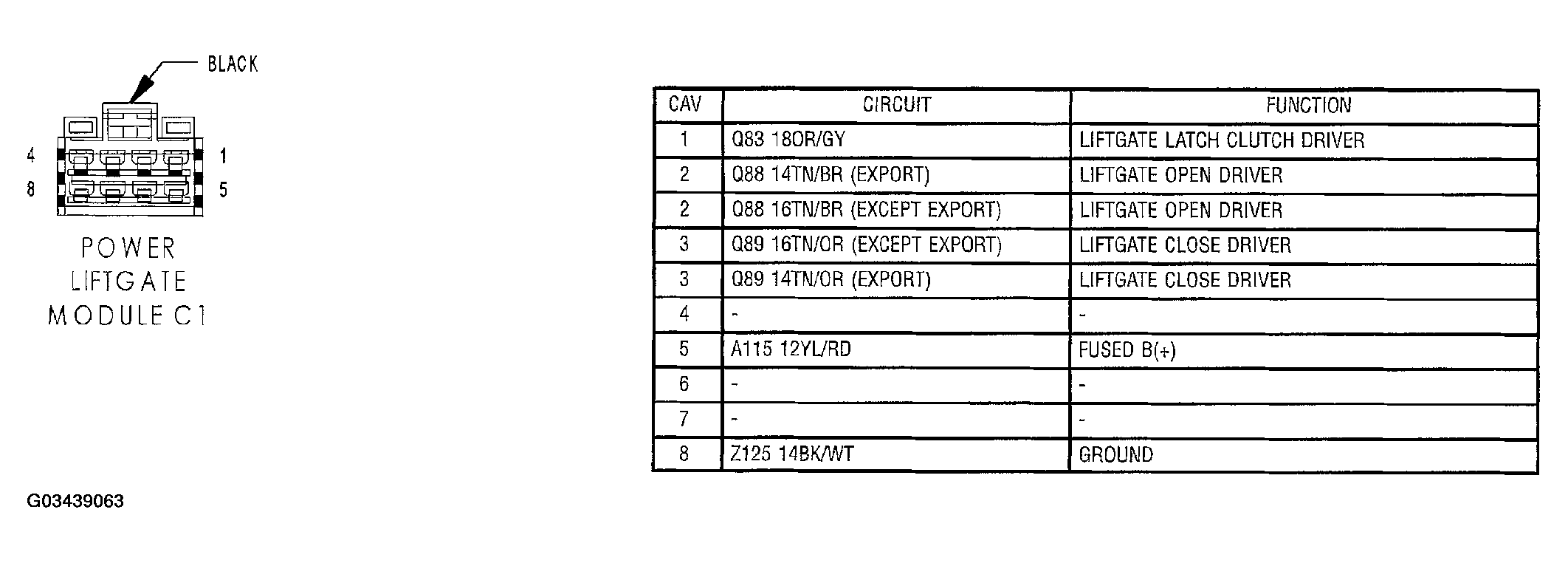

Fig 1: Power Liftgate Module Connector End View (C1)
G03439063Courtesy of DAIMLERCHRYSLER CORP.
